S2VNA and S4VNA SCPI Programming Manual
172
DISP:WIND:SPL
DISPlay:WINDow <Ch> :SPLit <numeric>
DISPlay:WINDow <Ch> :SPLit?
Description
Sets or reads out the layout of the graph in the channel window.
The graph layout in the channel window see below.
(command/query)
Target
Channel <Ch>,
<Ch>={[1]|2|...16}
Parameter
<numeric> the number of the graph layout from 1 to 16
Out of Range
Sets the value of the limit, which is closer to the specified value.
Query Response
<numeric>
Preset Value
1
Equivalent Softkeys
Display > Allocate Traces

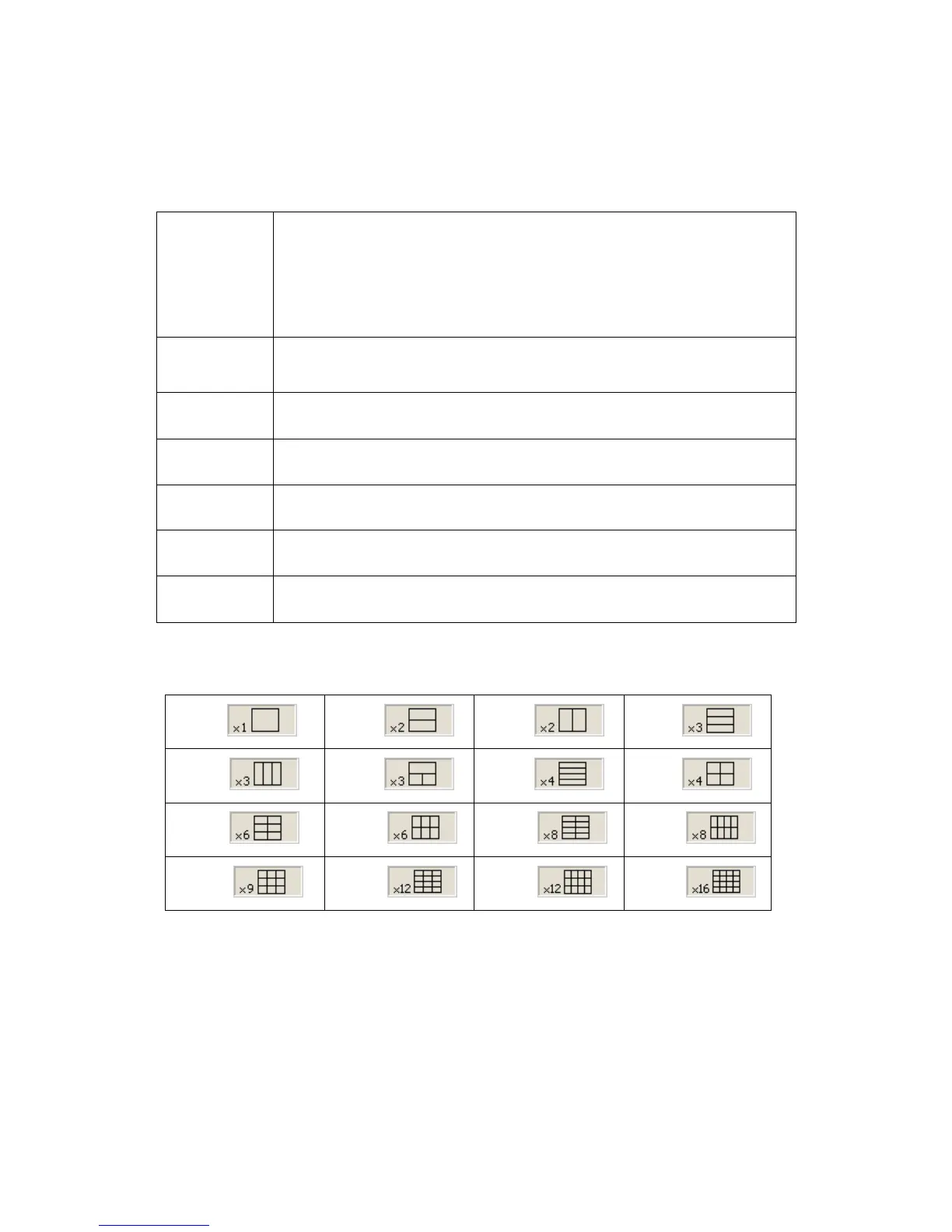

Graph layout in the channel window
1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
