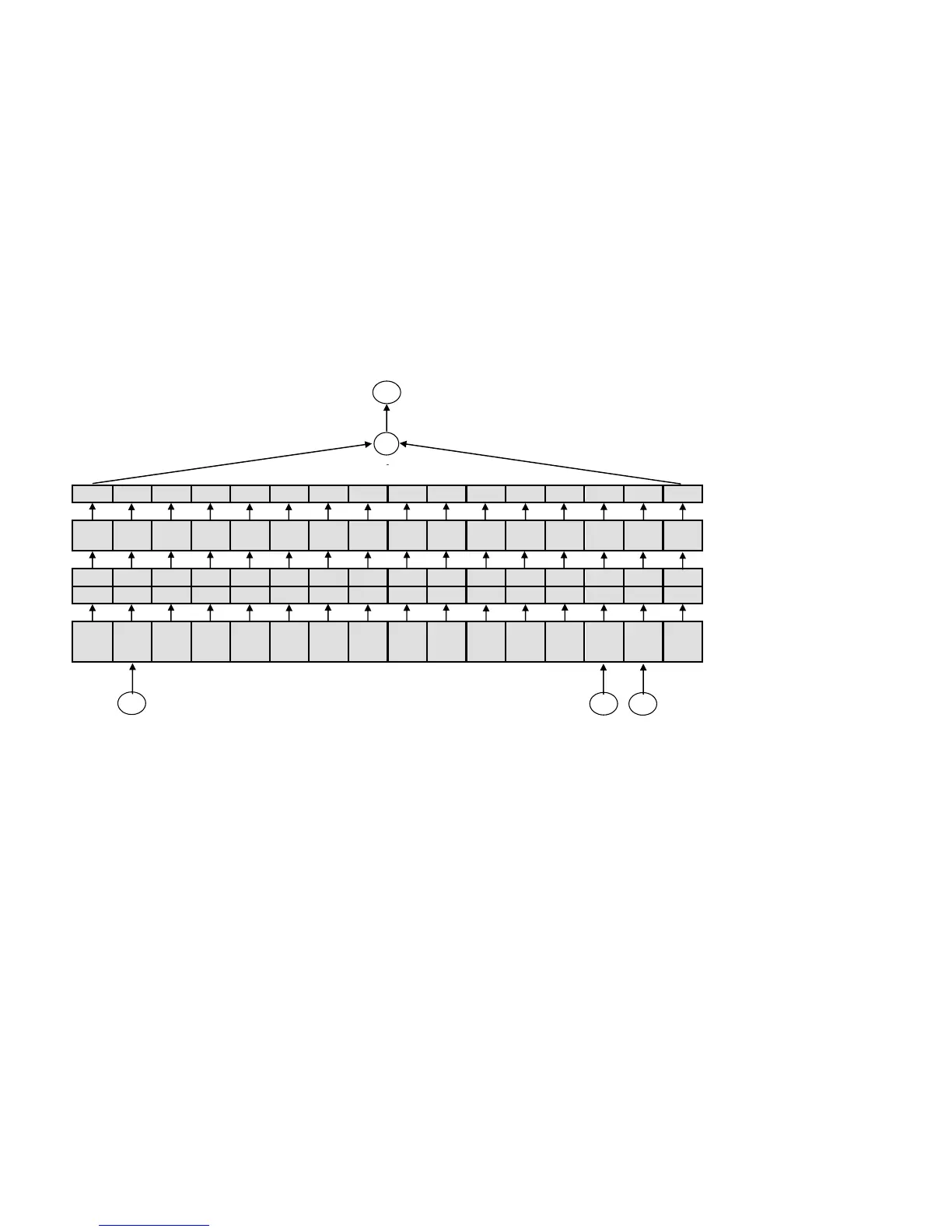

Appendix 1. IEE488.2 Status Reporting System
. . .
Questionable Limit Status Enable
Register
STAT:QUES:LIM:ENAB
Questionable Limit Status Event
Register
STAT:QUES:LIM?
Positive Transition Filter
STAT:QUES:LIM:PTR
Negative Transition Filter
STAT:QUES:LIM:NTR
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
Chan 14
Limit Test
FAIL
Chan 13
Limit Test
FAIL
Chan 12
Limit Test
FAIL
Chan 11
Limit Test
FAIL
Chan 10
Limit Test
FAIL
Chan 9
Limit Test
FAIL
Chan 8
Limit Test
FAIL
Chan 7
Limit Test
FAIL
Chan 6
Limit Test
FAIL
Chan 5
Limit Test
FAIL
Chan 4
Limit Test
FAIL
Chan 3
Limit Test
FAIL
Chan 2
Limit Test
FAIL
Chan 1
Limit Test
FAIL
Questionable Limit Status Condition
Register
STAT:QUES:LIM:COND?
16384
4
2
.
.
.
.
.
.
.
.
.
.
.
Σ
d1
d2
d14
b
