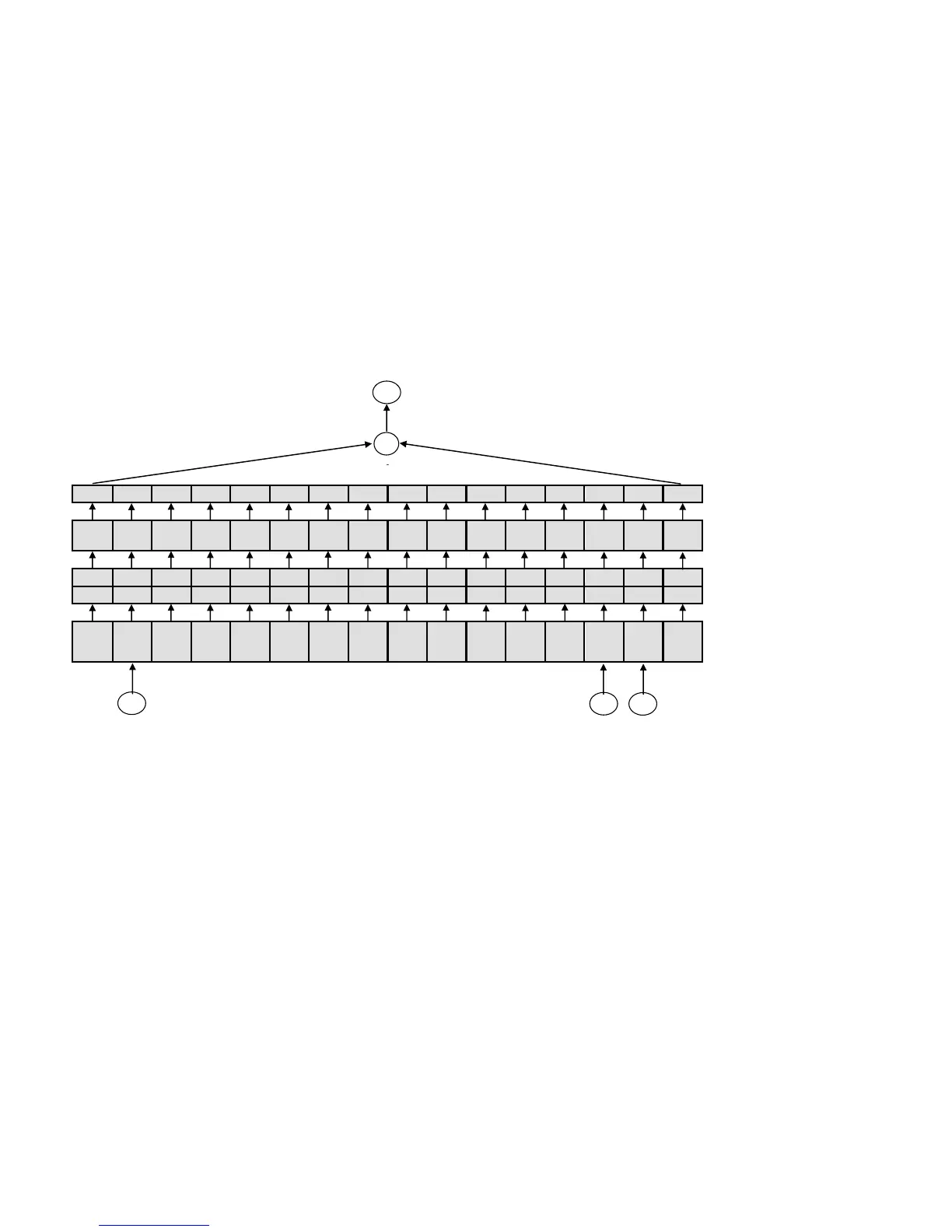

Appendix 1. IEE488.2 Status Reporting System
. . .
Questionable Ripple Limit Status
Enable Register
STAT:QUES:RLIM:ENAB
Questionable Ripple Limit Status Event
Register
STAT:QUES:RLIM?
Positive Transition Filter
STAT:QUES:RLIM:PTR
Negative Transition Filter
STAT:QUES:RLIM:NTR
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
Chan 14
Ripple
Test FAIL
Chan 13
Ripple
Test FAIL
Chan 12
Ripple
Test FAIL
Chan 11
Ripple
Test FAIL
Chan 10
Ripple
Test FAIL
Chan 9
Ripple
Test FAIL
Chan 8
Ripple
Test FAIL
Chan 7
Ripple
Test FAIL
Chan 6
Ripple
Test FAIL
Chan 5
Ripple
Test FAIL
Chan 4
Ripple
Test FAIL
Chan 3
Ripple
Test FAIL
Chan 2
Ripple
Test FAIL
Chan 1
Ripple
Test FAIL
Questionable Ripple Limit Status
Condition Register
STAT:QUES:RLIM:COND?
16384
4
2
.
.
.
.
.
.
.
.
.
.
.
Σ
e1
e2
e14
c
