PCU (PHOTOCONDUCTOR UNITS) August, 2006
3-44
16. At the rear of the development unit, attach the lock gear [A] to the development
roller shaft.
17. At the front, attach the long special tool [B].
Important
• The D-shaped hole of the long special tool [B] must fit over the D-shaped
shaft tip [C].
18. If the hole of the special long tool and shaft are not aligned, rotate the D-
shaped shaft tip [C] in the direction of the arrow [D] to position the shaft so the
special long tool can be attached.
Important
• Always rotate the shaft in the direction of the arrow [D]. To avoid damaging
the entrance seal, never rotate the lock gear in the opposite direction.

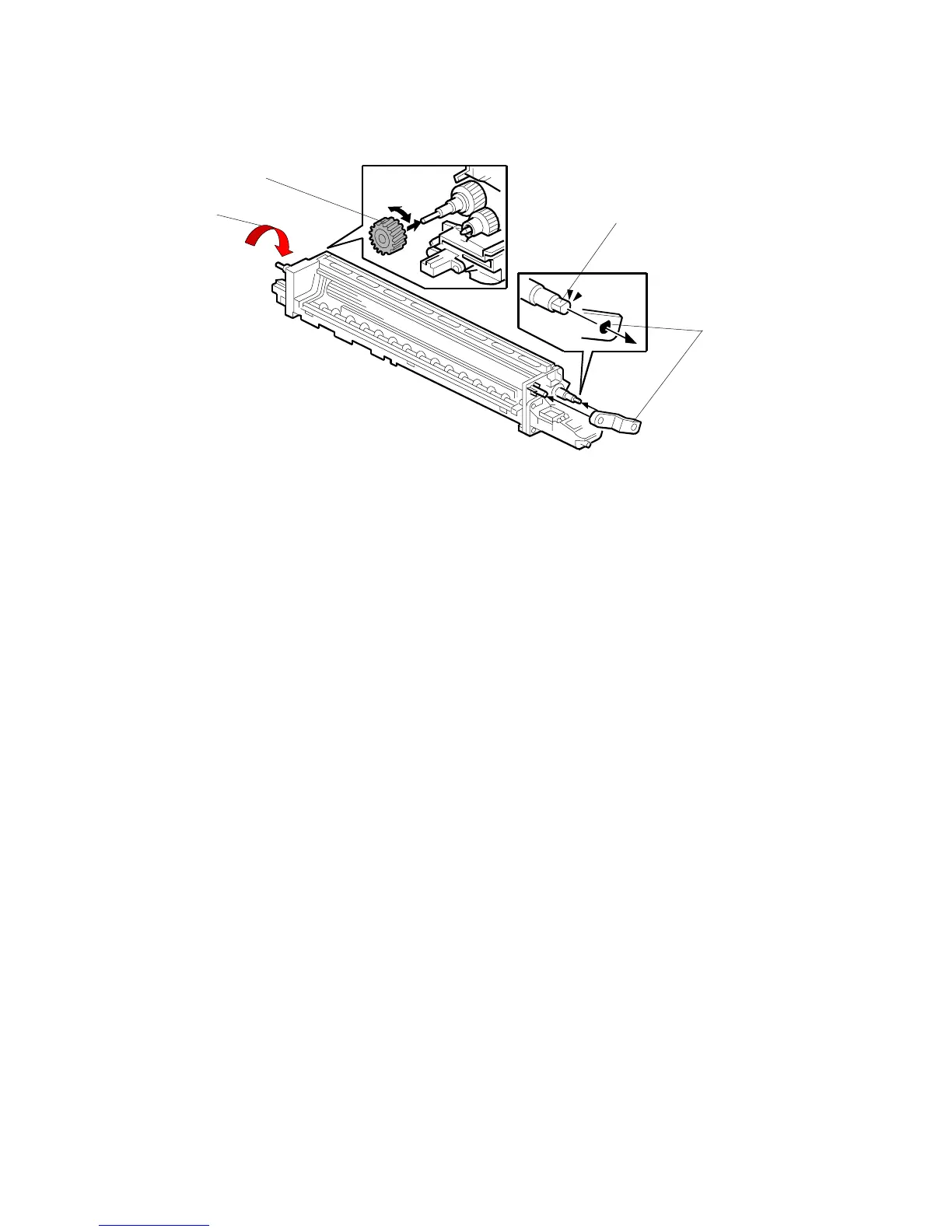

B132R219.WMF
[A]
