Toshiba e-STUDIO4500c Service Manual

PCU (PHOTOCONDUCTOR UNITS) August, 2006
3-46

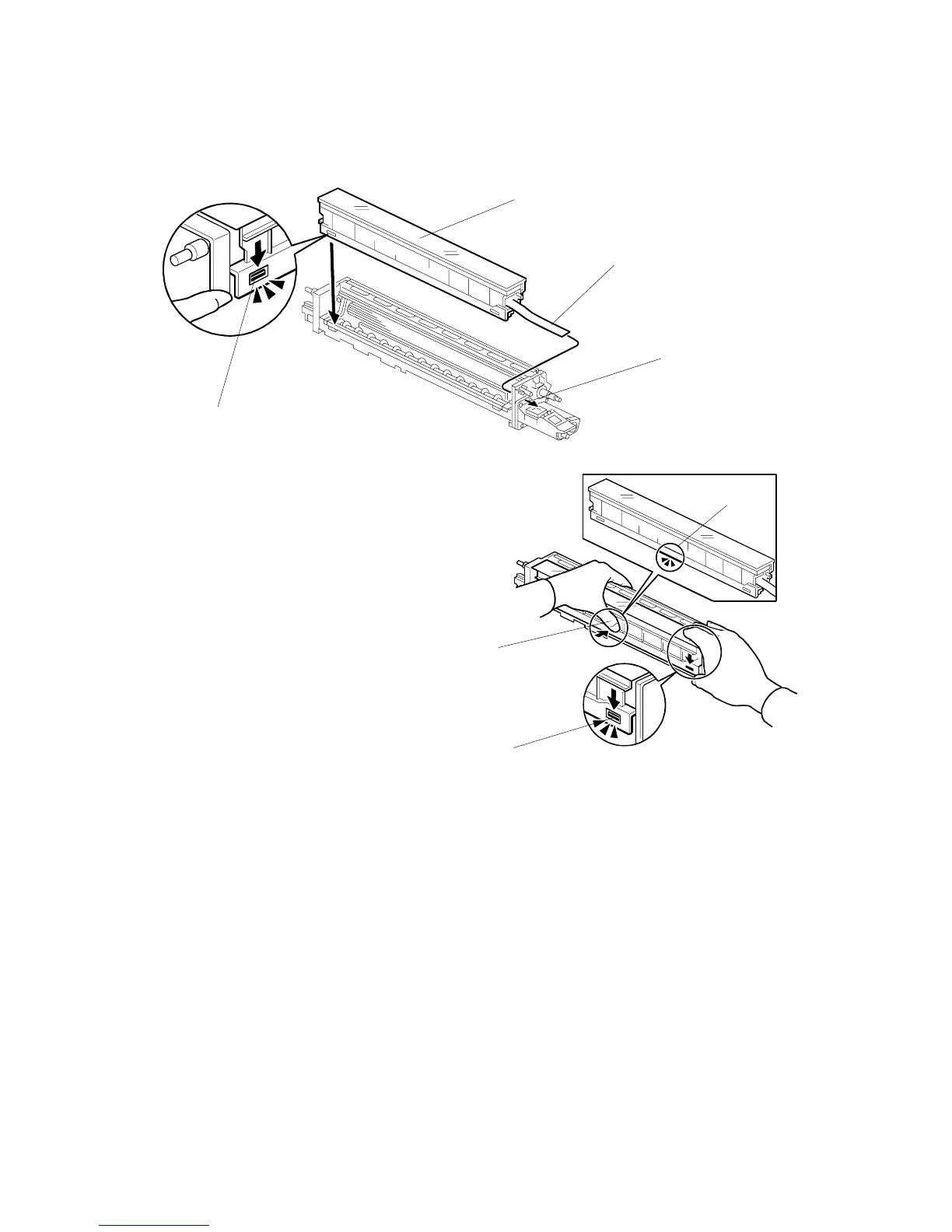

24. Thread the film seal [A] through hole [B].
25. Slide the developer cartridge down [C] on the left so the holes and tabs [D] are
aligned.
26. Press in on the middle of the developer cartridge [E] to lock the tabs inside [F].
27. Press down on the left end [D] and right end [G] to lock the tabs.
B132I106.WMF
B132I106A.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
