NETGEAR M4300 User Manual

Configure Switching Information
194
M4300 Series and M4300-96X Fully Managed Switches User Manual

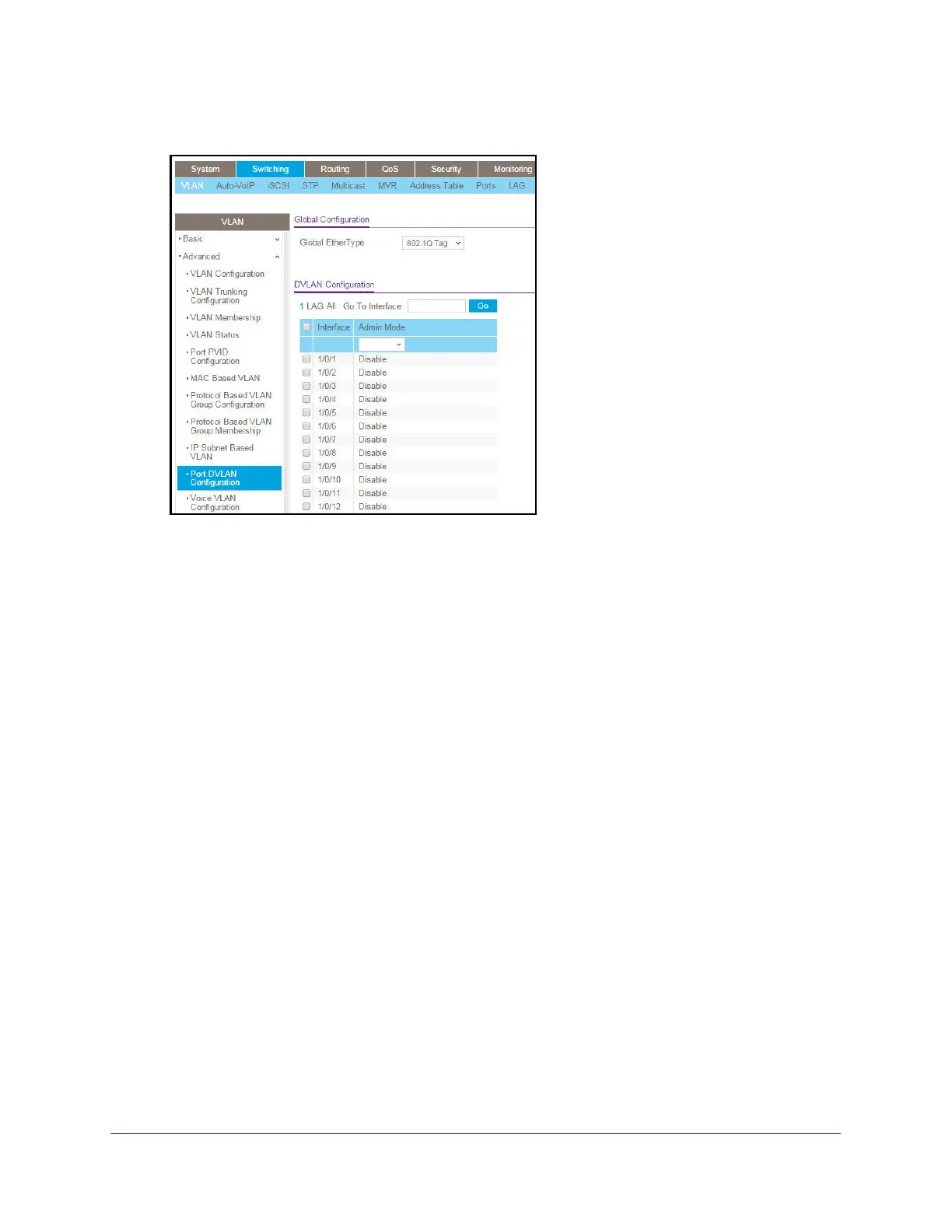

5. Select Switching> VLAN > Advanced > Port DVLAN Configuration.
6. Select Interface check boxes to select the physical interface.
To select all ports, select the Interface check box at the top of the column.
7. In the Admin Mode field, select Enabled or Disabled.
This specifies the administrative mode through which double VLAN ragging can be
enabled or disabled.
The default value for this is Disabled.
8. In the
Global EtherType field, specify the first 16 bits of the DVLAN tag:
• 802.1Q Tag. Commonly used tag representing 0x8100
• vMAN Tag. Commonly used tag representing 0x88A8
• Custom Tag. Configure the EtherT
ype in any range from 0 to 65535
9. Click the Apply button.
Your settings are saved.
Configure a Voice VLAN
You can configure the parameters for voice VLAN configuration. Only users with read/write
access privileges can change the data on this page.
 To configure a voice VLAN:
1. Launch a web browser.
2. In the address field of your web browser, enter the IP address of the switch.
The login window opens.
3. Enter the user name and password.

NETGEAR M4300 Specifications

General

Model	M4300
Form Factor	Rack-Mountable
Layer	Layer 3
Stackable	Yes
Managed	Yes
Memory	Varies by model
Flash Memory	Varies by model
Warranty	Lifetime
Ports	Varies by model (24 or 48 ports)
PoE	Available on some models
Port Speed	10/100/1000 Mbps, 10Gbps on uplinks
Forwarding Rate	Varies by model
Jumbo Frame Support	Yes
VLAN Support	Yes
Quality of Service (QoS)	Yes
Security Features	ACLs, 802.1X
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0° to 50° C (32° to 122° F)
Power Supply	Internal
Uplink Ports	Varies by model (SFP/SFP+ or 10G SFP+)
