Configure Switching Information
210
M4300 Series and M4300-96X Fully Managed Switches User Manual
Note: For two bridges to be in the same region, the force version must be
802.1s and their configuration name, digest key, and revision level
must match. For additional information about regions and their effect
on network topology, refer to the IEEE 802.1Q standard.
Configure Basic STP Settings
To configure STP basic settings:
1. Launch a web browser.
2. In the address field of your web browser, enter the IP address of the switch.
The login window opens.
3. Enter the user name and password.
The default admin user name is
admin and the default admin password is blank, that is,
do not enter a password.
4. Click the Login button.
The System Information page displays.

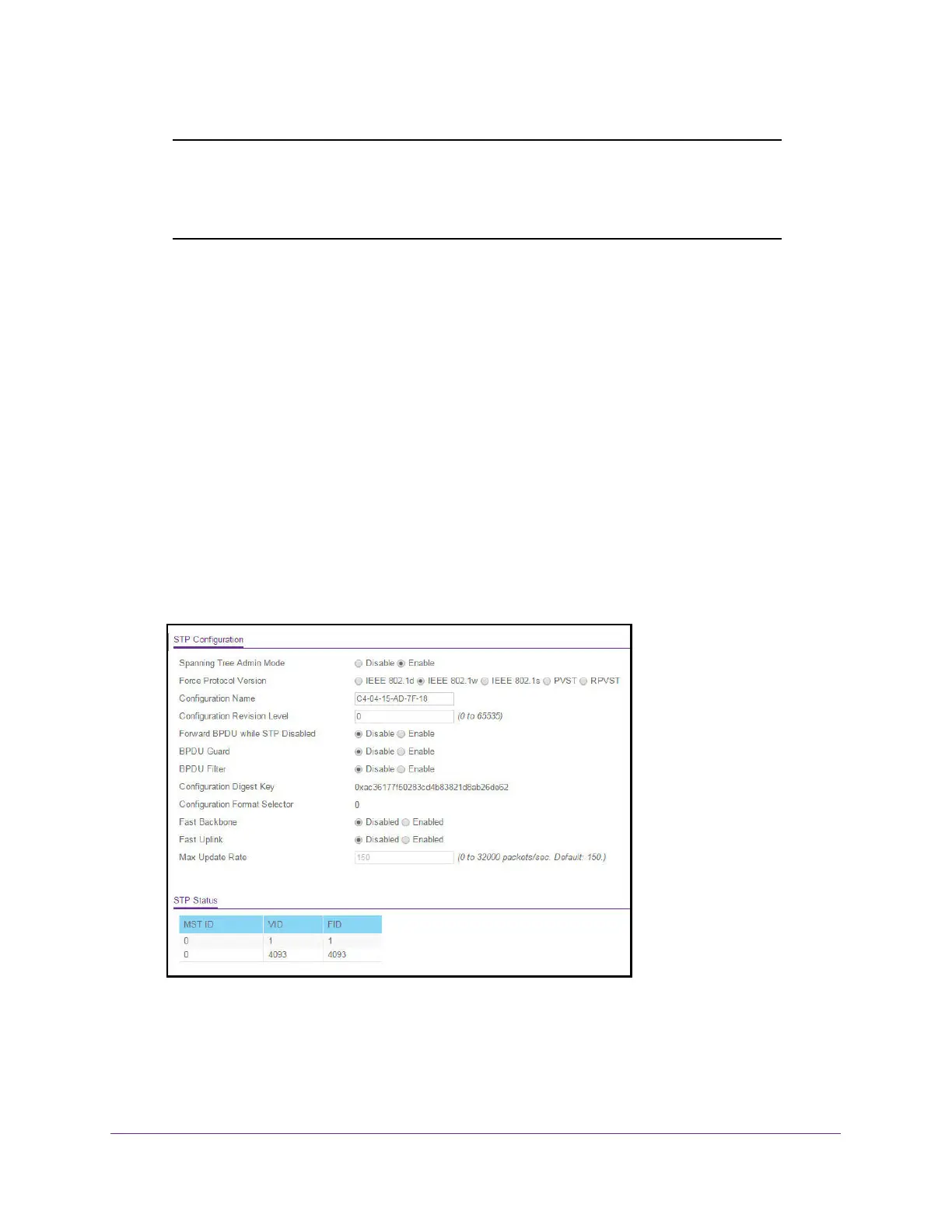

5. Select Switching > STP > Basic > STP Configuration.
6. Select the Spanning T
ree
Admin Mode Disable or Enable radio button.
This specifies whether spanning tree operation is enabled on the switch.
7. Use Force Protocol Version
to specify the Force Protocol Version parameter for the
switch.
