Configure Switching Information
245
M4300 Series and M4300-96X Fully Managed Switches User Manual
Configure a MLD Snooping Interface
To configure a MLD snooping interface:
1. Launch a web browser.
2. In the address field of your web browser, enter the IP address of the switch.
The login window opens.
3. Enter the user name and password.
The default admin user name is
admin and the default admin password is blank, that is,
do not enter a password.
4. Click the Login button.
The System Information page displays.

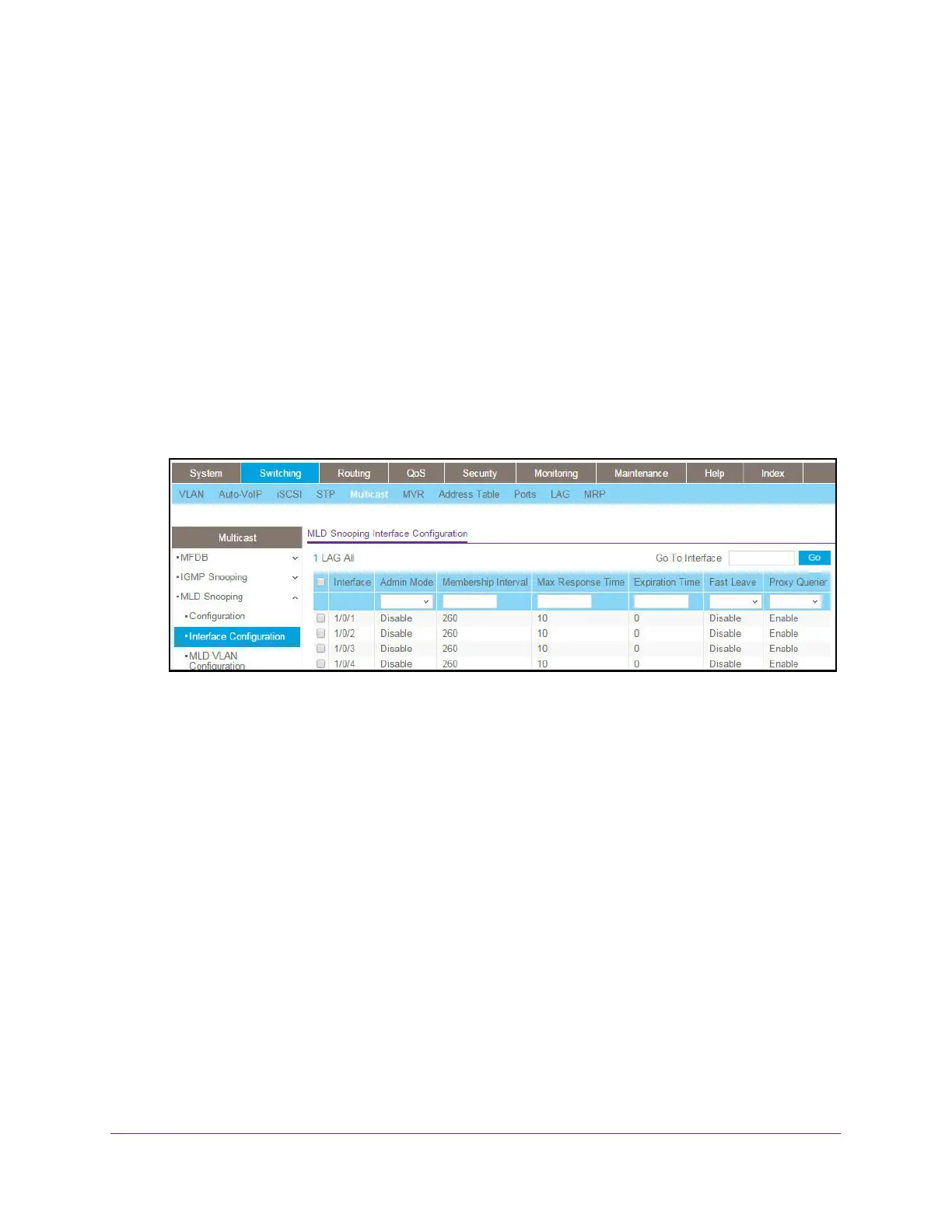

5. Select Switching> Multicast > MLD Snooping > Interface Configuration.
All physical, VLAN, and LAG interfaces are displayed.
6. Use one of the following methods to select an interface:
• In the Go T
o Interface field, enter the interface in the unit/slot/port format and click on
the
Go button.
• Next to the Interface column, select the check box for the interface that you want to
configure
All physical, VLAN, and LAG interfaces are listed in the Interface column.
7. Use Admin Mode to select the interface mode for the selected interface for MLD snooping
for the switch.
The default is Disable.
8. Use Group Membership Interval(secs)
to specify the amount of time you want the switch
to wait for a report for a particular group on a particular interface before it deletes that
interface from the group.
The valid range is from 2 to 3600 seconds. The configured value must be greater than
Max Response T
ime. The default is 260 seconds.
9. Use Max Response Time (secs) to specify the amount of time you want the switch to wait
after sending a query on an interface because it did not receive a report for a particular
group on that interface.
