NETGEAR M4300 User Manual

Manage Device Security
547
M4300 Series and M4300-96X Fully Managed Switches User Manual

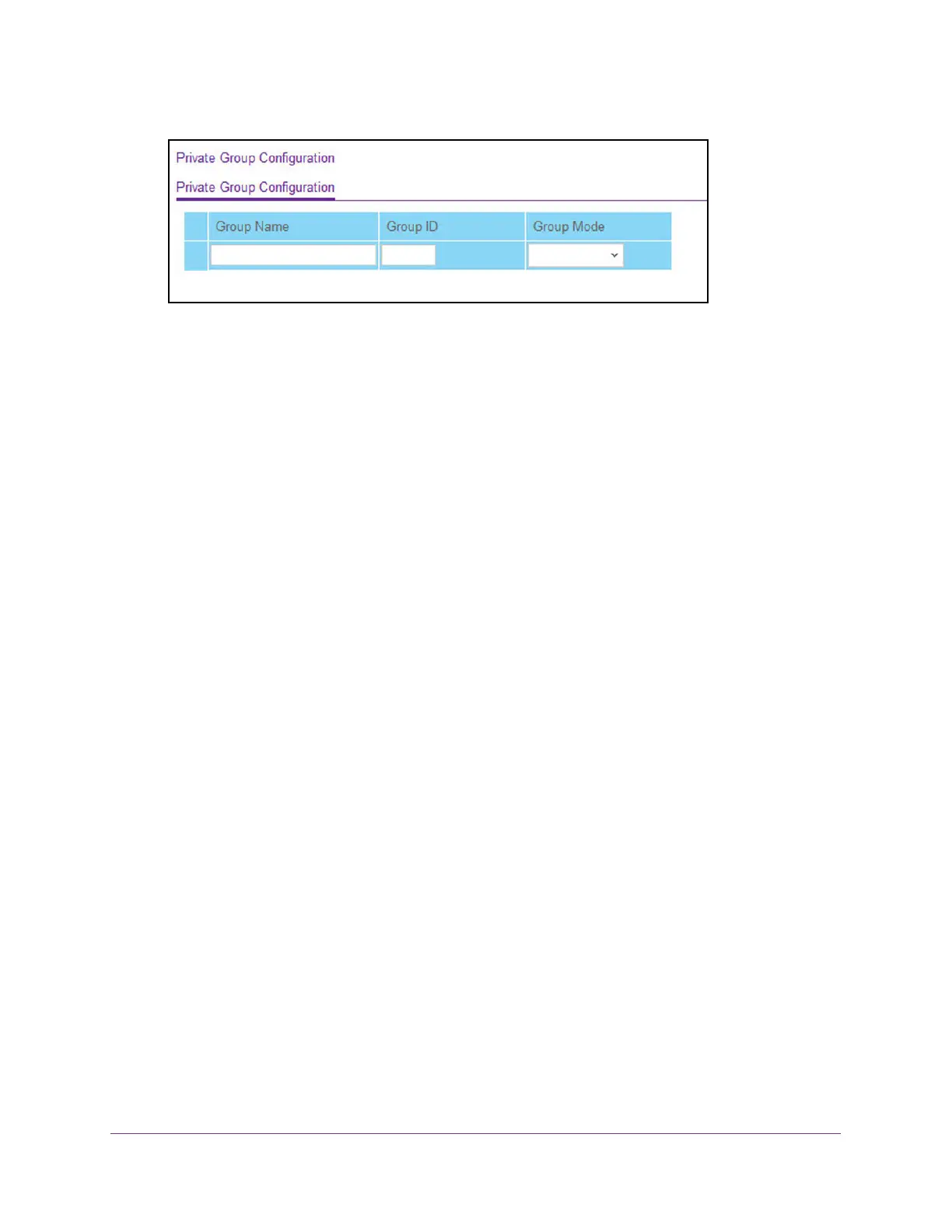

6. In the Group Name field, enter the private group name.
The name can be up to 24 bytes of non-blank characters.
7. In the optional Group ID field, specify the private group identifier.
The range of group ID is 1 to 192.
8. In the
Group Mode list, select the mode of private group.
The group mode can be either isolated or community. When in isolated mode, the
member port in the group cannot forward its egress traf
fic to any other members in the
same group. By default, the mode is community mode that each member port can
forward traf
fic to other members in the same group, but not to members in other groups.
9. Click the Add button.
The private group is created in the switch.
Configure Private Group Membership
 To configure private group membership:
1. Launch a web browser.
2. In the address field of your web browser, enter the IP address of the switch.
The login window opens.
3. Enter the user name and password.
The default admin user name is
admin and the default admin password is blank, that is,
do not enter a password.
4. Click the Login button.
The System Information page displays.
5. Select Security > T
raffic Control > Private Group > Private Group Membership.

NETGEAR M4300 Specifications

General

Model	M4300
Form Factor	Rack-Mountable
Layer	Layer 3
Stackable	Yes
Managed	Yes
Memory	Varies by model
Flash Memory	Varies by model
Warranty	Lifetime
Ports	Varies by model (24 or 48 ports)
PoE	Available on some models
Port Speed	10/100/1000 Mbps, 10Gbps on uplinks
Forwarding Rate	Varies by model
Jumbo Frame Support	Yes
VLAN Support	Yes
Quality of Service (QoS)	Yes
Security Features	ACLs, 802.1X
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0° to 50° C (32° to 122° F)
Power Supply	Internal
Uplink Ports	Varies by model (SFP/SFP+ or 10G SFP+)
