NETGEAR M4300 User Manual

Multicast Routing
433
M4300 Series and M4300-96X Fully Managed Switches User Manual

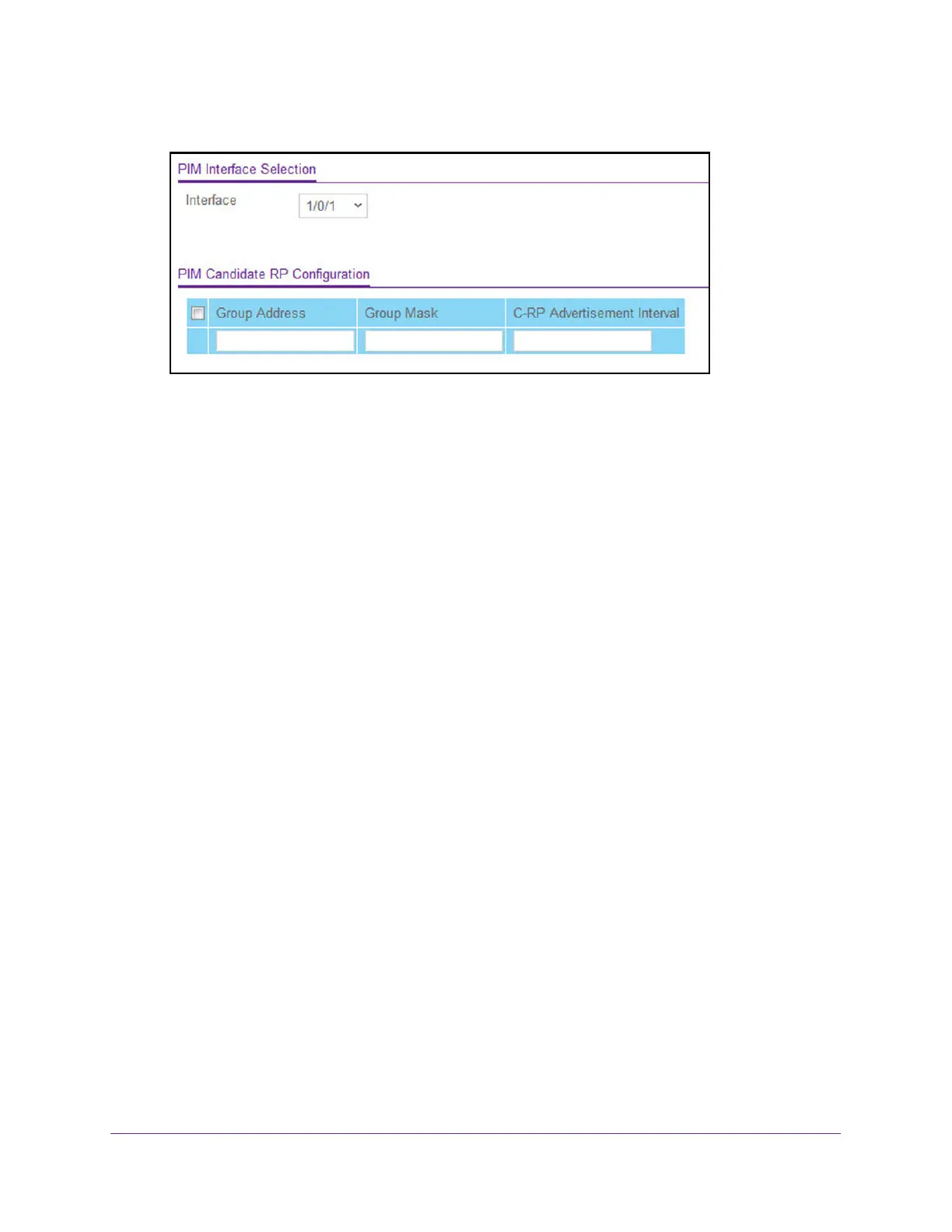

5. Select Routing> Multicast > PIM > Candidate RP Configuration.
6. From the list of interfaces, select the Interface.
7. Enter the Group Address transmitted in candidate-RP-advertisements.
If you enter an IPv6 address, the format is prefix/prefix length.
8. In the Group Mask field, enter the group address mask transmitted in
candidate-RP-advertisements
9. In the C-RP Advertisement
Interval field, specify the duration in seconds at which the
C-RP messages are unicast to the bootstrap router (BSR).
The range is from 1 to 16383 seconds.
The default value is 60 seconds. If this field is
submitted without any value, the default value is used.
10. Click the Add button.
The candidate-RP address is added for the PIM router.
Configure the PIM Bootstrap Router Candidate
 To configure the multicast PIM bootstrap router (BSR) candidate:
1. Launch a web browser.
2. In the address field of your web browser, enter the IP address of the switch.
The login window opens.
3. Enter the user name and password.
The default admin user name is
admin and the default admin password is blank, that is,
do not enter a password.
4. Click the Login button.
The System Information page displays.
5. Select Routing> Multicast > PIM > BSR Candidate Configuration.

NETGEAR M4300 Specifications

General

Model	M4300
Form Factor	Rack-Mountable
Layer	Layer 3
Stackable	Yes
Managed	Yes
Memory	Varies by model
Flash Memory	Varies by model
Warranty	Lifetime
Ports	Varies by model (24 or 48 ports)
PoE	Available on some models
Port Speed	10/100/1000 Mbps, 10Gbps on uplinks
Forwarding Rate	Varies by model
Jumbo Frame Support	Yes
VLAN Support	Yes
Quality of Service (QoS)	Yes
Security Features	ACLs, 802.1X
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0° to 50° C (32° to 122° F)
Power Supply	Internal
Uplink Ports	Varies by model (SFP/SFP+ or 10G SFP+)
