Routing
291
M4300 Series and M4300-96X Fully Managed Switches User Manual
Configure the Routing IP Settings
You can configure routing IP settings for the switch, as opposed to the IP settings for an
interface.
To configure the routing IP settings:
1. Launch a web browser.
2. In the address field of your web browser, enter the IP address of the switch.
The login window opens.
3. Enter the user name and password.
The default admin user name is
admin and the default admin password is blank, that is,
do not enter a password.
4. Click the Login button.
The System Information page displays.

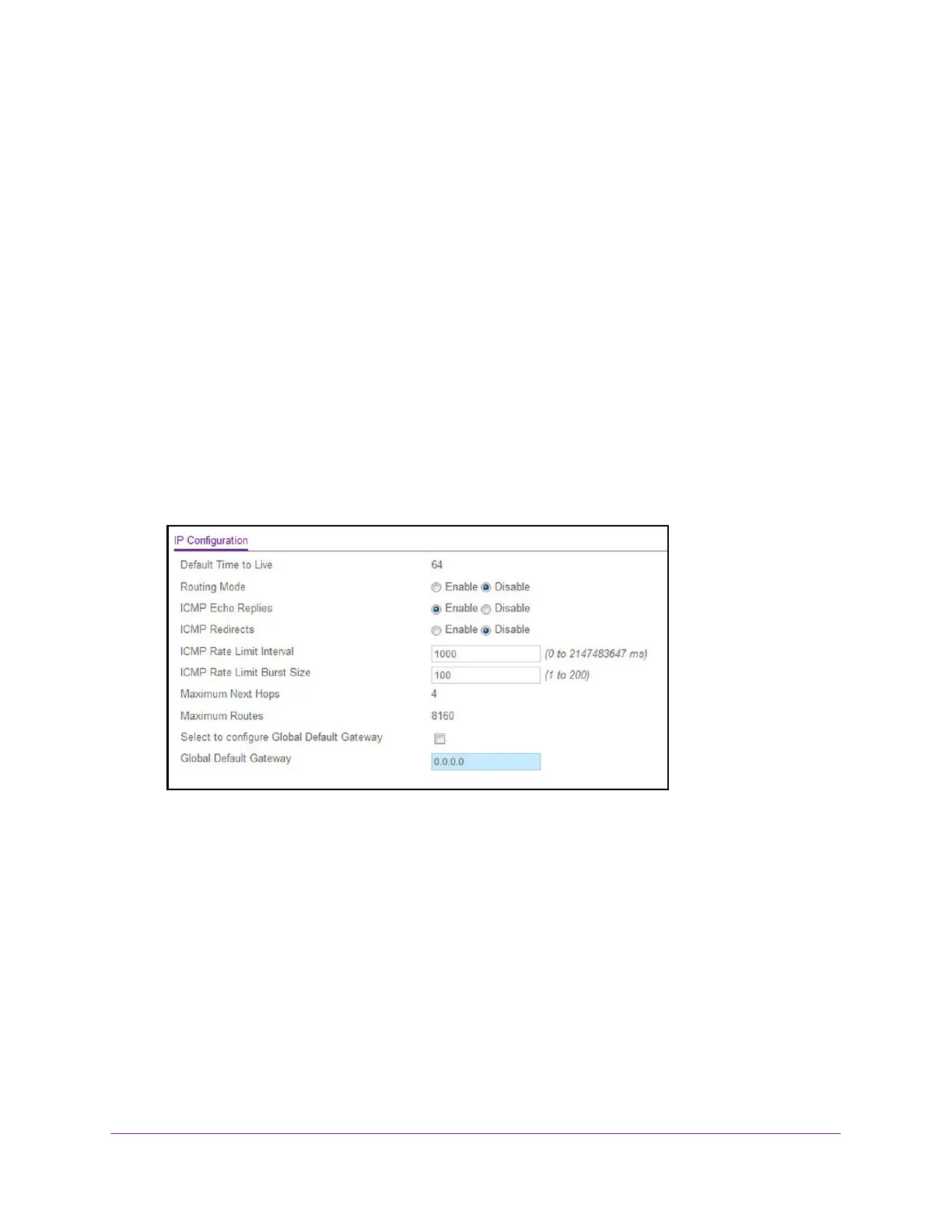

5. Select Routing> IP > Basic > IP Configuration.
6. Use Routing Mode to select Enable or Disable.
You must enable routing for the switch before you can route through any of the
interfaces.
The default value is Disable.
7. Use ICMP Echo Replies
to select Enable or Disable.
If you select Enable, then only the router can send ECHO replies. By default ICMP Echo
Replies are sent for echo requests.
8. Use ICMP Redirects to select Enable or Disable.
If this is enabled globally and on an interface level, then only the router can send ICMP
Redirects.
9. Use ICMP Rate Limit Interval to control the ICMP error packets by specifying the number
of ICMP error packets that are allowed per burst interval.
