Configure System Information
35
M4300 Series and M4300-96X Fully Managed Switches User Manual
Configure the Initial Service Port Settings
To perform the initial service port configuration:
1. Launch a web browser.
2. In the address field of your web browser, enter the IP address of the switch.
The login window opens.
3. Enter the user name and password.
The default admin user name is
admin and the default admin password is blank, that is,
do not enter a password.
4. Click the Login button.
The System Information page displays.
5. Click System > Management > Initial Setup.
The Initial Setup page displays.

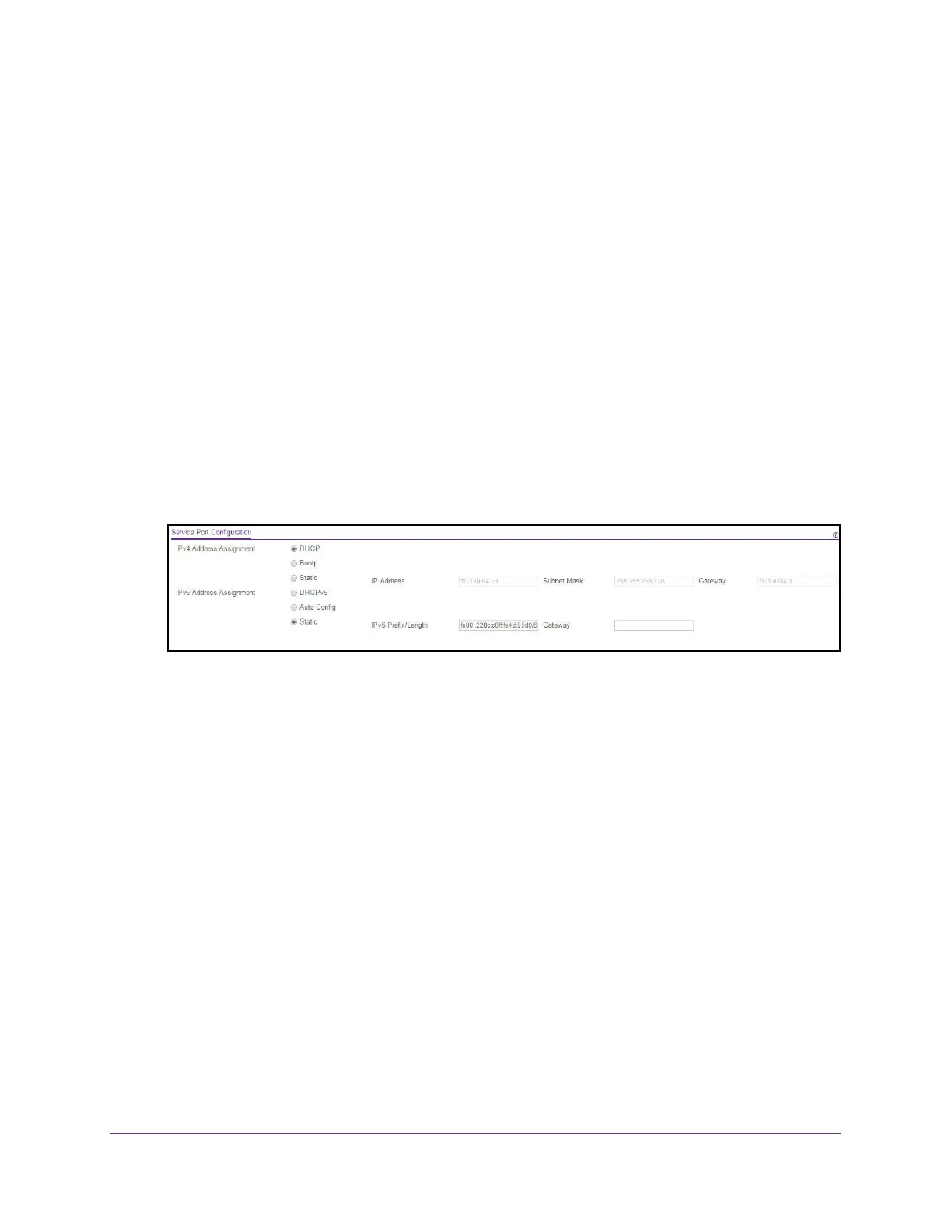

6. Scroll down to the bottom of the page to display the Service Port Configuration section.
7. Select an IPv4 Address Assignment radio button.
This specifies the method for getting IPv4 network parameters (IPv4 address and
network mask) for the service port. Possible options are DHCP
, BootP
, or Static. The
default value is Static.
8. Specify the IP Address for the service port.
The factory default value is 192.168.0.239.
9. Specify the Subnet Mask for the service port.
This is also referred to as the subnet/network mask and defines the portion of the
interface’
s IP address that is used to identify the attached network.
The factory default
value is 255.255.255.0.
10. Specify the default Gateway for the service port.
The default value is 0.0.0.0.
11. In the IPv6 Address Assignment field, select the method for getting IPv6 network
parameters (IPv6 prefix and prefix length) for the configured service port.
Possible options are DHCPv6, Auto Config, or Static. The default value is
Auto Config.
12. Specify the IPv6 Prefix and Prefix Length for the service port.
