Configure Quality of Service
469
M4300 Series and M4300-96X Fully Managed Switches User Manual
Configure Basic DiffServ Settings
Packets are filtered and processed based on defined criteria. The filtering criteria is defined
by a class. The processing is defined by a policy's attributes. Policy attributes can be defined
on a per–class instance basis, and it is these attributes that are applied when a match
occurs.
The configuration process begins with defining one or more match criteria for a class. Then
one or more classes are added to a policy. Policies are then added to interfaces.
Packet processing begins by testing the match criteria for a packet.
The all class type option
specifies that each match criteria within a class must evaluate to true for a packet to match
that class. The any class type option specifies that at least one match criteria must evaluate
to true for a packet to match that class. Classes are tested in the order in which they were
added to the policy. A policy is applied to a packet when a class match within that policy is
found.
To configure the basic DiffServ settings:
1. Launch a web browser.
2. In the address field of your web browser, enter the IP address of the switch.
The login window opens.
3. Enter the user name and password.
The default admin user name is
admin and the default admin password is blank, that is,
do not enter a password.
4. Click the Login button.
The System Information page displays.

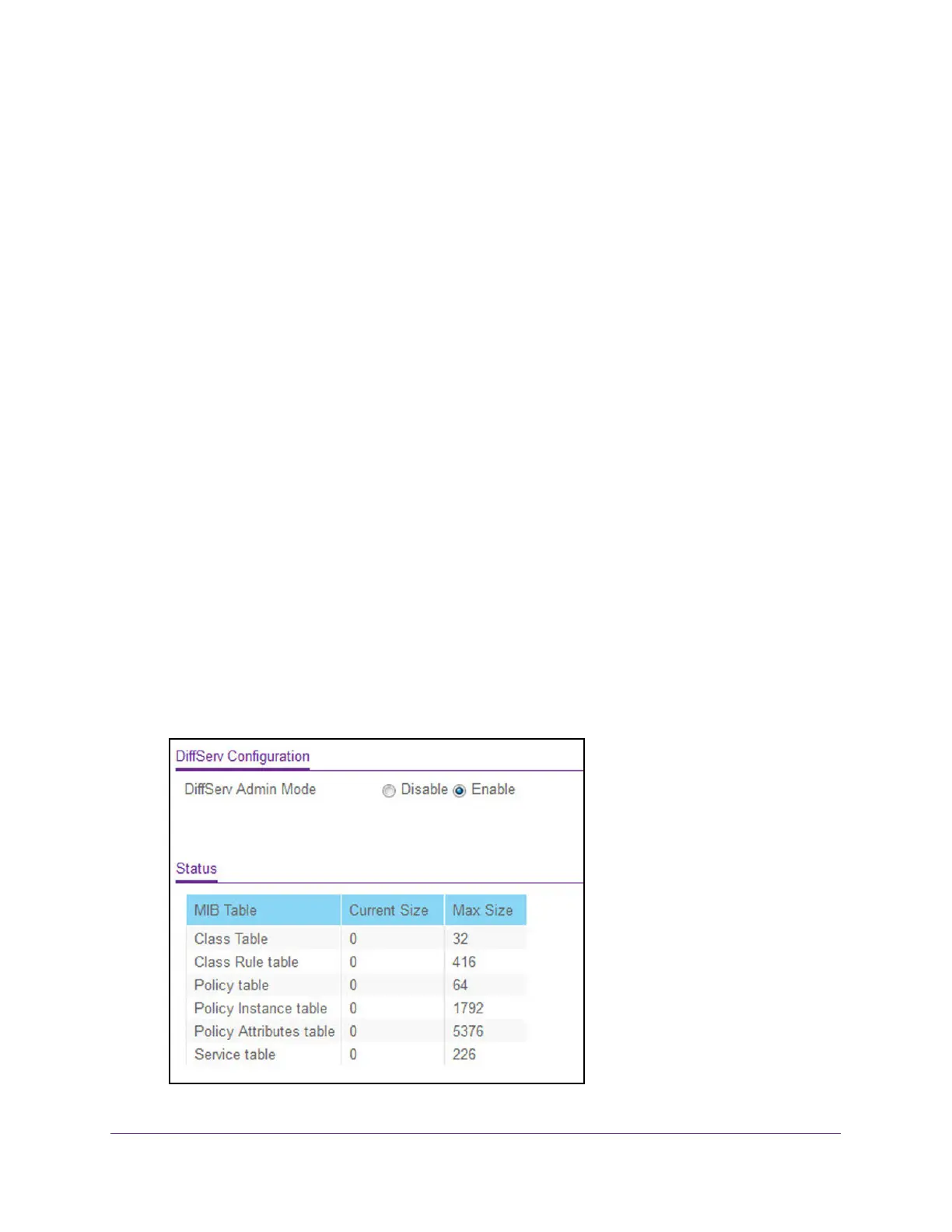

5. Select QoS> DiffServ > Basic > DiffServ Configuration.
