NETGEAR M4300 User Manual

Configure Quality of Service
462
M4300 Series and M4300-96X Fully Managed Switches User Manual
Configure CoS Interface Settings for an Interface
You can apply an interface shaping rate to all interfaces or to a specific interface.
 To configure CoS settings for an interface:
1. Launch a web browser.
2. In the address field of your web browser, enter the IP address of the switch.
The login window opens.
3. Enter the user name and password.
The default admin user name is
admin and the default admin password is blank, that is,
do not enter a password.
4. Click the Login button.
The System Information page displays.

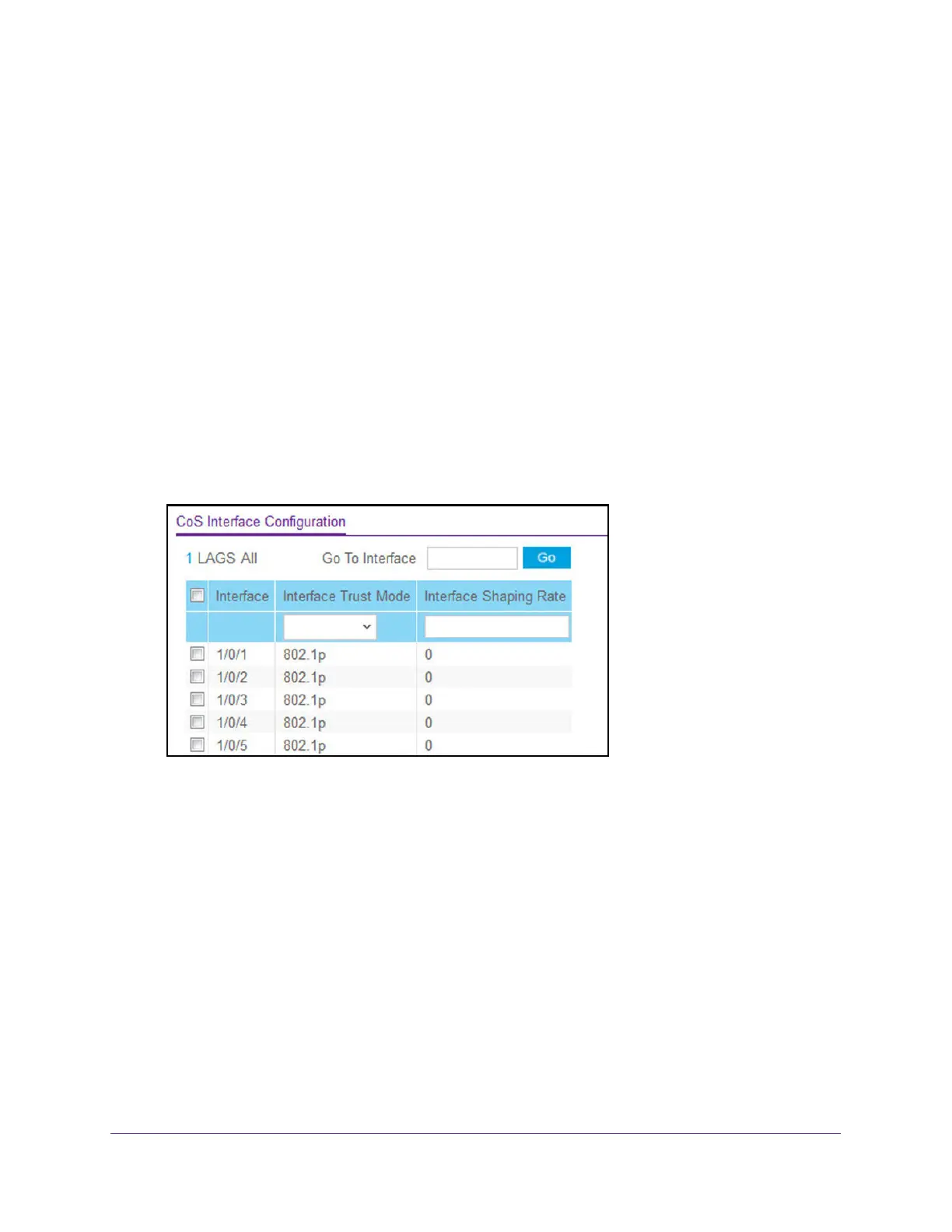

5. Select QoS > CoS>
Advanced > CoS Interface Configuration.
6. Select one of the following options to specify which interfaces are displayed on the page:
• Select
LAG to show the list of all LAG interfaces.
• Select All to show the list of all physical as well as LAG interfaces.
7. Use one of the following methods to select an interface:
• Use the Go To Interface field to enter the interface in unit/slot/port format and click
the
Go button.
The entry corresponding the specified interface is selected.
• Select an interface from the Interface list of all CoS configurable interfaces.
8. Use Interface T
rust Mode
to specify whether or not to trust a particular packet marking at
ingress.
Interface Trust Mode can be one of the following:
• Untrusted

NETGEAR M4300 Specifications

General

Model	M4300
Form Factor	Rack-Mountable
Layer	Layer 3
Stackable	Yes
Managed	Yes
Memory	Varies by model
Flash Memory	Varies by model
Warranty	Lifetime
Ports	Varies by model (24 or 48 ports)
PoE	Available on some models
Port Speed	10/100/1000 Mbps, 10Gbps on uplinks
Forwarding Rate	Varies by model
Jumbo Frame Support	Yes
VLAN Support	Yes
Quality of Service (QoS)	Yes
Security Features	ACLs, 802.1X
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0° to 50° C (32° to 122° F)
Power Supply	Internal
Uplink Ports	Varies by model (SFP/SFP+ or 10G SFP+)
