Monitor the System
629
M4300 Series and M4300-96X Fully Managed Switches User Manual
Perform a Cable Test
To perform a cable test:
1. Launch a web browser.
2. In the address field of your web browser, enter the IP address of the switch.
The login window opens.
3. Enter the user name and password.
The default admin user name is
admin and the default admin password is blank, that is,
do not enter a password.
4. Click the Login button.
The System Information page displays.

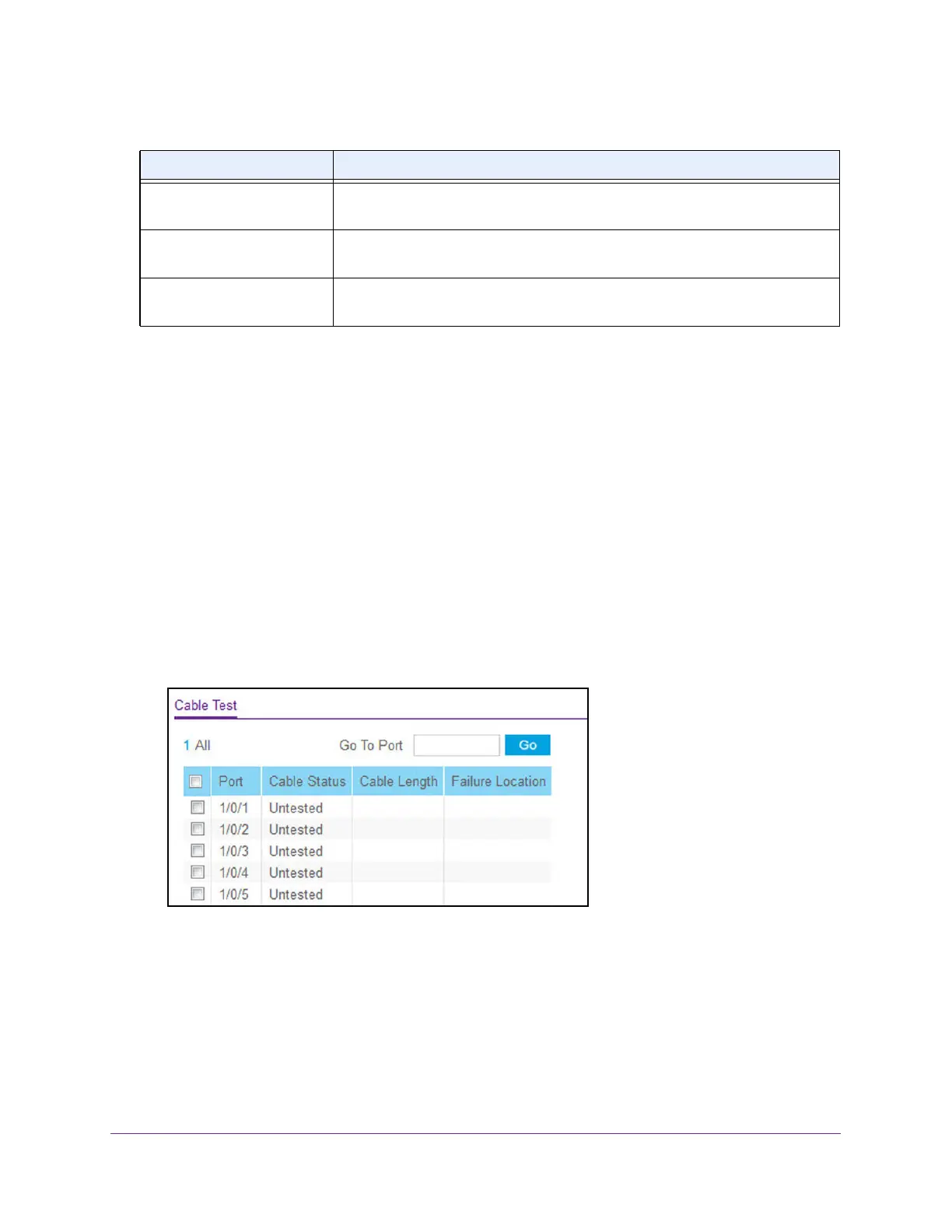

5. Select Monitoring > Ports > Cable T
est.
6. Use one of the following methods to select a port:
• In the Go To
Port field, enter the interface in the unit/slot/port format and click on the
Go button.
• Next to the Port column, select the check box for the port that you want to test.
7. Click the Apply button.
A cable test is performed on the selected interface. The cable test might take up to two
seconds to complete. If the port has an active link, the cable status is always Normal. The
EAP Response Frames
Received
This displays the number of valid EAP response frames (other than resp/ID
frames) that were received by this authenticator.
EAP Request/ID Frames
Transmitted
This displays the number of EAP request/identity frames that were transmitted by
this authenticator.
EAP Request Frames
Transmitted
This displays the number of EAP request frames (other than request/identity
frames) that were transmitted by this authenticator.
Table 219. EAP Statistics
Field Description
