Manage Device Security
601
M4300 Series and M4300-96X Fully Managed Switches User Manual
Configure Rules for an Extended IP ACL
You can view the rules for the IP access control lists that you created. What is shown on this
page varies depending on the step in the rule configuration process.
Note: An implicit deny all default rule exists as the last rule of an ACL list.
This means that if an ACL is applied to a packet and if none of the
explicit rules match, the final implicit deny all rule applies and the
packet is dropped.
To configure rules for an extended IP ACL:
1. Launch a web browser.
2. In the address field of your web browser, enter the IP address of the switch.
The login window opens.
3. Enter the user name and password.
The default admin user name is
admin and the default admin password is blank, that is,
do not enter a password.
4. Click the Login button.
The System Information page displays.
5. Select Security >
ACL >
Advanced > IP Extended Rules.

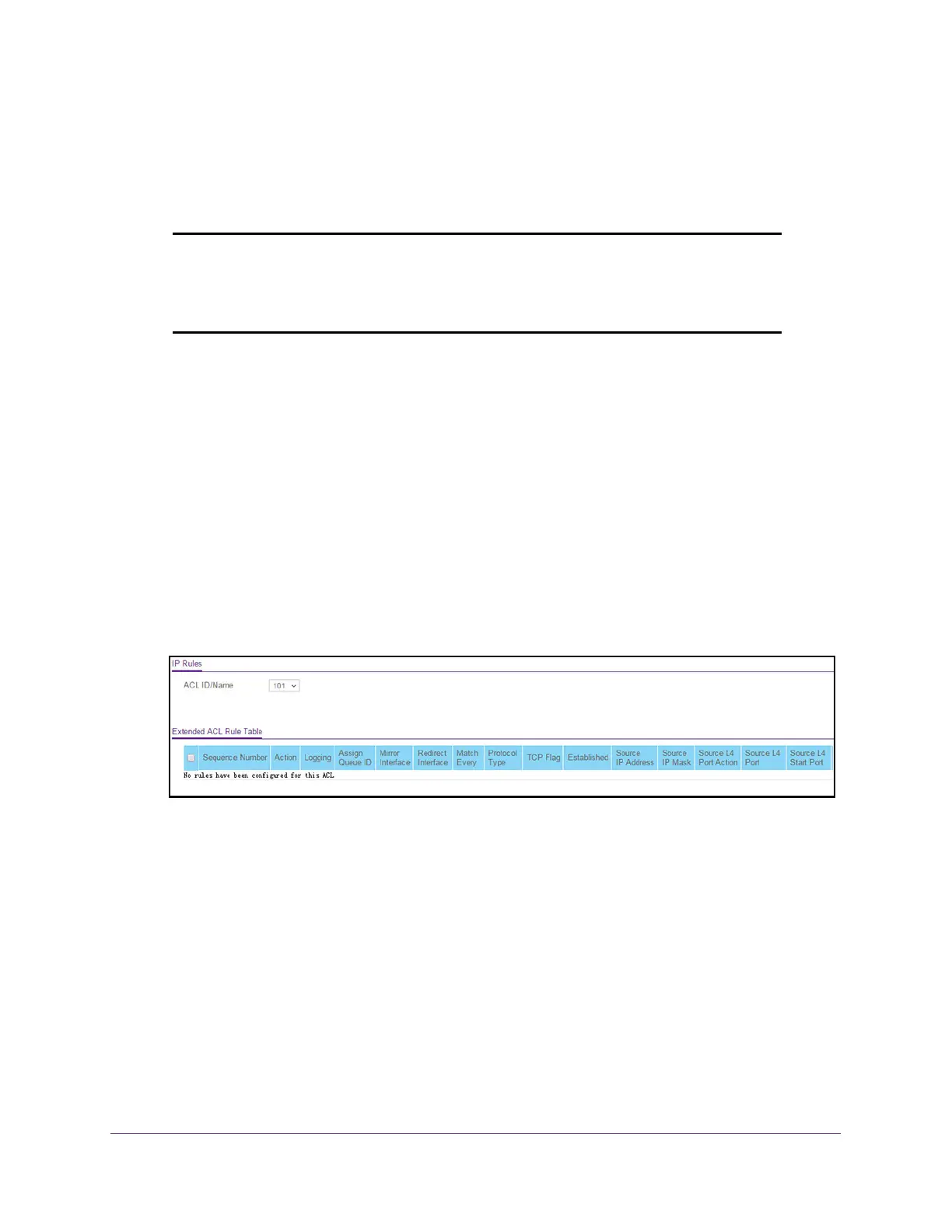

If no rules exists, the Extended ACL Rule Table shows the message No rules have been
configured for this ACL. If one or more rule exists for the
ACL, the rules display in the
Extended ACL Rule Table.
6. From the ACL ID/Name menu, select the IP ACL for which you want to add or a change a
rule.
For extended IP
ACLs, this must be an ID in the range from 101 to 199 or a name.
7. Take one of the following actions:
• To add an IP ACL rule, click the Add
button.
• To change an existing rule, click the rule hyperlink in the Sequence Number column
of the Extended
ACL Rule Table.
