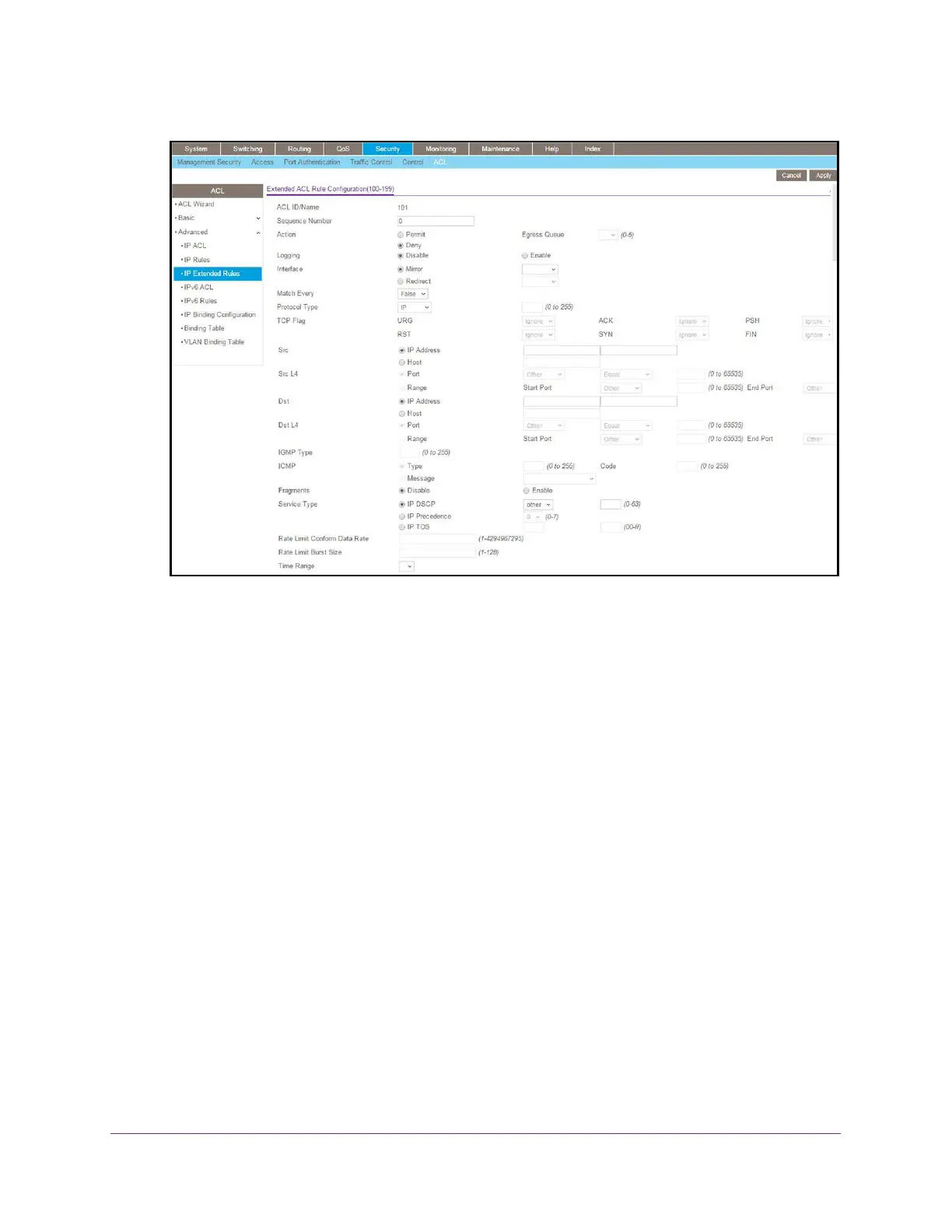

8. Configure the following options for the rule:
• Sequence Number. Enter a whole number in the range of 1 to 2147483647. This
number is used to identify the rule.
An extended IP ACL can contain up to 1023 rules.
• Action. Specify what action is taken if a packet matches the rule’s criteria.
The choice
is Permit or Deny.
• Logging. When set to Enable, logging is enabled for this ACL rule (subject to
resource availability in the device). If the access list trap flag is also enabled, this
causes periodic traps to be generated indicating the number of times this rule was hit
during the current report interval.
A fixed 5-minute report interval is used for the entire
system. A trap is not issued if the ACL rule hit count is zero for the current interval.
This field is visible for a Deny action.
• Egress Queue.
The hardware egress queue identifier used to handle all packets
matching this IP
ACL rule. Valid range of queue IDs is 0 to 6. This field is visible when
Permit is chosen as the action.
• Interface. For a Permit action, use either a mirror interface or a redirect interface:
- Select the Mirror Interface radio button and use the menu to specify the egress
interface to which the matching traf
fic stream is copied, in addition to being
forwarded normally by the device.
- Select the
Redirect Interface radio button and use the menu to specify the
egress interface to which the matching traffic stream is forced, bypassing any
forwarding decision normally performed by the device.
• Match Every. From the menu, select
True
or False.
