M4300 Series and M4300-96X Fully Managed Switches User Manual
10. Click the Apply button.
Your settings are saved.
Set Up Private VLANs
A private VLAN contains switch ports that cannot communicate with each other, but can
access another network. These ports are called private ports. Each private VLAN contains
one or more private ports and a single uplink port or uplink aggregation group. Note that all
traffic between private ports is blocked at all Layers, not just Layer 2 traffic, but also traffic
such as FTP, HTTP, and Telnet.
Configure a Private VLAN Type
 To configure a private VLAN type:
1. Launch a web browser.
2. In the address field of your web browser, enter the IP address of the switch.
The login window opens.
3. Enter the user name and password.
The default admin user name is
admin and the default admin password is blank, that is,
do not enter a password.
4. Click the Login button.
The System Information page displays.

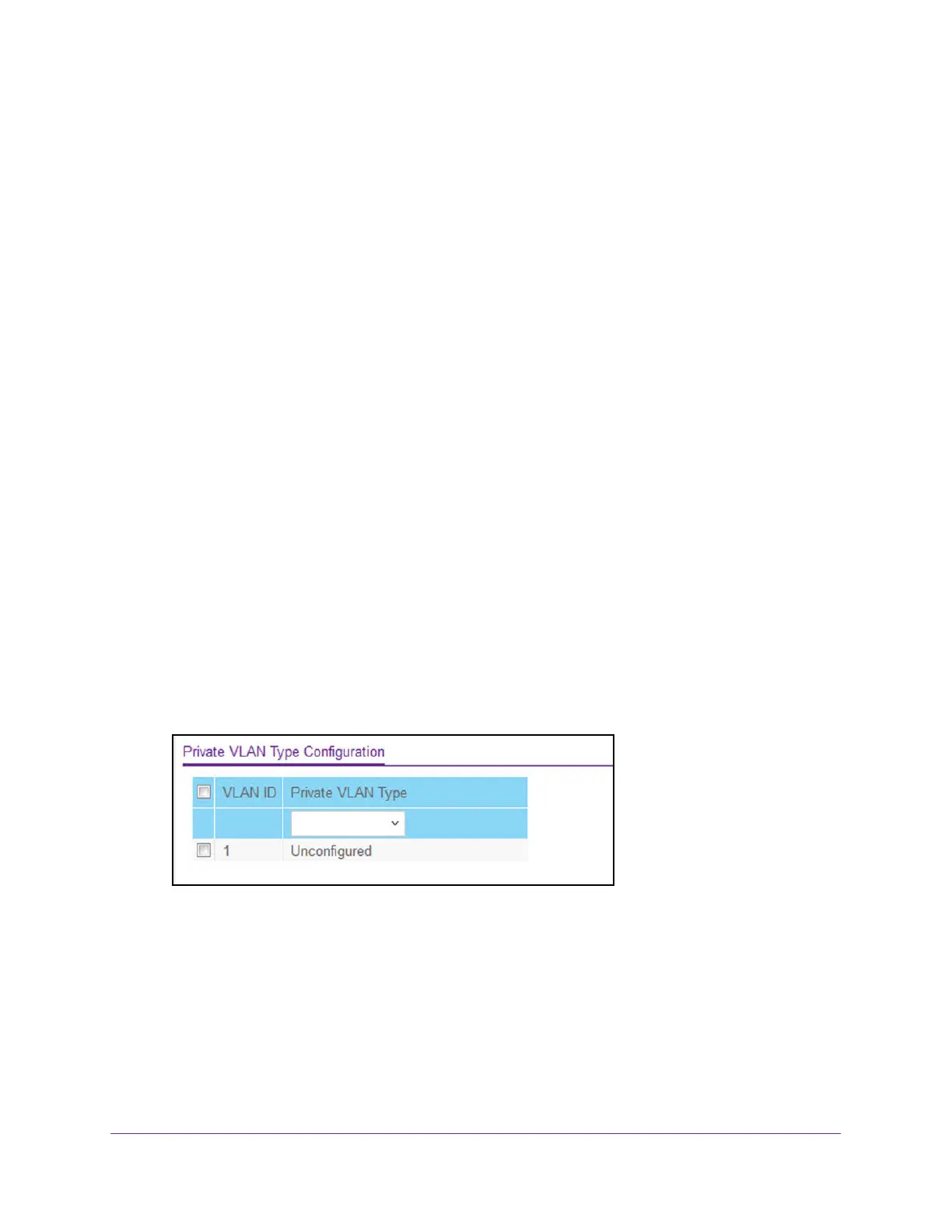

5. Select Security > T
raffic Control > Private VLAN > Private VLAN T
ype Configuration.
6. Use Private VLAN Type
to select the type of private VLAN.
The factory default is Unconfigured.
7. Click the Apply button.
Your settings are saved.
The VLAN ID field specifies the VLAN ID for which the private VLAN type is being set.
The factory default is Unconfigured.
