Configure Switching Information
257
M4300 Series and M4300-96X Fully Managed Switches User Manual
The factory default is Disable.
10. Click the Apply button.
Your settings are saved.

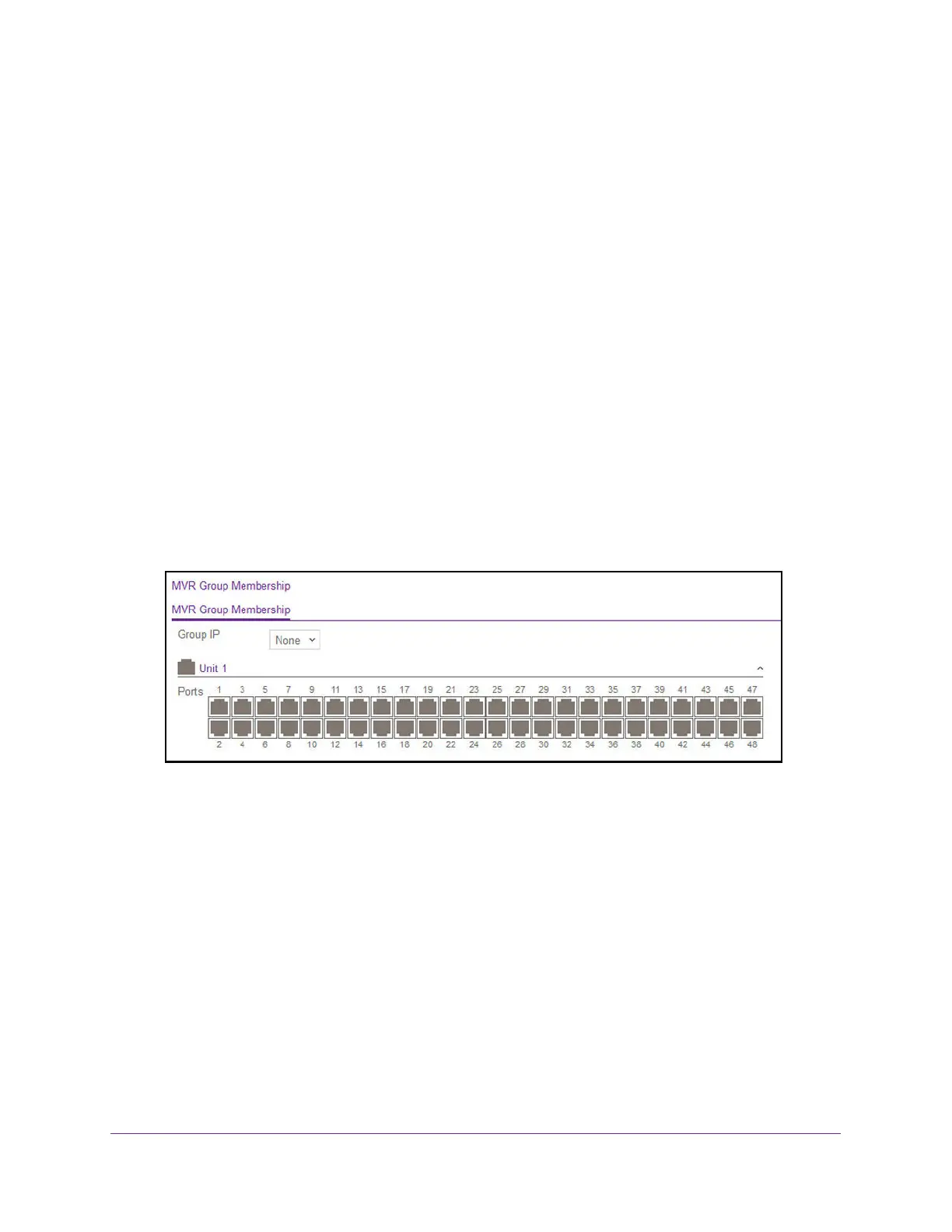

Configure MVR Group Membership
To configure MVR group membership:
1. Launch a web browser.
2. In the address field of your web browser, enter the IP address of the switch.
The login window opens.
3. Enter the user name and password.
The default admin user name is
admin and the default admin password is blank, that is,
do not enter a password.
4. Click the Login button.
The System Information page displays.
5. Select Switching > MVR > Advanced > MVR Group Membership.
6. Use the Group IP to specify the IP multicast address of the MVR group.
7. Use the Port List to view the configured list of members of the selected MVR group.
You can use this port list to add the ports you selected to this MVR group.
8. Click the Apply button.
Your settings are saved.
