Configure Switching Information
242
M4300 Series and M4300-96X Fully Managed Switches User Manual
Configure IGMP Snooping Querier for VLANs
You can configure IGMP queriers for use with VLANs on the network.
To configure querier VLAN settings:
1. Launch a web browser.
2. In the address field of your web browser, enter the IP address of the switch.
The login window opens.
3. Enter the user name and password.
The default admin user name is
admin and the default admin password is blank, that is,
do not enter a password.
4. Click the Login button.
The System Information page displays.

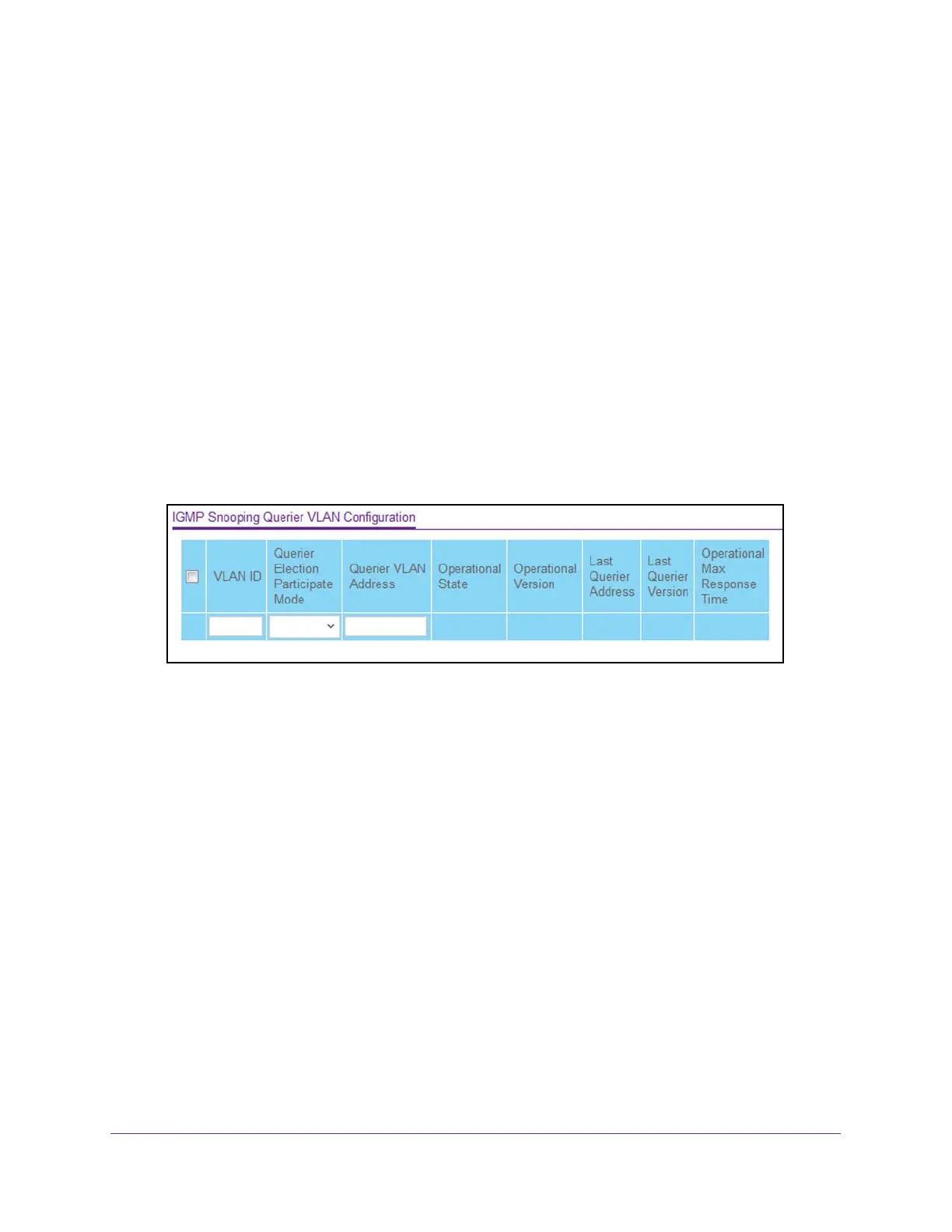

5. Select Switching> Multicast > IGMP Snooping > Querier VLAN Configuration.
6. T
o create a new VLAN ID for IGMP snooping, select New Entry
from the VLAN ID field and
complete the following fields.
You can also set pre-configurable snooping querier parameters.
• VLAN ID. The VLAN ID for which the IGMP snooping querier is to be enabled.
• Querier Election Participate Mode
. Enable or disable querier Participate mode.
- Disabled. Upon seeing another querier of the same version in the VLAN, the
snooping querier moves to the non-querier state.
- Enabled.
The snooping querier participates in querier election, in which the least
IP address operates as the querier in that VLAN.
The other querier moves to
non-querier state.
• Snooping Querier VLAN Address. Specify the snooping querier IP address to be
used as the source address in periodic IGMP queries sent on the specified VLAN.
7. Click the Apply
button.
Your settings are saved.
