M4300 Series and M4300-96X Fully Managed Switches User Manual

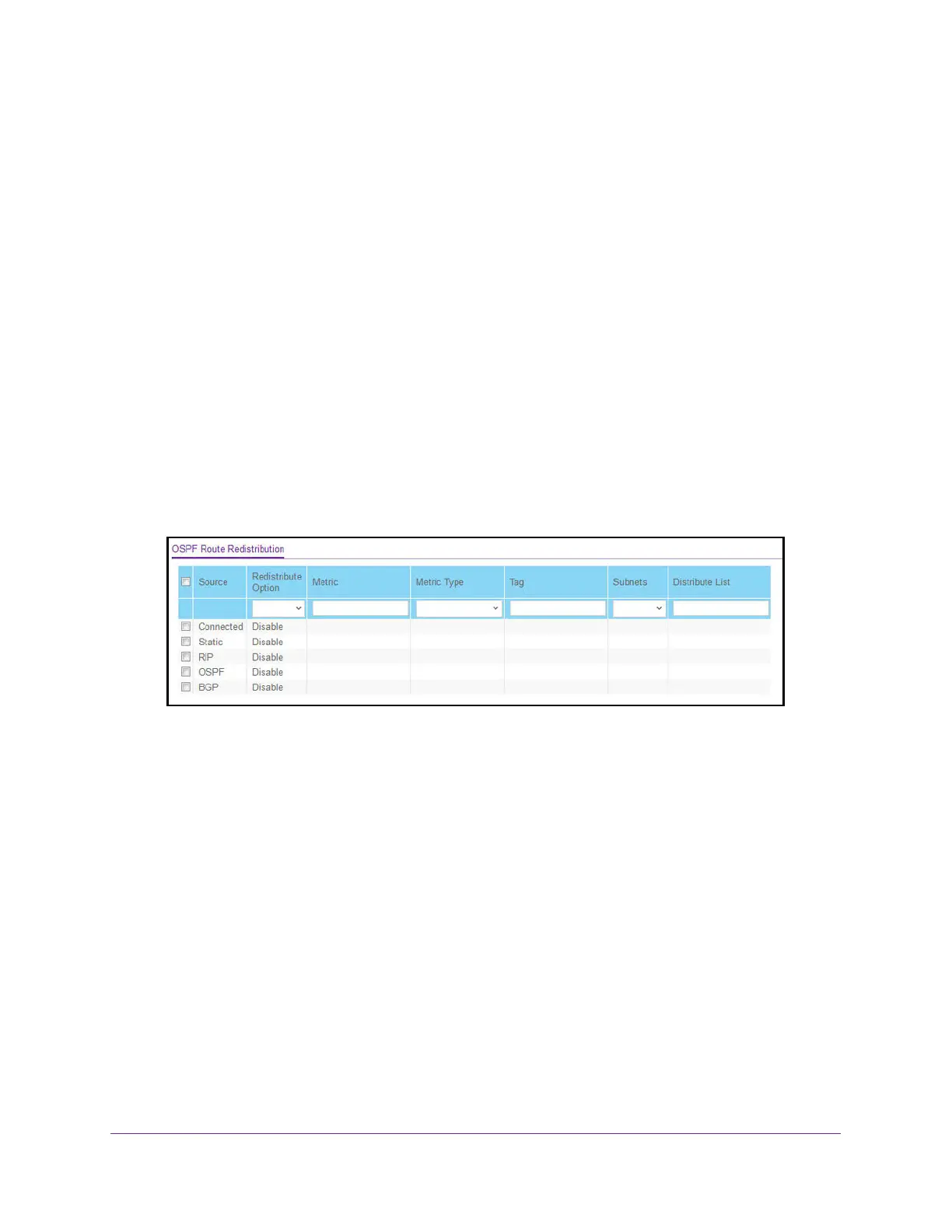

Configure the OSPF Route Redistribution
You can configure the OSPF Route Redistribution parameters. The allowable values for each
field are displayed next to the field. If any invalid values are entered, an alert message is
displayed with the list of all the valid values.
 Configure the OSPF route redistribution:
1. Launch a web browser.
2. In the address field of your web browser, enter the IP address of the switch.
The login window opens.
3. Enter the user name and password.
The default admin user name is
admin and the default admin password is blank, that is,
do not enter a password.
4. Click the Login button.
The System Information page displays.
5. Select Routing > OSPF >
Advanced > Route Redistribution.
6. From the
Source menu, select from the list of available source routes that were not
previously configured for redistribution by OSPF.
The valid values are as follows:
• BGP
• Connected
• OSPF
• RIP
• Static
7. In the
Redistribute list, select to Enable or Disable the redistribution for the selected
source protocol.
8. Set the Metric value to be used as the metric of redistributed routes.
This fields displays the metric if the source was preconfigured and can be modified. The
valid values are 0 to 16777214.
9. From the Metric T
ype
list, select the OSPF metric type of redistributed routes.
