Configure the OSPFv3 Common Area
To configure an OSPFv3 common area or return an OSPFv3 common area to the
normal state:
1. Launch a web browser.
2. In the address field of your web browser, enter the IP address of the switch.
The login window opens.
3. Enter the user name and password.
The default admin user name is
admin and the default admin password is blank, that is,
do not enter a password.
4. Click the Login button.
The System Information page displays.

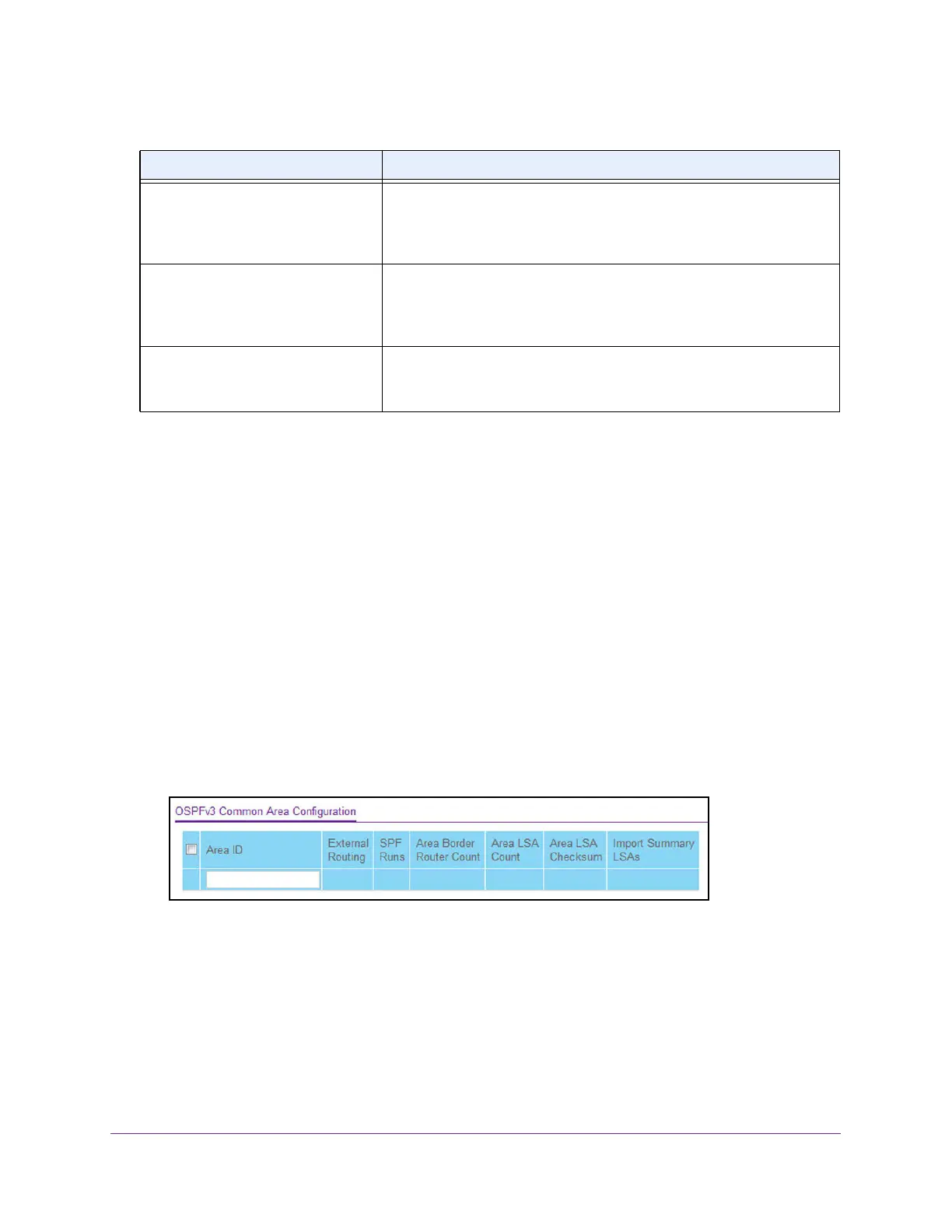

5. Select Routing > OSPFv3 >
Advanced > Common
Area Configuration.
6. In the Area ID field, enter the OSPF area ID.
An area ID is a 32-bit integer in dotted-decimal format that uniquely identifies the area to
which a router interface connects.
7. Take one of the following actions:
• Click the Add
button.
The area is configured as a common area.
• Click the Delete button.
External LSA Checksum The sum of the LS checksums of the external LSAs contained in the link
state database. This sum can be used to determine if there was a
change in a router's link state database, and to compare the link state
databases of two routers.
New LSAs Originated In any given OSPFv3 area, a router originates several LSAs. Each router
originates a router-LSA. If the router is also the designated router for any
of the area's networks, it originates network-LSAs for those networks.
This value represents the number of LSAs originated by this router
.
LSAs Received The number of LSAs received that were determined to be new
instantiations. This number does not include newer instantiations of
self-originated LSAs.
Table 138. Advanced OSPFv3 Configuration (continued)
Field Description
