P a g e | 110
UCM630X Series User Manual
Version 1.0.11.10
As the default LDAP phonebook with DN “ou=pbx,dc=pbx,dc=com” cannot be edited or deleted in LDAP
phonebook section, users cannot import contacts with Phonebook DN field “pbx” if existed in the CSV file.
Export phonebook to your computer from UCM630X LDAP server
Select the checkbox for the LDAP phonebook and then click on “Export Selected Phonebook” to export the
selected phonebook. The exported phonebook can be used as a record or a sample CSV, VFC or XML file for
the users to add more contacts in it and import to the UCM630X again.

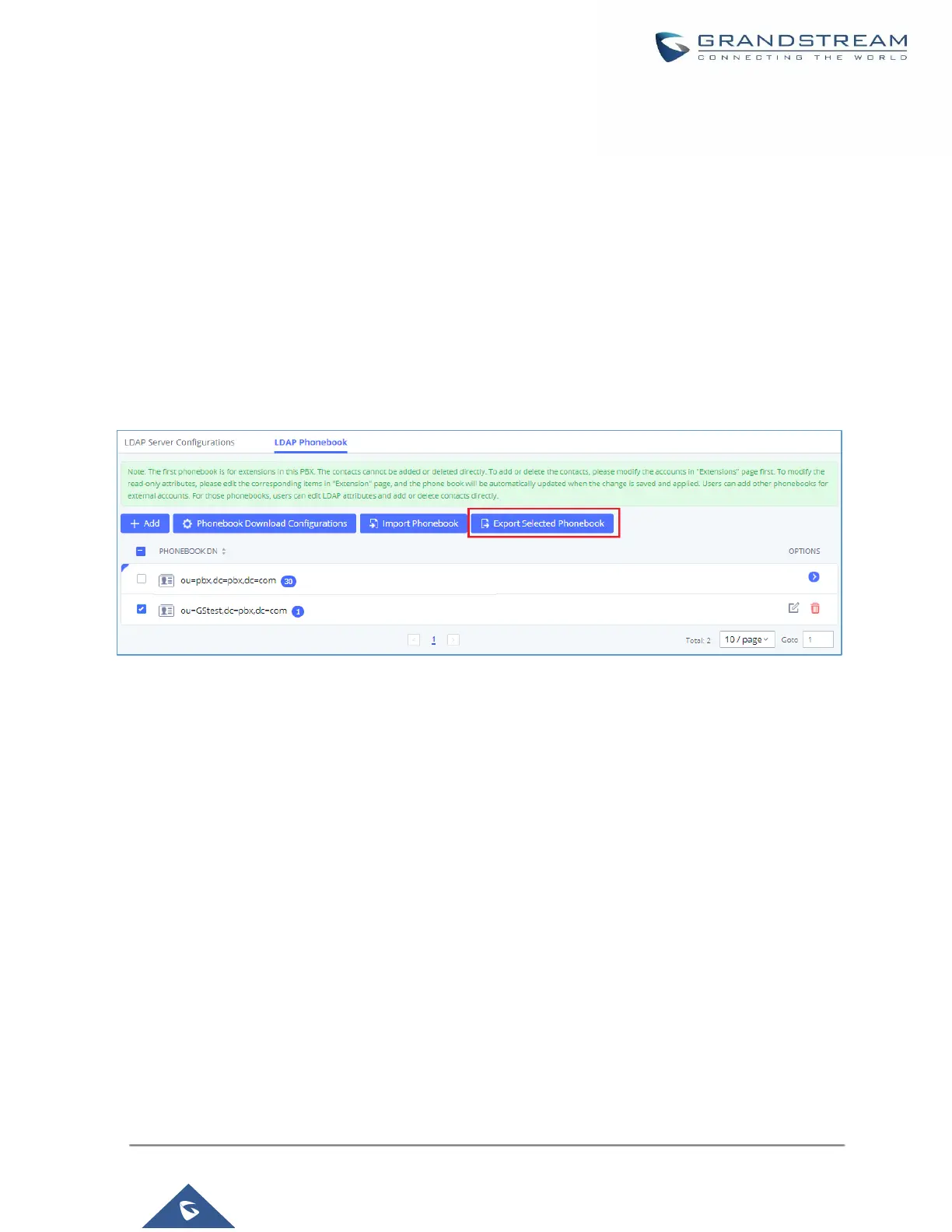

Figure 46: Export Selected LDAP Phonebook
LDAP Client Configurations
The configuration on LDAP client is useful when you use other LDAP servers. Here we provide an example on
how to configure the LDAP client on the UCM.
Assuming the remote server base dn is dc=pbx,dc=com”, configure the LDAP client as follows:
LDAP Server : Enter a name for the remote LDAP server
Server Address : Enter the IP address or domain name for remote LDAP server.
Base DN: dc=pbx,dc=com
Username: Enter username if authentication is required
Password: Enter password if authentication is required
Filter: Enter the filter. Ex: (|(CallerIDName=%)(AccountNumber=%))
