P a g e | 80

UCM630X Series User Manual

Version 1.0.11.10

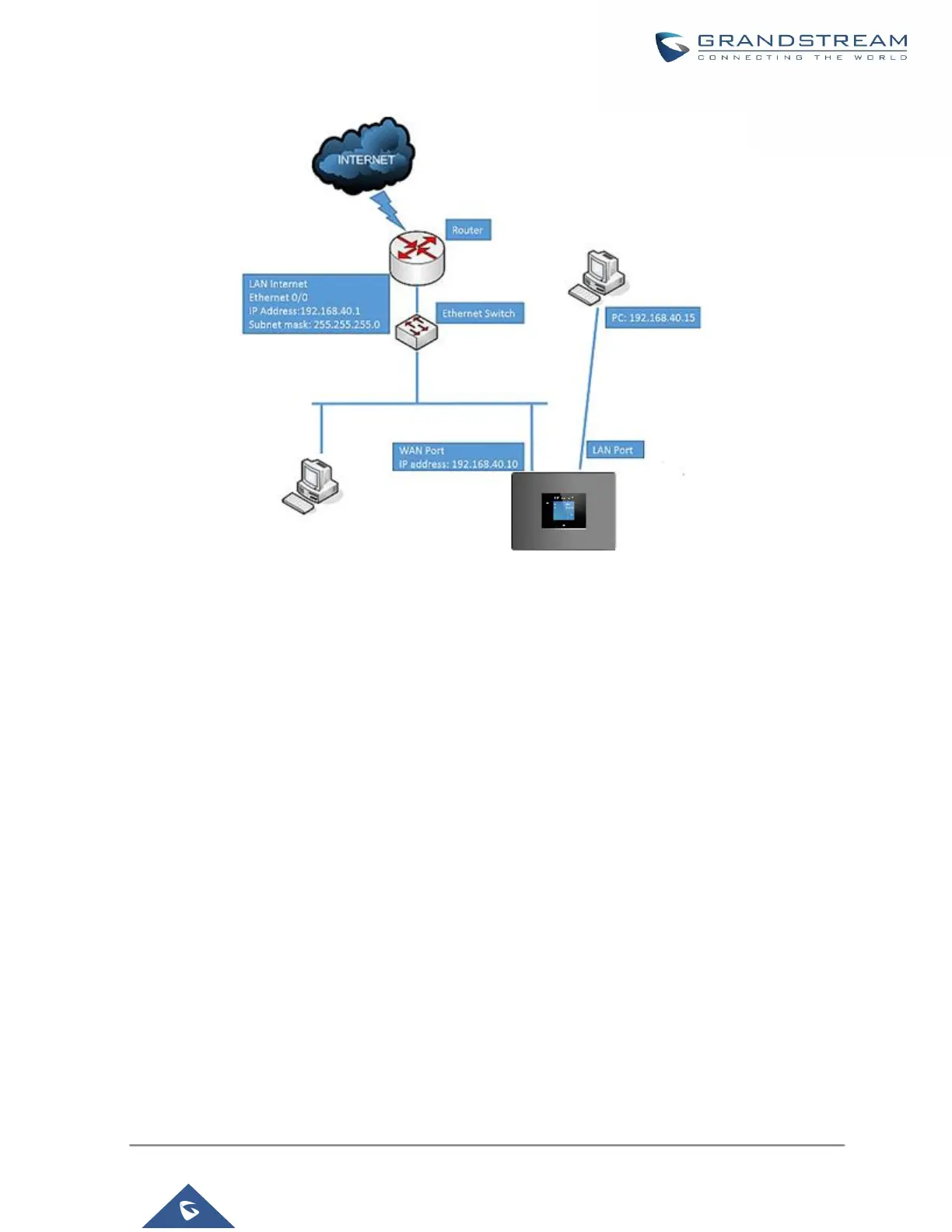

Figure 20: UCM6302 Network Interface Method: Switch

• Method: Dual

Both WAN port and LAN port are used for the uplink connection. Users will need to assign LAN 1 or LAN 2

as the default interface in option "Default Interface" and configure "Gateway IP" if static IP is used for this

interface.
