P a g e | 453

UCM630X Series User Manual

Version 1.0.11.10

Transparent Call-Info header

UCM supports transparent call info header in order to integrate GDS door system with GXP21XX/GRP261X

phones, the UCM will forward the call-info header to the phone in order to request the live view from GDS door

system and give the option to open the door via softkey.

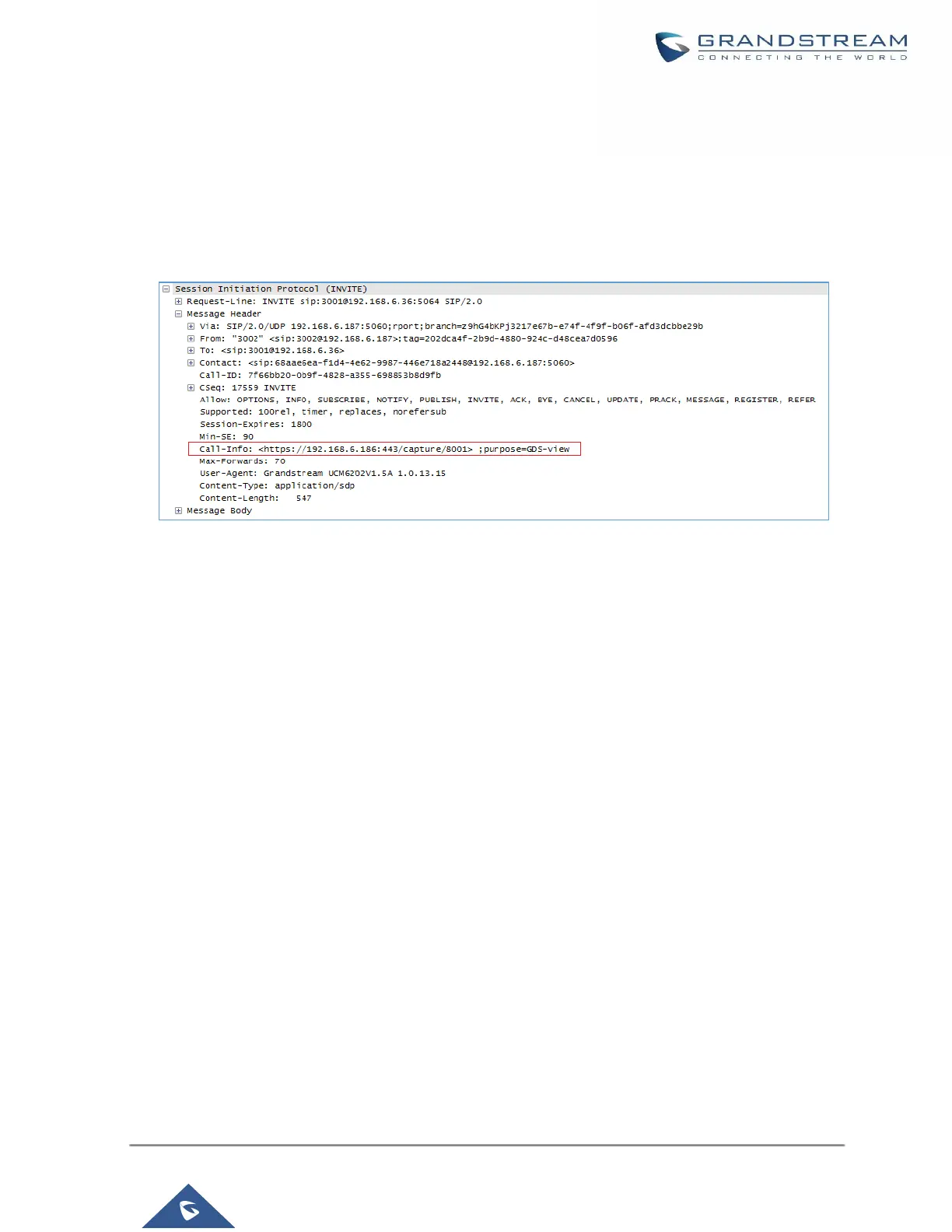

Figure 246: Transparent Call-Info
