P a g e | 168

UCM630X Series User Manual

Version 1.0.11.10

EXTENSIONS

Create New User

Create New SIP Extension

To manually create a new SIP user, go to Web GUI→Extension/Trunk→Extensions. Click on "Add" and a new

window will show for users to fill in the extension information.

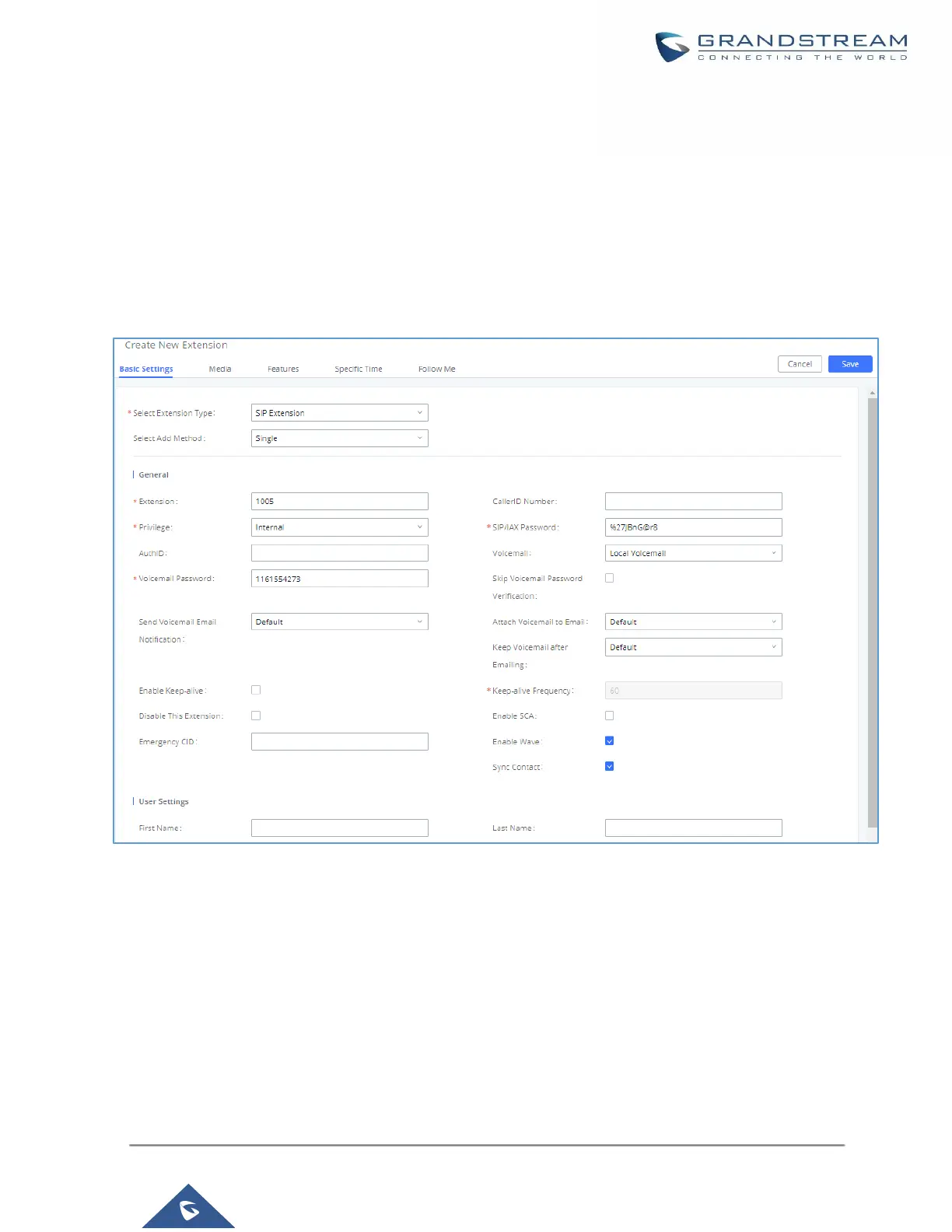

Figure 85: Create New Device

Extension options are divided into four categories:

• Basic Settings

• Media

• Features

• Specific Time
