P a g e | 300

UCM630X Series User Manual

Version 1.0.11.10

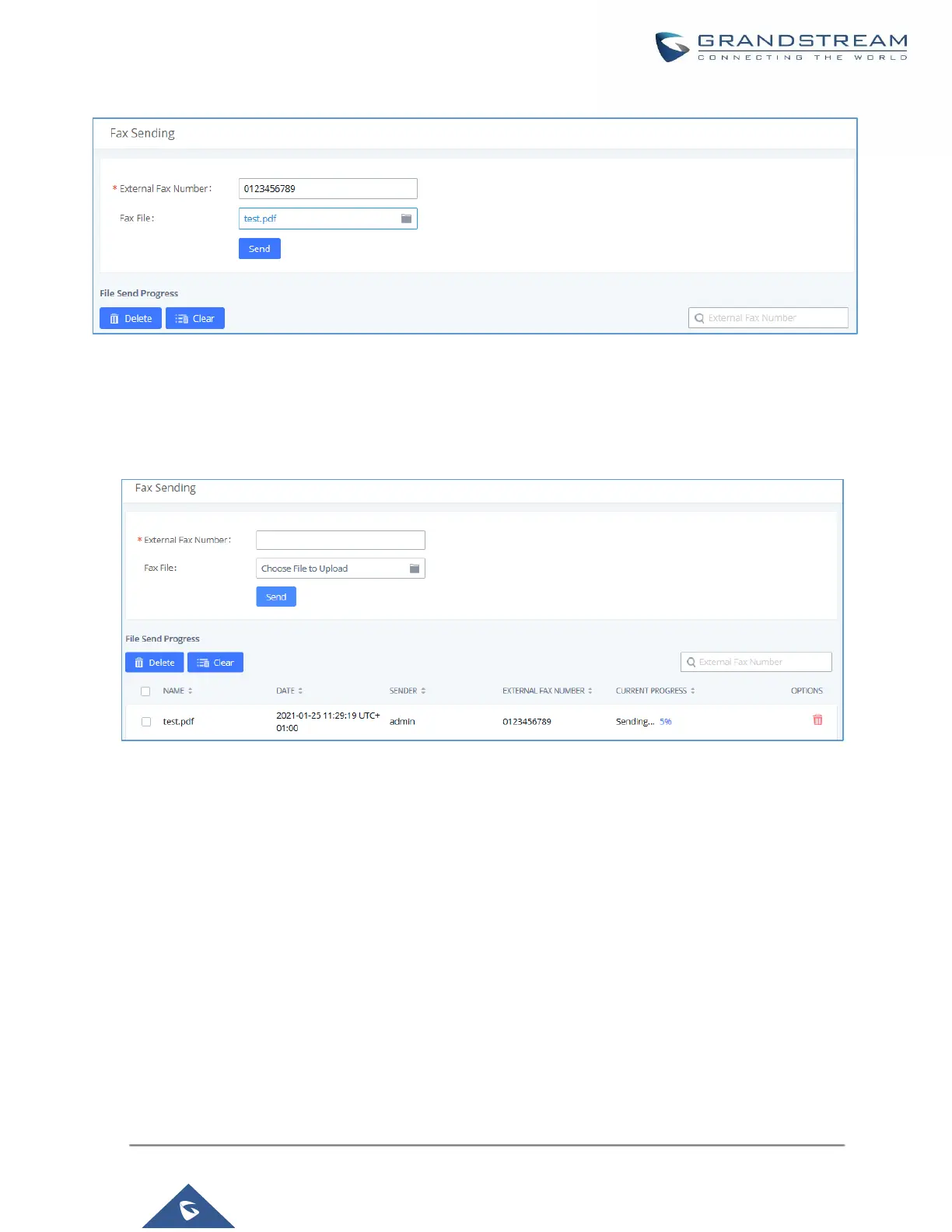

Figure 141: Fax Sending in Web GUI

After that you can see the ongoing sending operation on the progress bar.

Figure 142: Fax Send Progress

Note: Only A3, A4, and B4 paper sizes are supported for the Fax Sending.
