P a g e | 586

UCM630X Series User Manual

Version 1.0.11.10

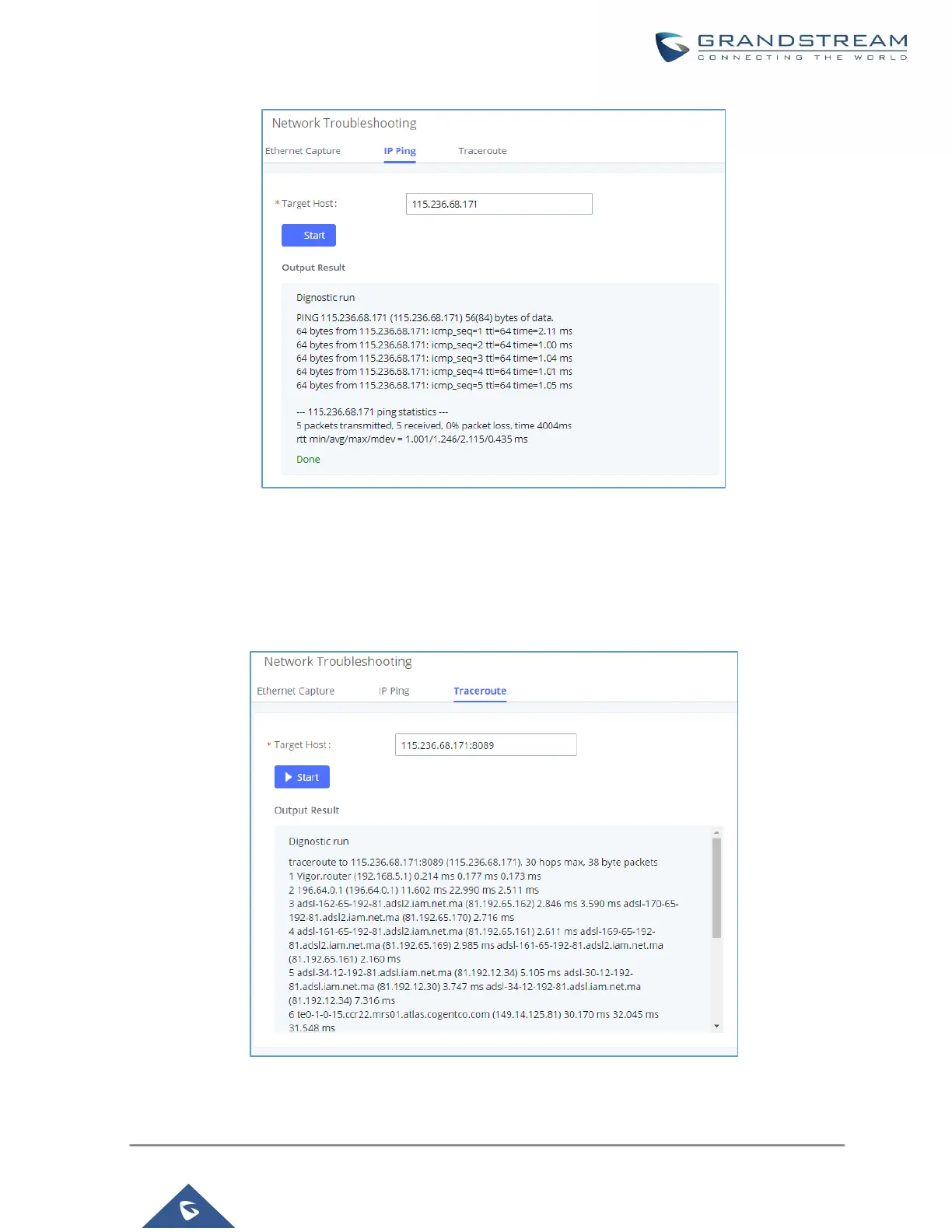

Figure 365: Ping

Traceroute

Enter the target host in host name or IP address. Then press "Start" button. The output result will dynamically

display in the window below.

Figure 366: Traceroute
