SPEED DIAL

The UCM630X supports Speed Dial feature that allows users to call a certain destination by pressing one or four

digits on the keypad. This creates a system-wide speed dial access for all the extensions on the UCM630X.

To enable Speed Dial, on the UCM630X Web GUI, go to page Web GUI→Call Features→Speed Dial.

User should first click on . Then decide from one digit up to four digits combination used for Speed

Dial and select a dial destination from “Default Destination”. The supported destinations include extension,

voicemail, conference room, voicemail group, IVR, ring group, call queue, page group, DISA, Dial by Name and

external number.

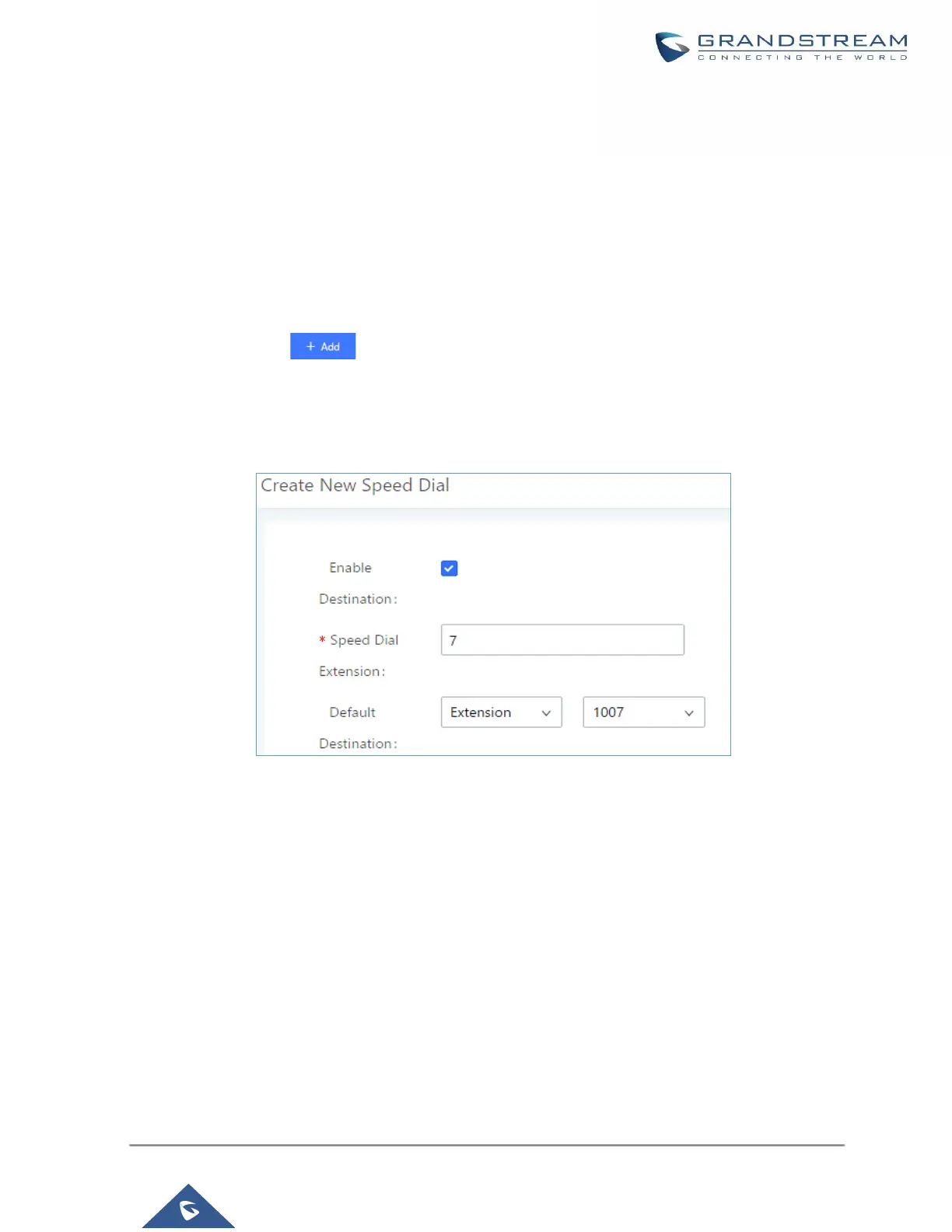

Figure 209: Speed Dial Destinations
