P a g e | 230

UCM630X Series User Manual

Version 1.0.11.10

Multiple Registrations per Extension

UCM630X supports multiple registrations per extension so that users can use the same extension on devices in

different locations.

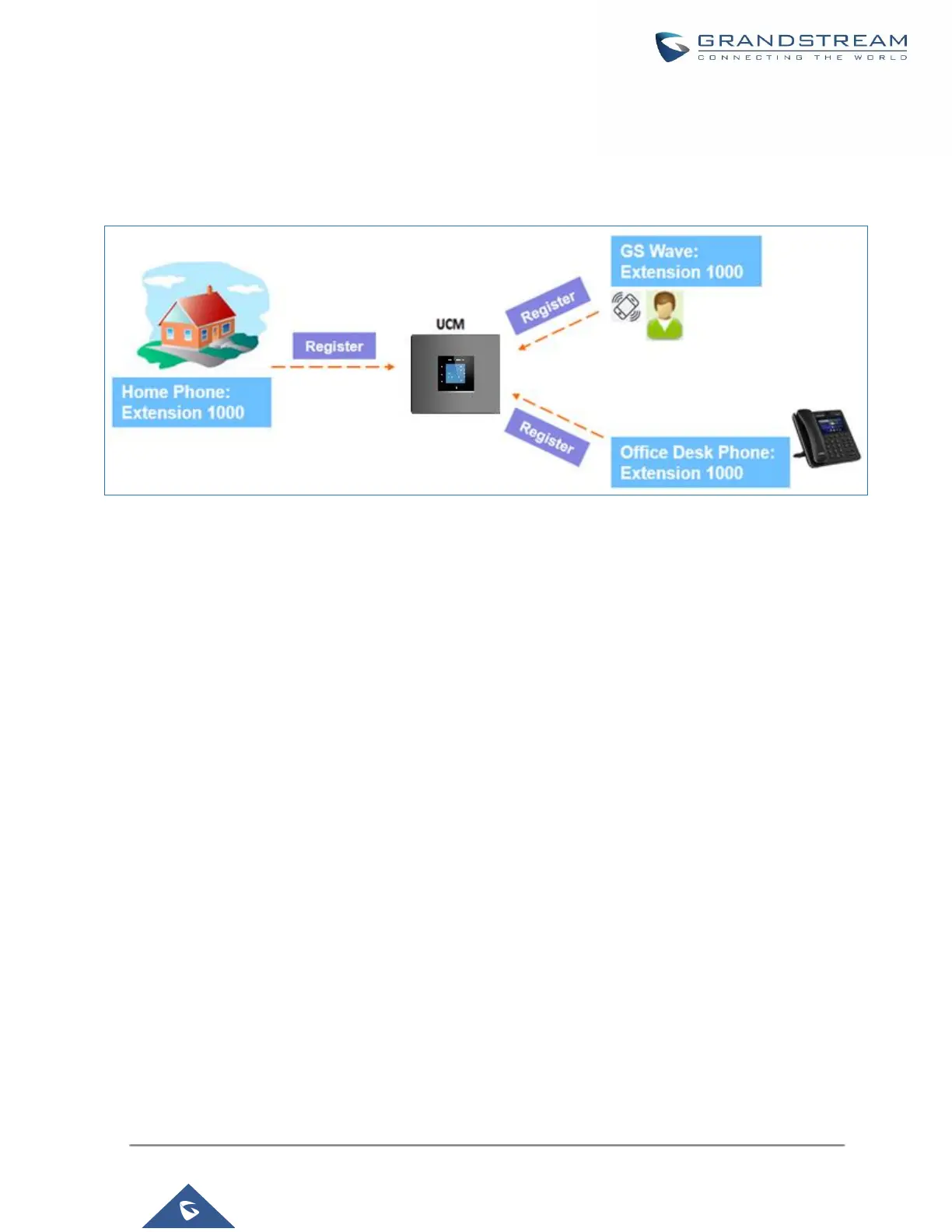

Figure 95: Multiple Registrations per Extension

This feature can be enabled by configuring the option “Concurrent Registrations” under Web

GUI→Extension/Trunk→Edit Extension. The default value is set to 1 for security purposes. The maximum is

10.
