P a g e | 555

UCM630X Series User Manual

Version 1.0.11.10

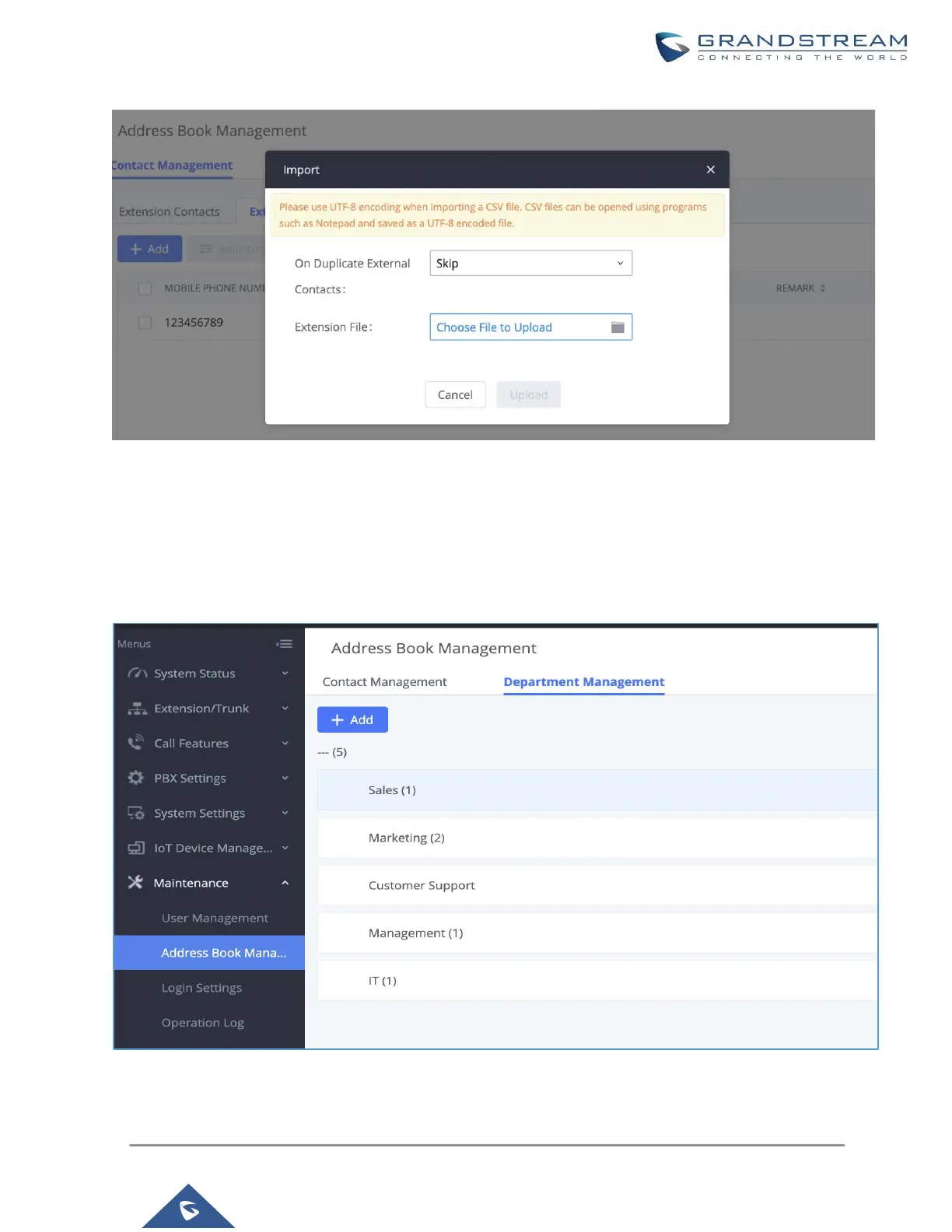

Figure 336: Import External Contacts

Department Management

UCM admin can create and edit department to assign to the contacts. Up to 50 department can be added and

up to 5 levels are supported.

Figure 337: Department Management
