P a g e | 241

UCM630X Series User Manual

Version 1.0.11.10

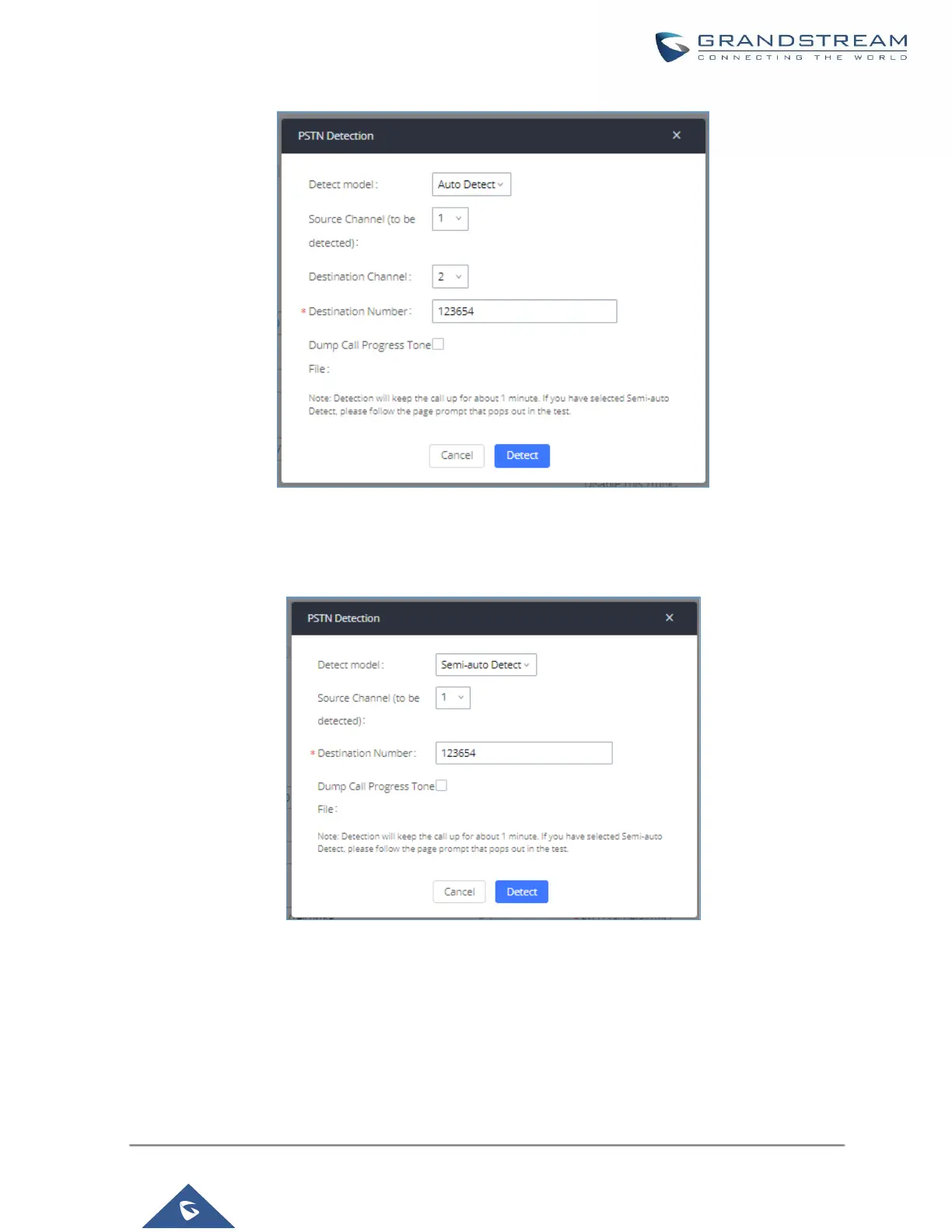

Figure 102: UCM630X PSTN Detection: Auto-Detect

• If there is only one FXO port connected to the PSTN line, use the following settings for auto-detection.

Figure 103: UCM630X PSTN Detection: Semi-Auto Detect

Detect Model: Semi-auto Detect.

Source Channel: The source channel to be detected.
