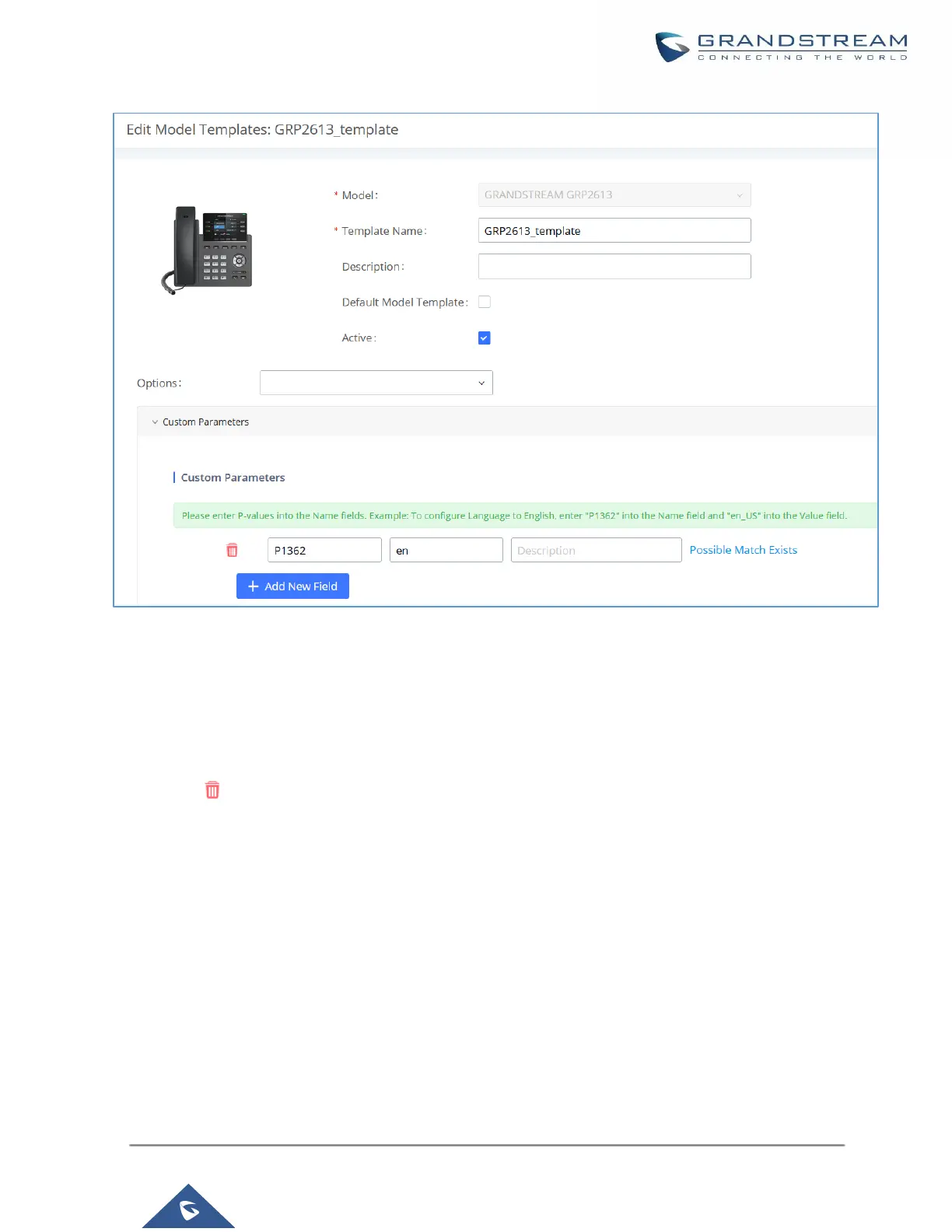

Figure 70: Edit Model Template

• Click on Save when done. The model template will be displayed on Web GUI→Value-added

Features→Zero Config→Model Templates page.

• Click on to delete the model template or click on “Delete Selected Templates” to delete multiple selected

templates at once.

• Click on “Toggle Selected Template(s)” to toggle the status between enabled/disabled for the selected model

templates.

• Click on the "Import/Export" button to upload/export the model template list in .CSV format.

Model Update

UCM630X Zero Config feature supports provisioning all models of Grandstream SIP end devices including OEM

device models.
