P a g e | 319

UCM630X Series User Manual

Version 1.0.11.10

IVR

Configure IVR

IVR configurations can be accessed under the UCM630X Web GUI→Call Features→IVR. Users could create,

edit, view, and delete an IVR.

• Click on "Add" to add a new IVR.

• Click on to edit the IVR configuration.

• Click on to delete the IVR.

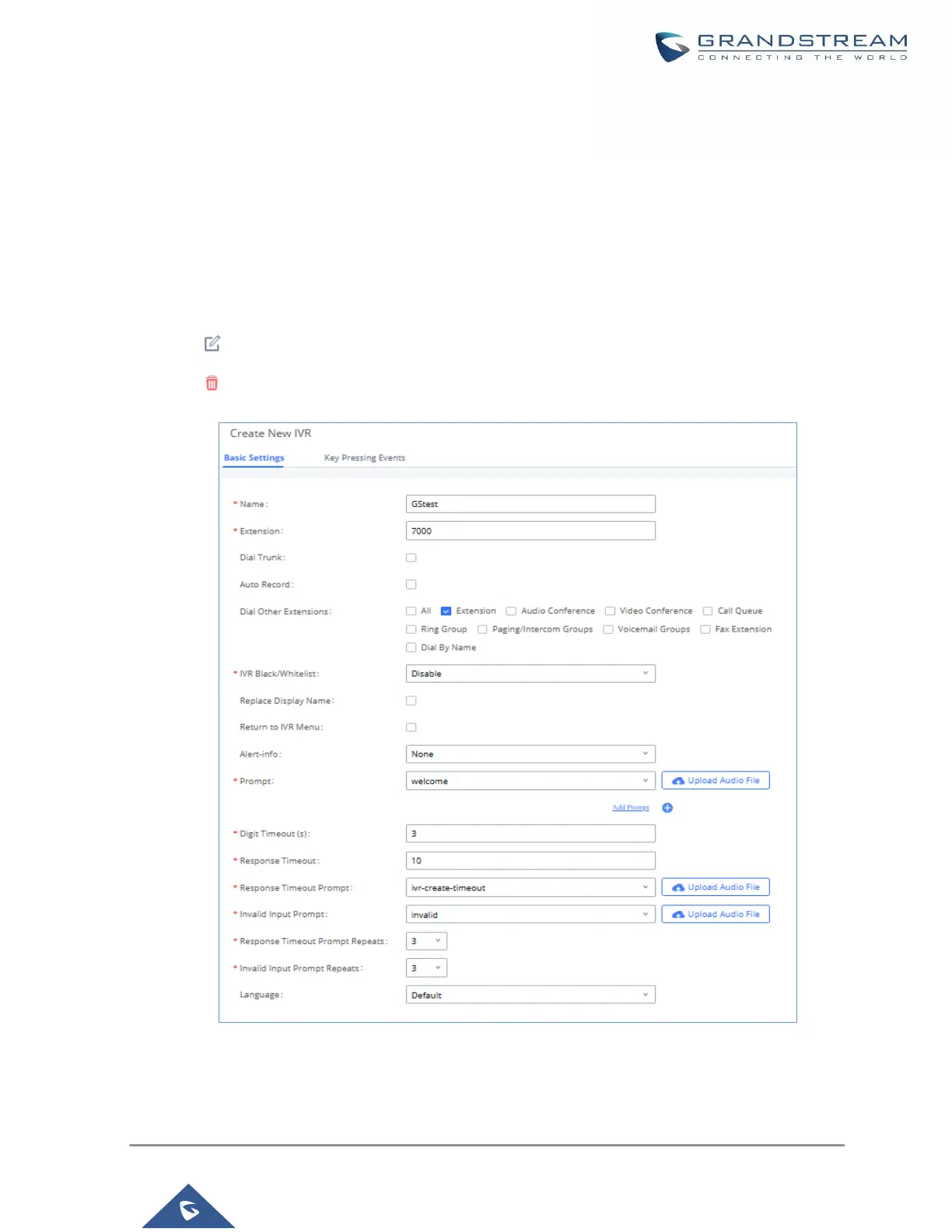

Figure 158: Create New IVR

Table 76: IVR Configuration Parameters
