P a g e | 240

UCM630X Series User Manual

Version 1.0.11.10

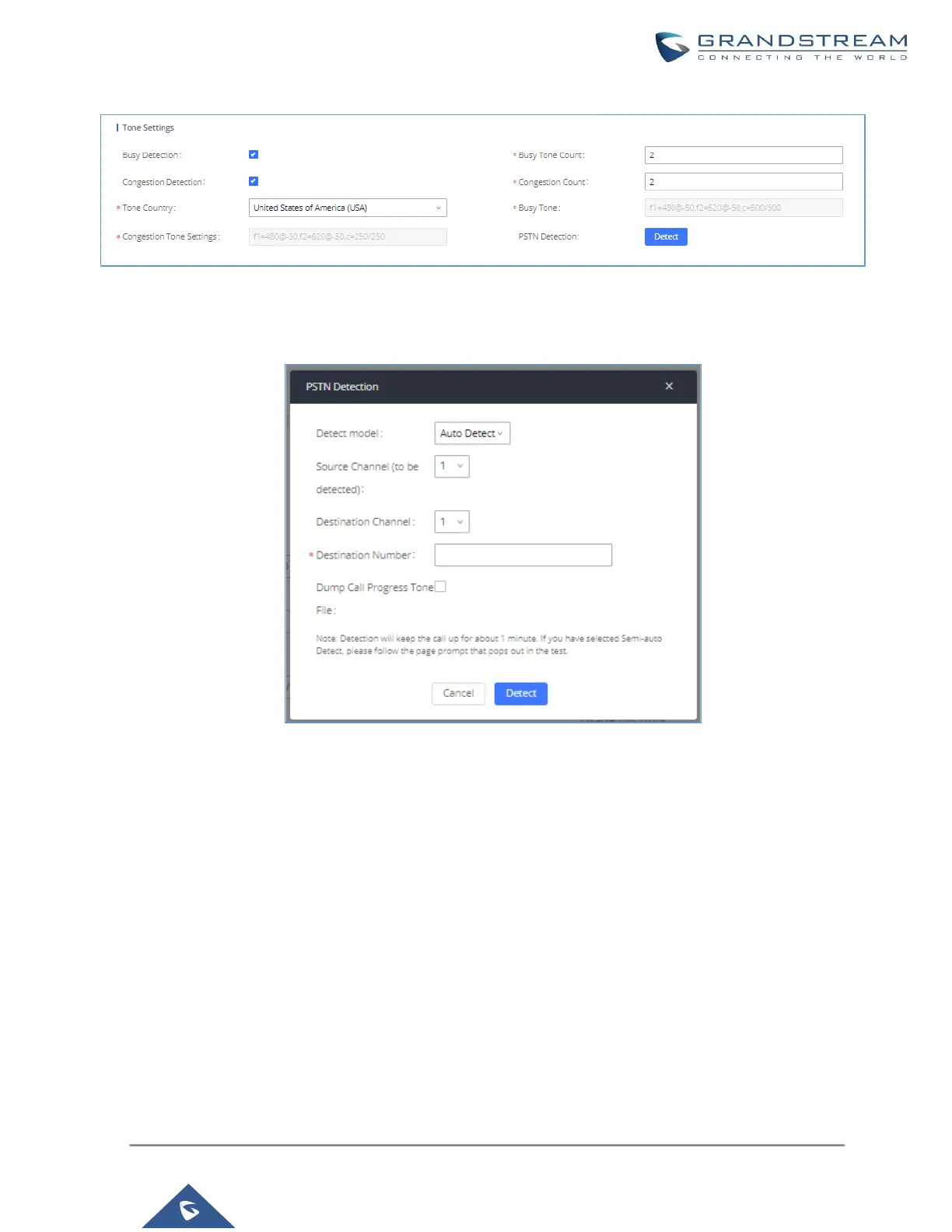

Figure 100: UCM630X FXO Tone Settings

4. Click on "Detect" to start PSTN detection.

Figure 101: UCM630X PSTN Detection

• If there are two FXO ports connected to PSTN lines, use the following settings for auto-detection.

Detect Model: Auto Detect.

Source Channel: The source channel to be detected.

Destination Channel: The channel to help detect. For example, the second FXO port.

Destination Number: The number to be dialed for detecting. This number must be the actual PSTN

number for the FXO port used as the destination channel.
