UCM630X Series User Manual

Version 1.0.11.10

FOLLOW ME

Follow Me is a feature on the UCM630X that allows users to direct calls to other phone numbers and have them

ring all at once or one after the other. Calls can be directed to users’ home phone, office phone, mobile and etc.

The calls will get to the user no matter where they are. Follow Me option can be found under extension settings

page Web GUI→Extension/Trunk→Extensions.

To configure follow me:

1. Choose the extension and click on .

2. Go to the Follow me tab to add destination numbers and enable the feature.

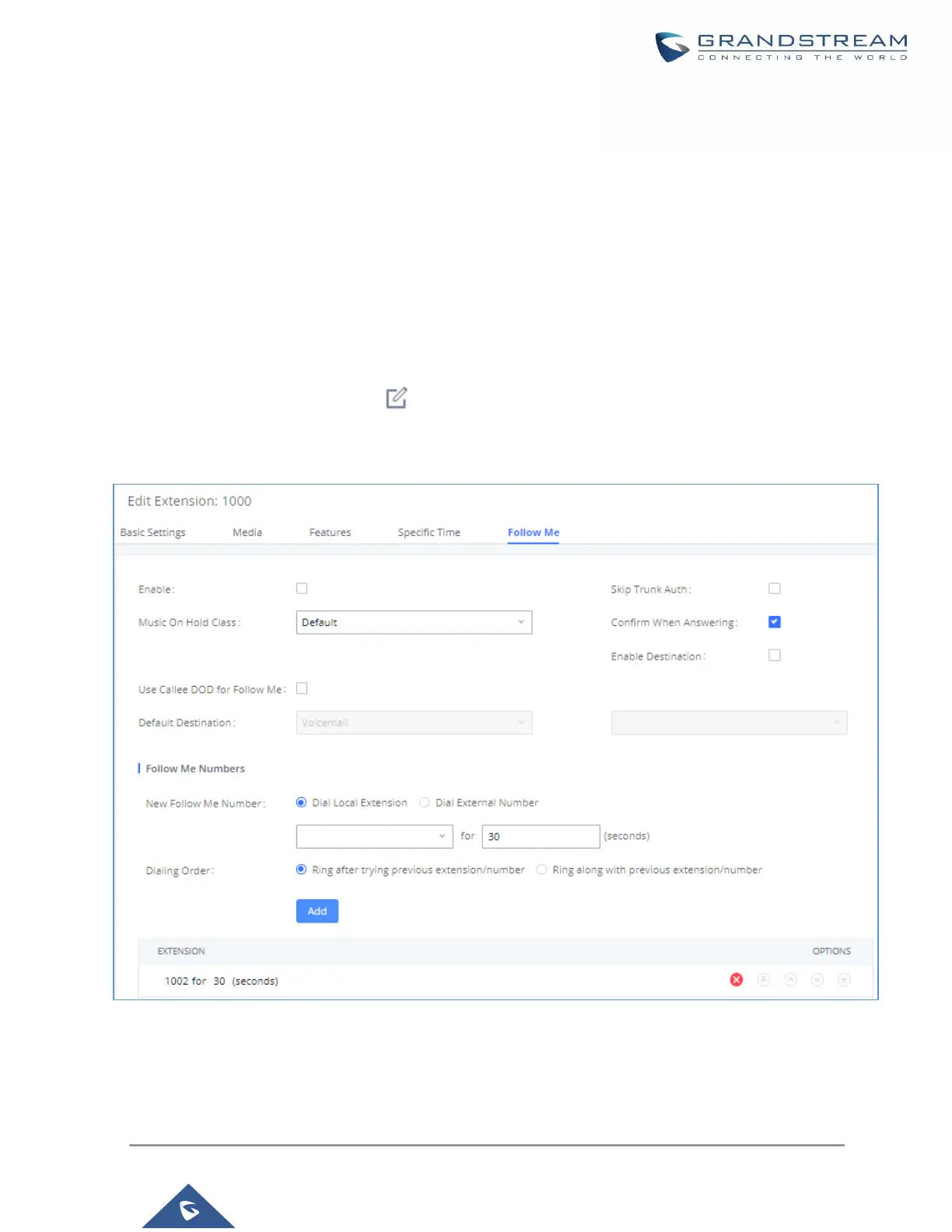

Figure 208: Edit Follow Me
