P a g e | 325

UCM630X Series User Manual

Version 1.0.11.10

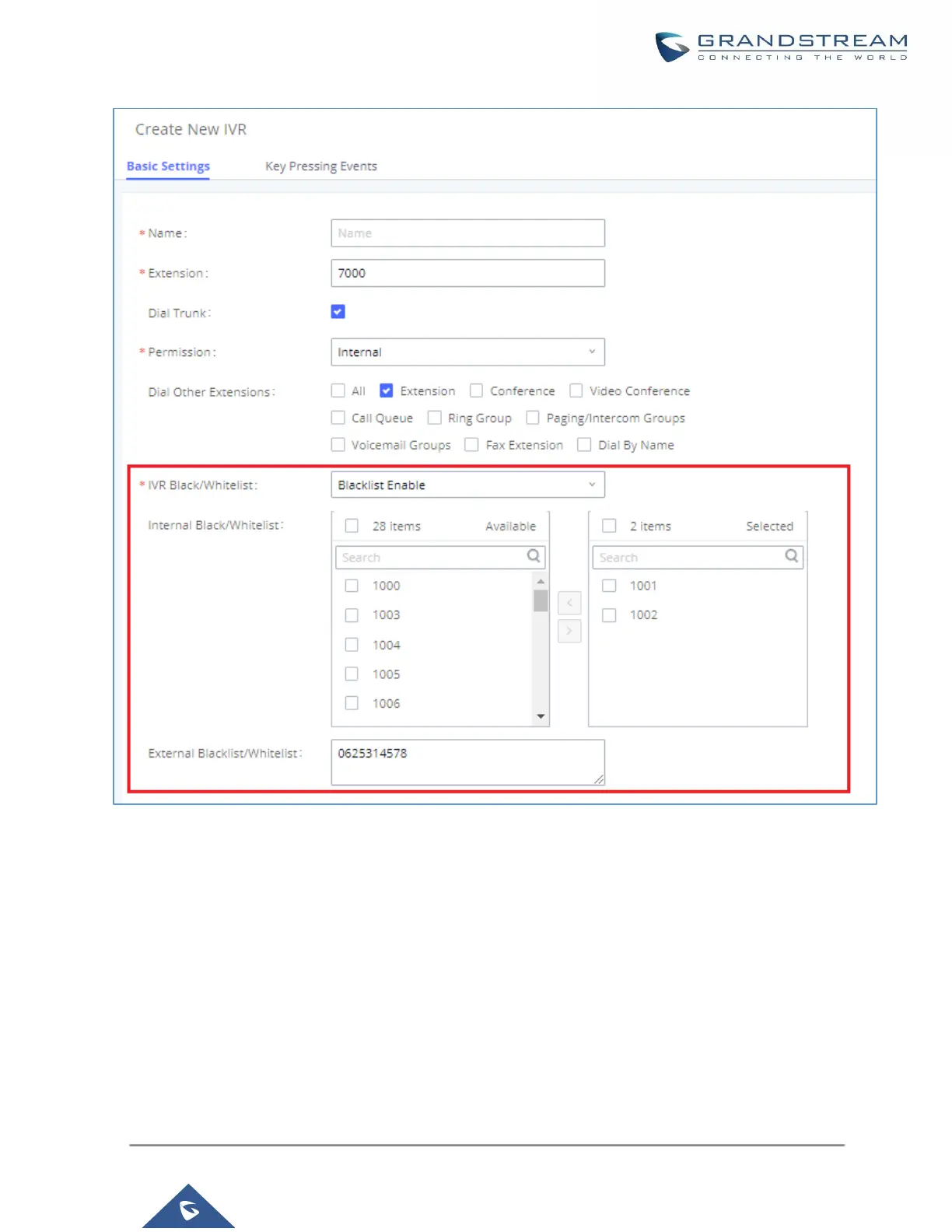

Figure 160: Black/Whitelist

Create Custom Prompt

To record new IVR prompt or upload IVR prompt to be used in IVR, click on “Upload Audio File” next to the

“Welcome Prompt” option and the users will be redirected to Custom Prompt page. Or users could go to Web

GUI→PBX Settings→Voice Prompt→Custom Prompt page directly.
