P a g e | 377

UCM630X Series User Manual

Version 1.0.11.10

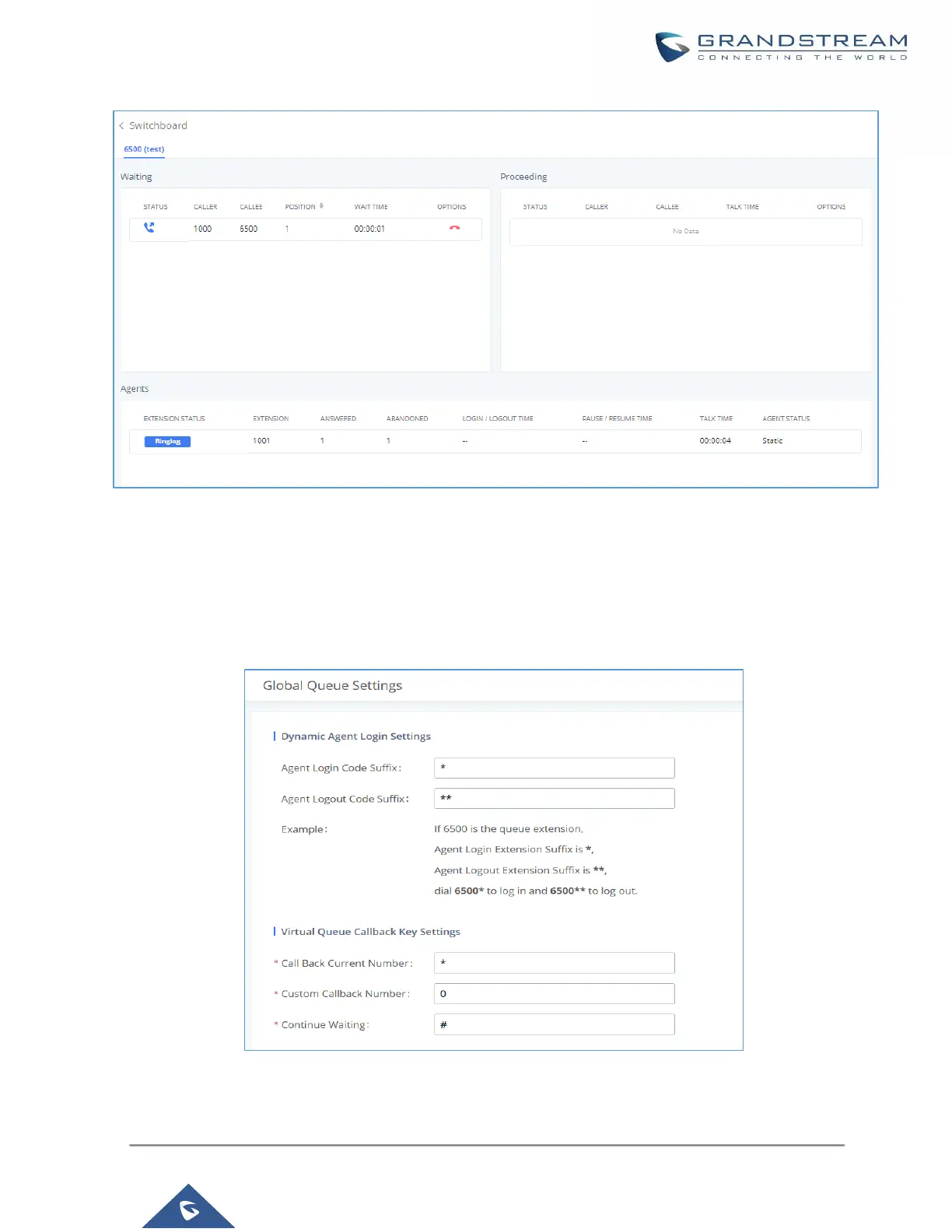

Figure 196: Queue Agent

Global Queue Settings

As explained before, under this section users can configure the feature codes for Dynamic agent login and

logout, and also can now customize the keys for virtual queue options like shown below.

Figure 197: Global Queue Settings
