Table 148: CDR Statistics Filter Criteria

Trunk Type

Select one of the following trunk type.

• All

• SIP Calls

• PSTN Calls

Call Type

Select one or more in the following checkboxes.

• Inbound calls

• Outbound calls

• Internal calls

• External calls

• All calls

Time Range

• By month (of the selected year).

• By week (of the selected year).

• By day (of the specified month for the year).

• By hour (of the specified date).

• By range. For example, 2016-01 To 2016-03.

Recording Files

This page lists all the recording files recorded by "Auto Record" per extension/ring group/call queue/trunk, or via

feature code "Audio Mix Record". If external storage device is plugged in, for example, SD card or USB drive,

the files are stored on the external storage. Otherwise, internal storage will be used on the UCM630X.

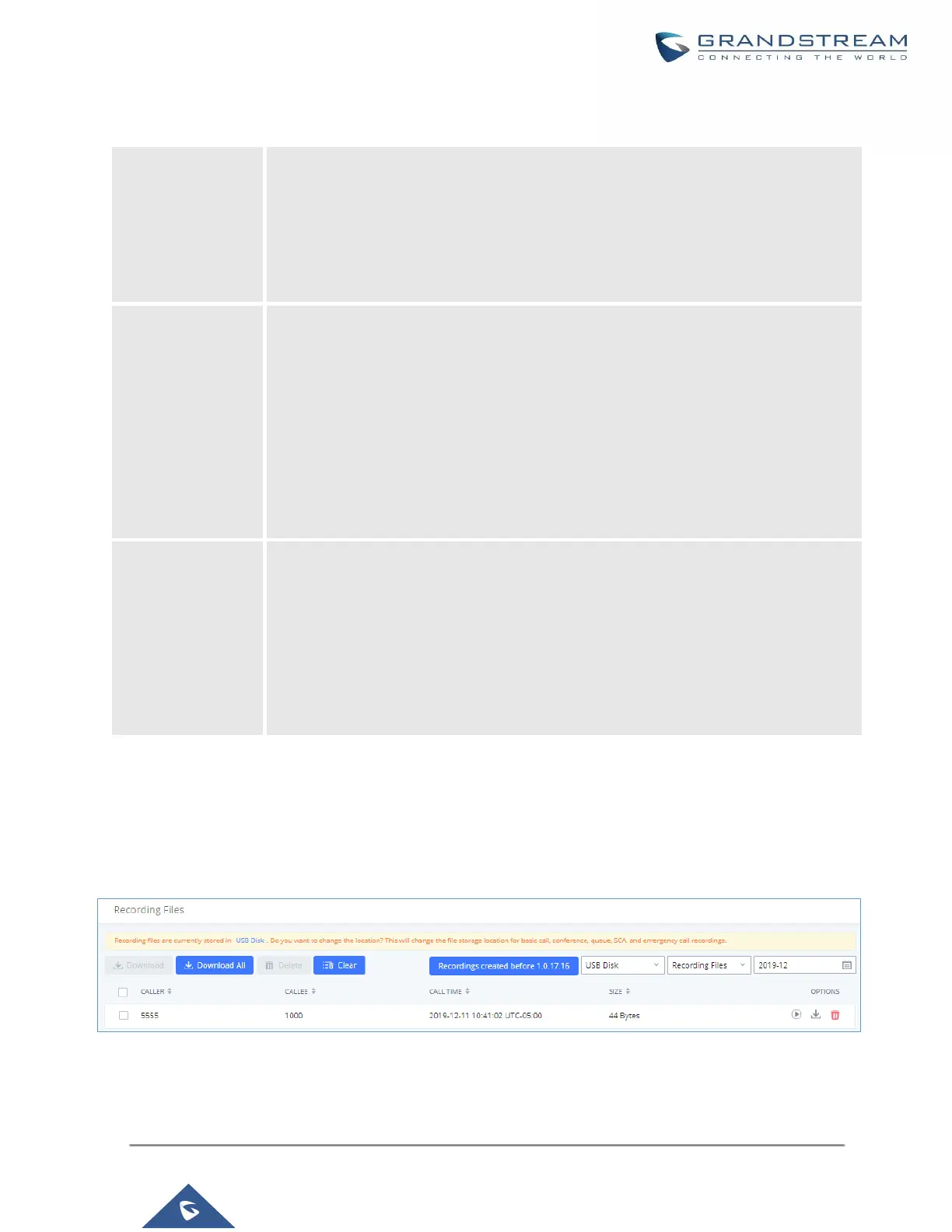

Figure 321: CDR→Recording Files
