Grandstream Networks UCM630X Series - Figure 165: Voice Prompt Package List; Figure 166: New Voice Prompt Language Added

To Next Page

To Previous Page

P a g e | 329

UCM630X Series User Manual

Version 1.0.11.10

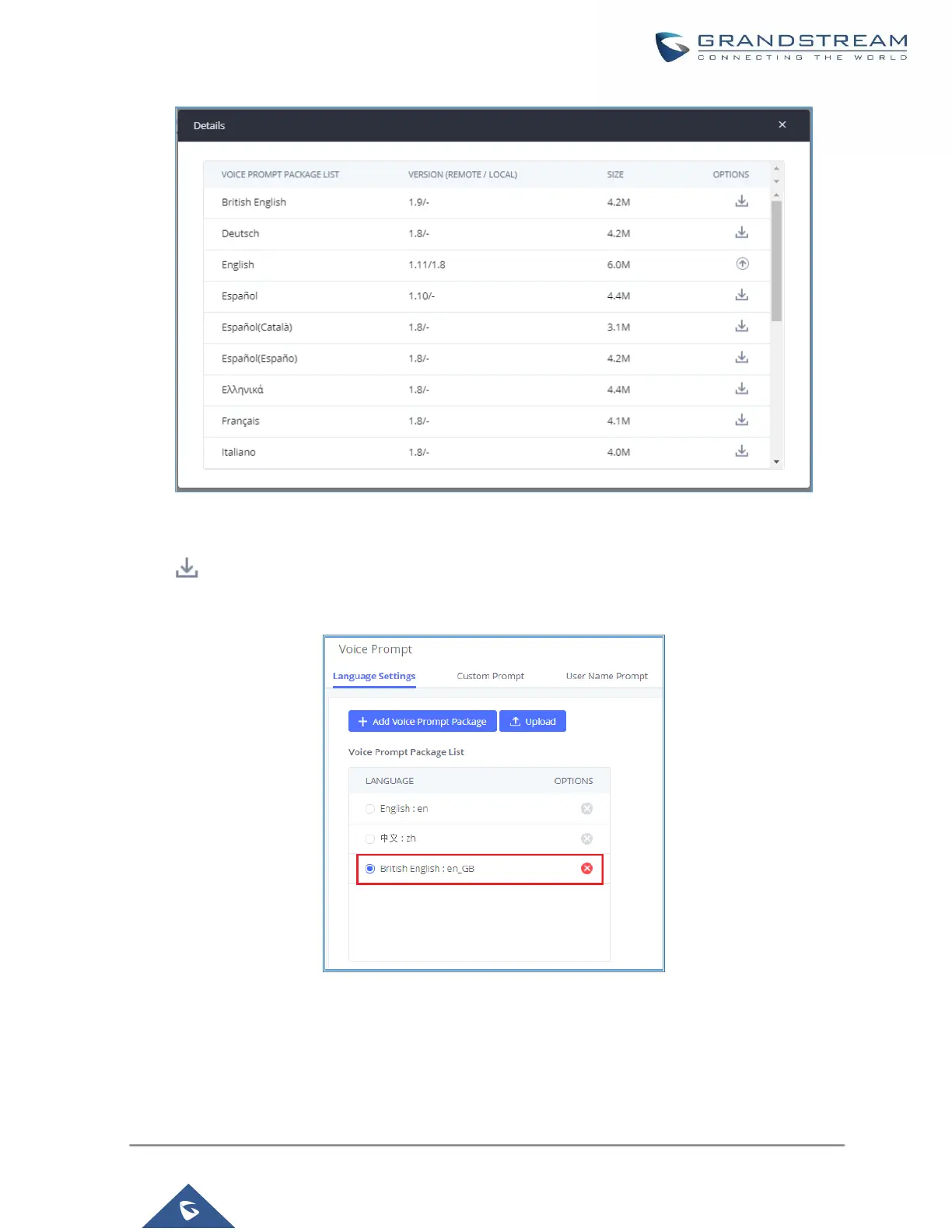

Figure 165: Voice Prompt Package List

Click on to download the language to the UCM630X. The installation will be automatically started once the

downloading is finished.

Figure 166: New Voice Prompt Language Added

A new language option will be displayed after successfully installed. Users then could select it to apply in the

UCM630X system voice prompt or delete it from the UCM630X.
