P a g e | 218

UCM630X Series User Manual

Version 1.0.11.10

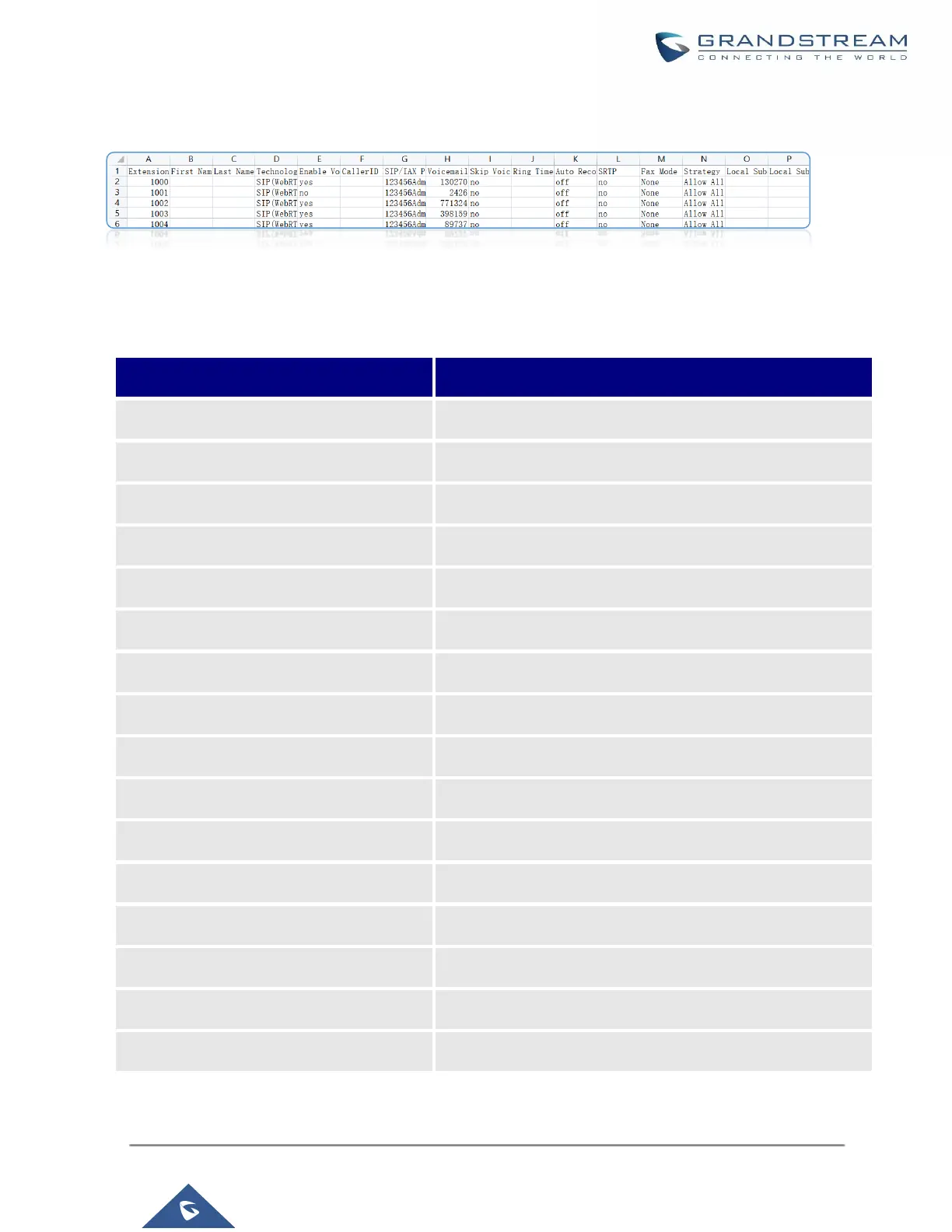

Example of a file to import:

Figure 89: Import File

Table 55: SIP extensions Imported File Example

Field

Supported values

Extension

Digits

Technology

SIP/SIP(WebRTC)

Enable Voicemail

yes/no/remote

CallerID Number

Digits

SIP/IAX Password

Alphanumeric characters

Voicemail Password

Digits

Skip Voicemail Password Verification

yes/no

Ring Timeout

Empty/ 3 to 600 (in second)

SRTP

yes/no

Strategy

Allow All/Local Subnet Only/A Specific IP Address

Local Subnet 1

IP address/Mask

Local Subnet 2

IP address/Mask

Local Subnet 3

IP address/Mask

Local Subnet 4

IP address/Mask

Local Subnet 5

IP address/Mask

Local Subnet 6

IP address/Mask
