P a g e | 508

UCM630X Series User Manual

Version 1.0.11.10

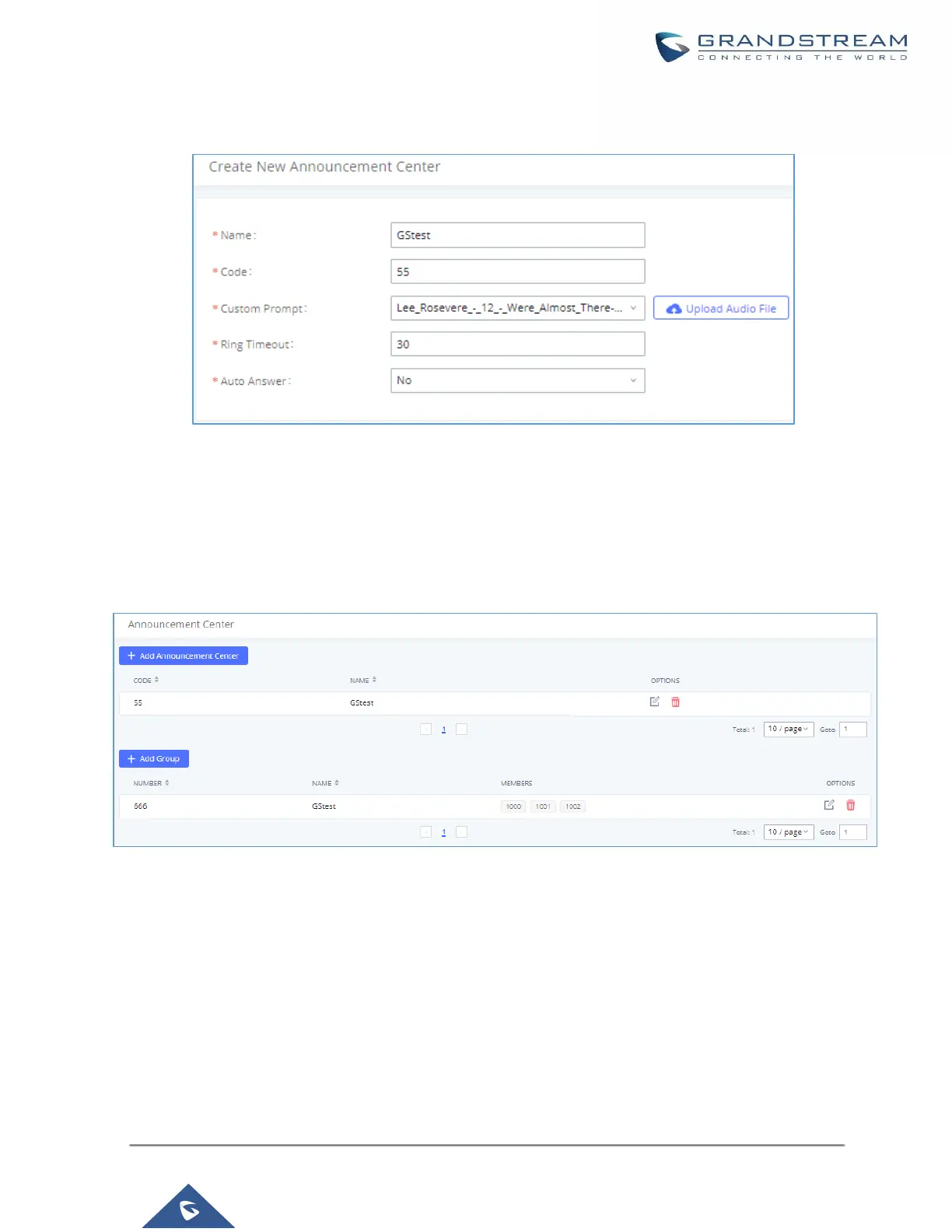

Figure 290: Announcements Center Code Configuration

Code and Group number are used together to direct specified message to the target group. All extensions in

the group will receive the message. For example, we can send code 55 to group 666 by dialing 55666 from

any extension registered to the UCM630X. All the members in group 666 which are extension 1000, 1001 and

1002 will receive this voice message after they pick up the call.

Figure 291: Announcements Center Example
