P a g e | 366

UCM630X Series User Manual

Version 1.0.11.10

Static Agents limitation:

To guarantee a high level of audio quality with the call queue feature, UCMs will limit the number of static agents

allowed to be assigned depending on the UCM model used. If the user attempts to configure the number of static

agents to be more than the maximum allowed number, a warning message will appear.

The following table lists the maximum number of static agents for each UCM model:

Table 89: Static Agent Limitation

UCM Model

Max Static Agents in Call Queue

UCM6301

UCM6302

UCM6304

UCM6308

160

Click on "Global Queue Settings" to configure Agent Login Extension Postfix and Agent Logout Extension Postfix.

Once configured, users could log in the call queue as dynamic agent.

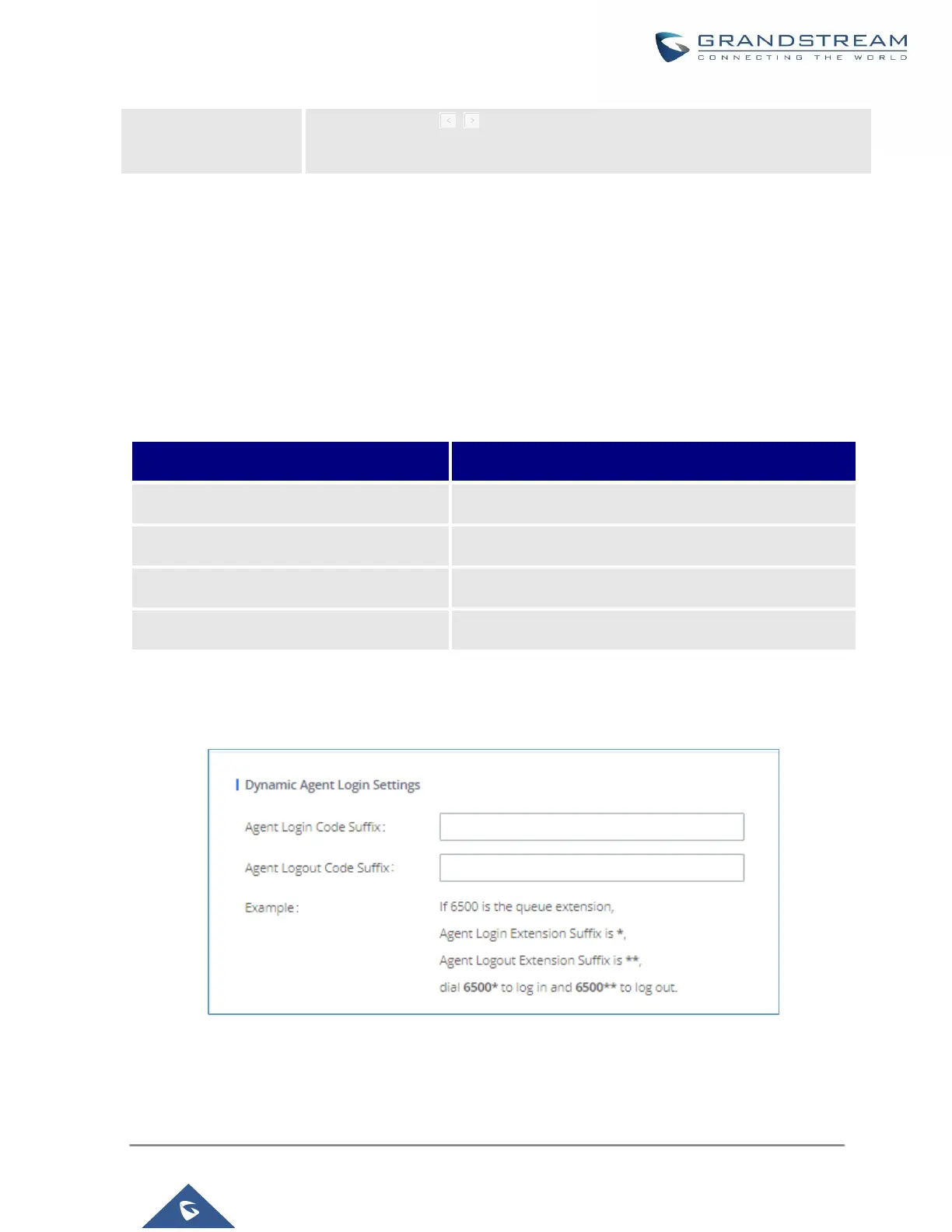

Figure 186: Agent Login Settings

the right. Click on to choose. And use UP and Down arrow to select the

order of the agent within the call queue.
