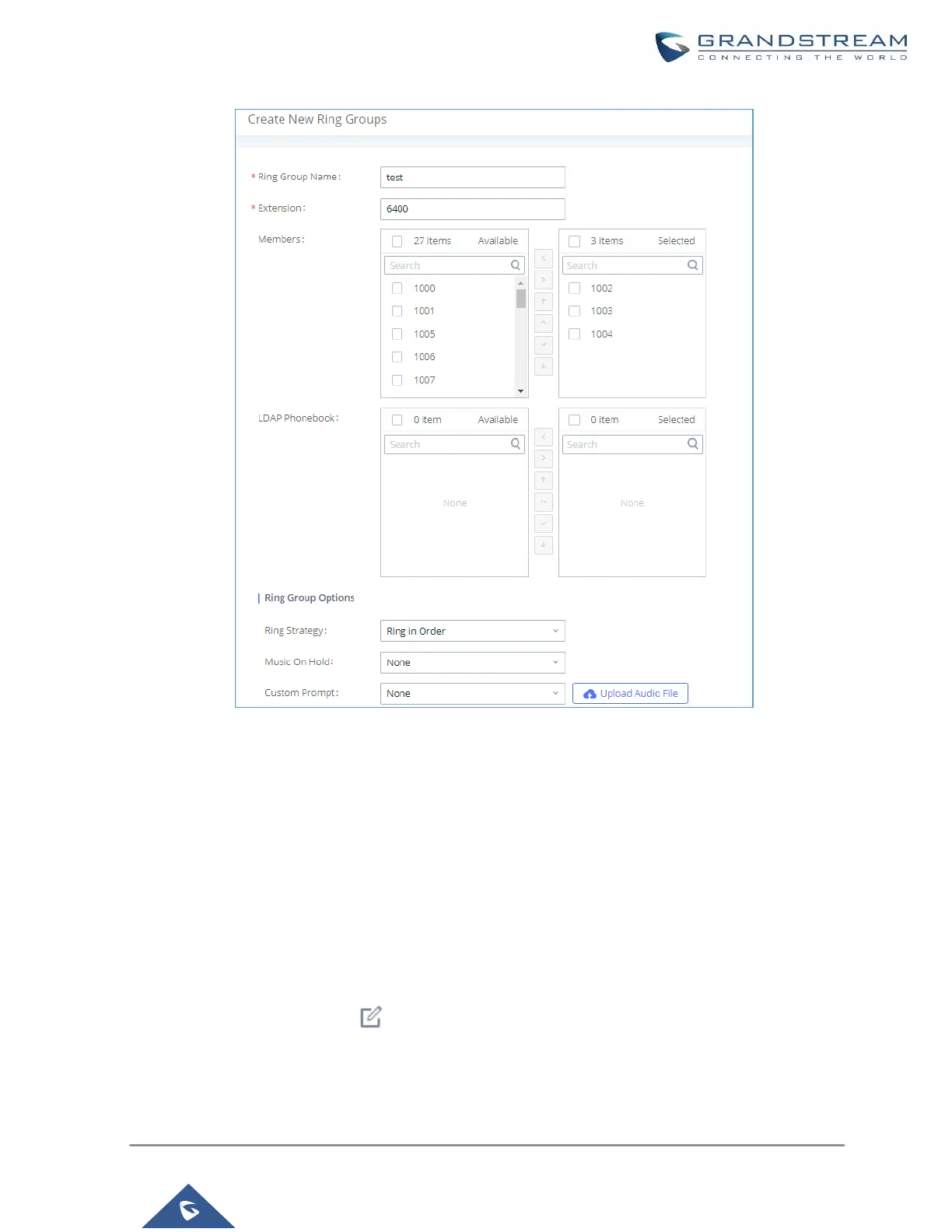

Figure 172: Ring Group Configuration

Remote Extension in Ring Group

Remote extensions from the peer trunk of a remote UCM630X can be included in the ring group with local

extension. An example of Ring Group with peer extensions is presented in the following:

1. Creating SIP Peer Trunk between both UCM630X _A and UCM630X _B. SIP Trunk can be found under

Web GUI→Extension/Trunk→VoIP Trunks. Also, please configure their Inbound/Outbound routes

accordingly.

2. Click edit button in the menu , and check if Sync LDAP Enable is selected, this option will allow

UCM630X_A update remote LDAP server automatically from peer UCM630X _B. In addition, Sync LDAP

Password must match for UCM630X _A and UCM630X _B to sync LDAP contact automatically. Port number
