P a g e | 233

UCM630X Series User Manual

Version 1.0.11.10

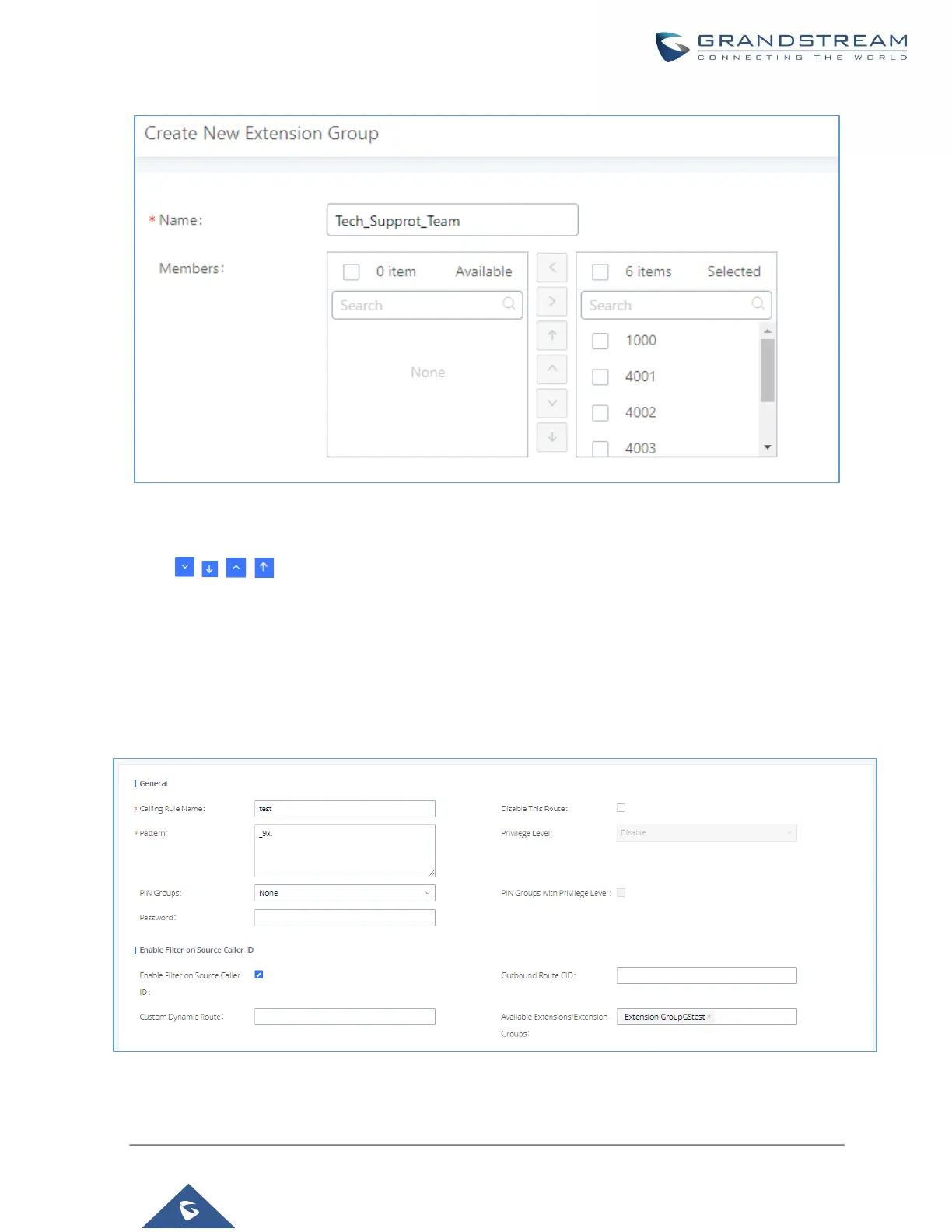

Figure 98: Edit Extension Group

Click on to change the ringing priority of the members selected on the group.

Using Extension Groups

Here is an example where the extension group can be used. Go to Web GUI→Extension/Trunk→Outbound

Routes and select "Enable Filter on Source Caller ID". Both single extensions and extension groups will show

up for users to select.

Figure 99: Select Extension Group in Outbound Route
