P a g e | 490

UCM630X Series User Manual

Version 1.0.11.10

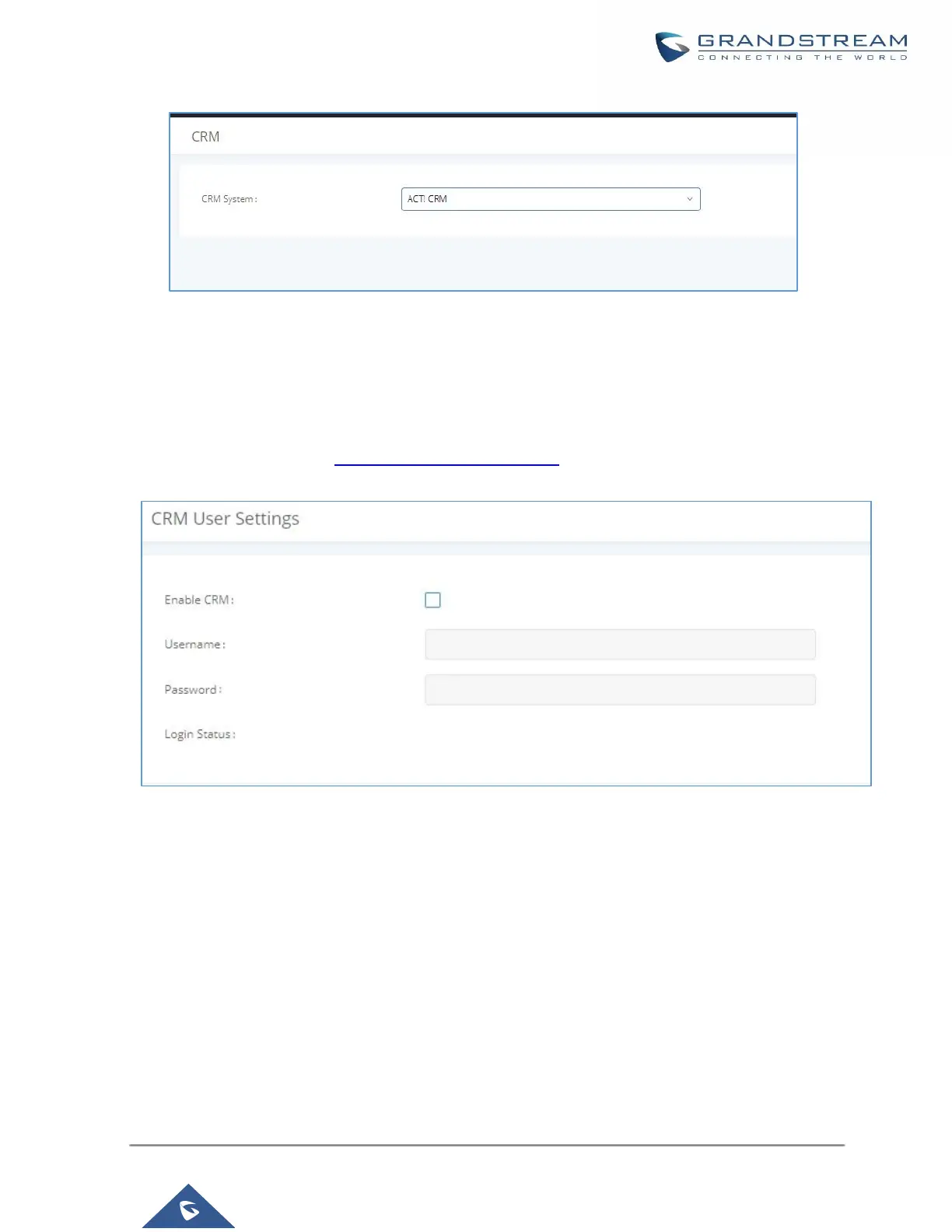

Figure 272: Enabling ACT! CRM

2. Log into the UCM as a regular user and navigate to Value-Added Features→CRM User Settings and

check “Enable CRM” option and enter the username and password, which will be the ACT! CRM

account’s API Key and Developer Key, respectively. To obtain these, please refer to the ACT! CRM API

developer’s guide here: https://mycloud.act.com/act/Help

Figure 273: Enabling CRM on the User Portal

Note: For more information on the ACT! CRM integration, please refer to the ACT! CRM documentation on our

website.
