P a g e | 262

UCM630X Series User Manual

Version 1.0.11.10

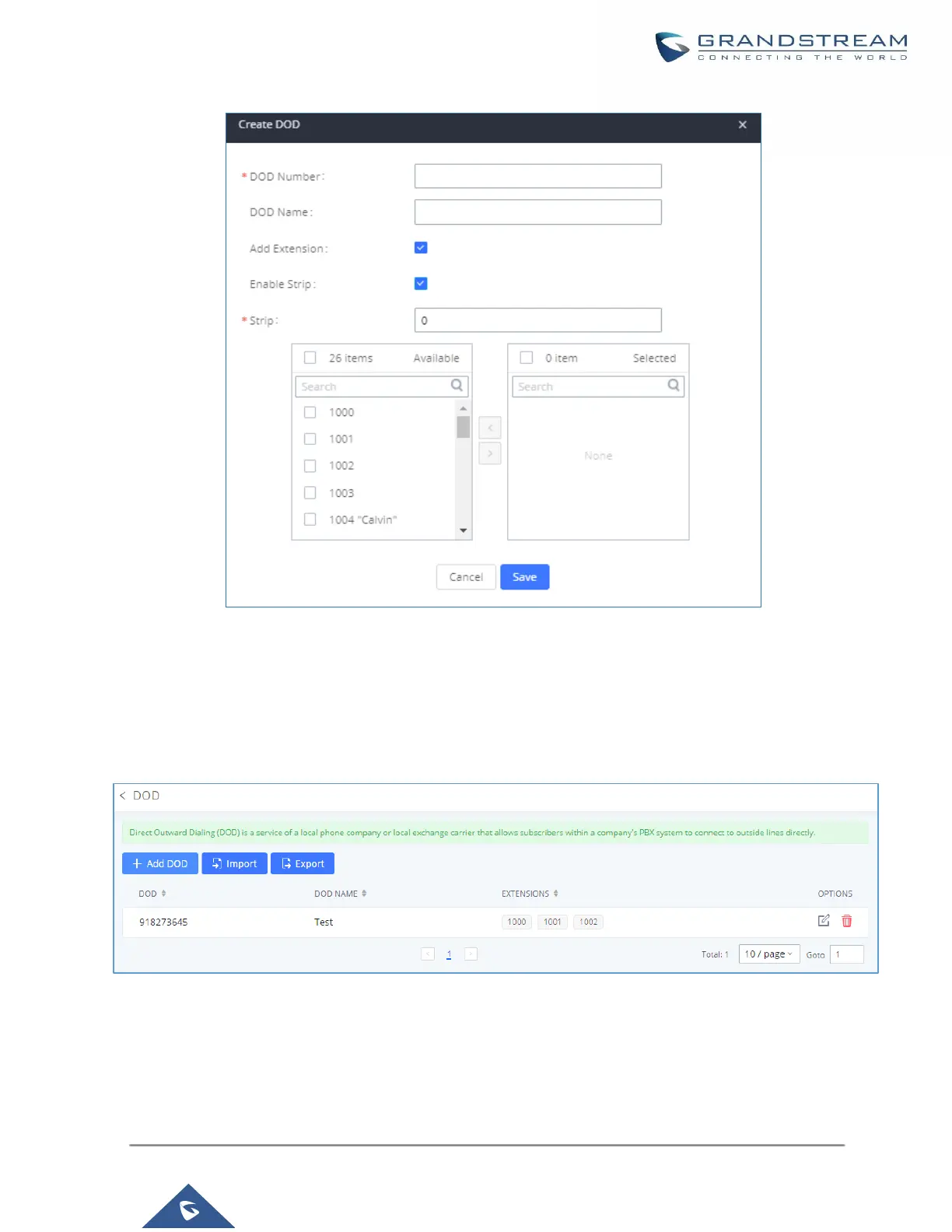

Figure 106: DOD extension selection

7. Click "Save" at the bottom.

Once completed, the user will return to the EDIT DOD page that shows all the extensions that are associated

with a particular DOD.

Figure 107: Edit DOD

Note: Users can import and export DOD files.
