P a g e | 107

UCM630X Series User Manual

Version 1.0.11.10

LDAP Phonebook

Users could use the default phonebook, edit the default phonebook, add new phonebook, import phonebook on

the LDAP server as well as export phonebook from the LDAP server. The first phonebook with default phonebook

dn "ou=pbx,dc=pbx,dc=com" displayed on the LDAP server page is for extensions in this PBX. Users cannot

add or delete contacts directly. The contacts information will need to be modified via Web

GUI→Extension/Trunk→Extensions first. The default LDAP phonebook will then be updated automatically.

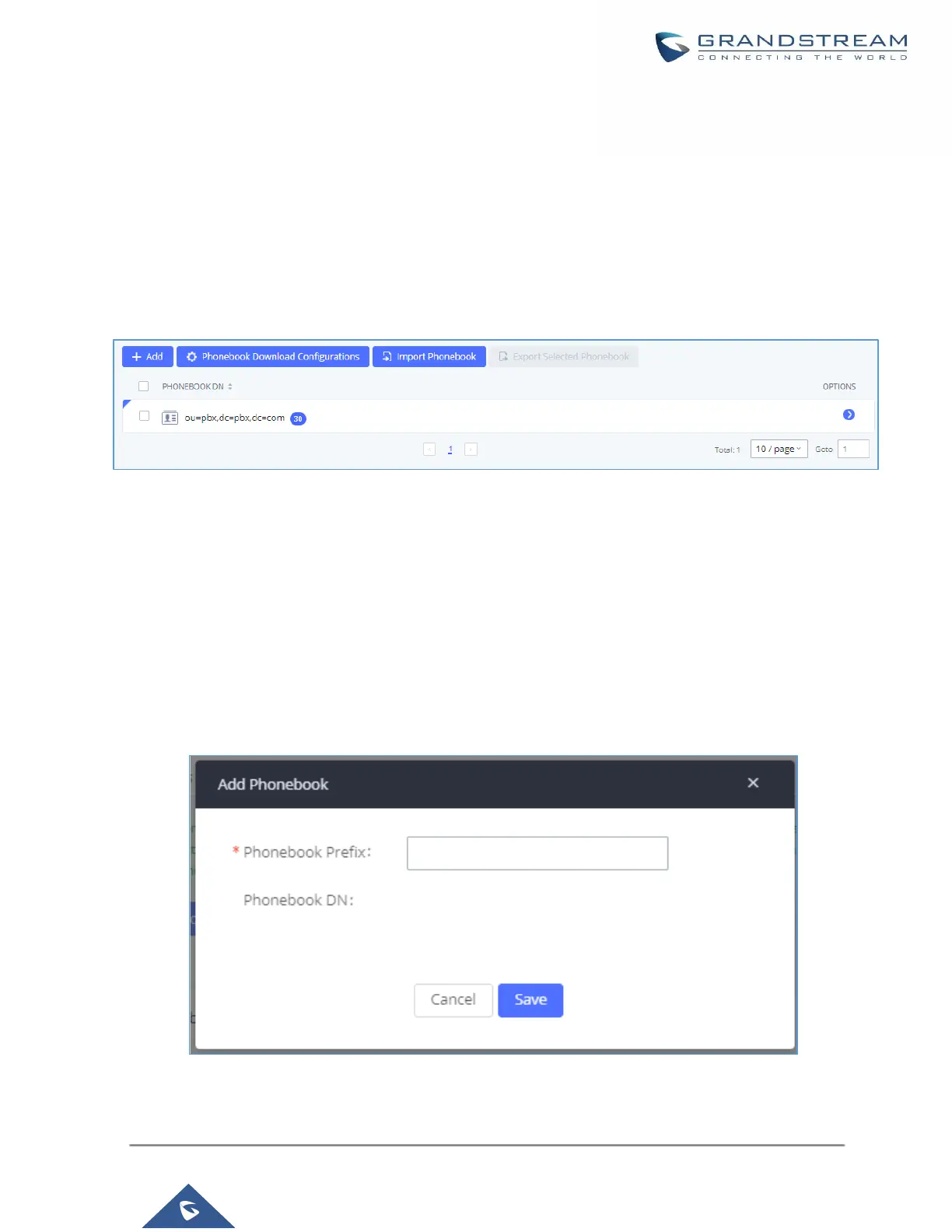

Figure 40: LDAP Server→LDAP Phonebook

• Add new phonebook

A new sibling phonebook of the default PBX phonebook can be added by clicking on "Add" under "LDAP

Phonebook" section.

Figure 41: Add LDAP Phonebook
