P a g e | 569

UCM630X Series User Manual

Version 1.0.11.10

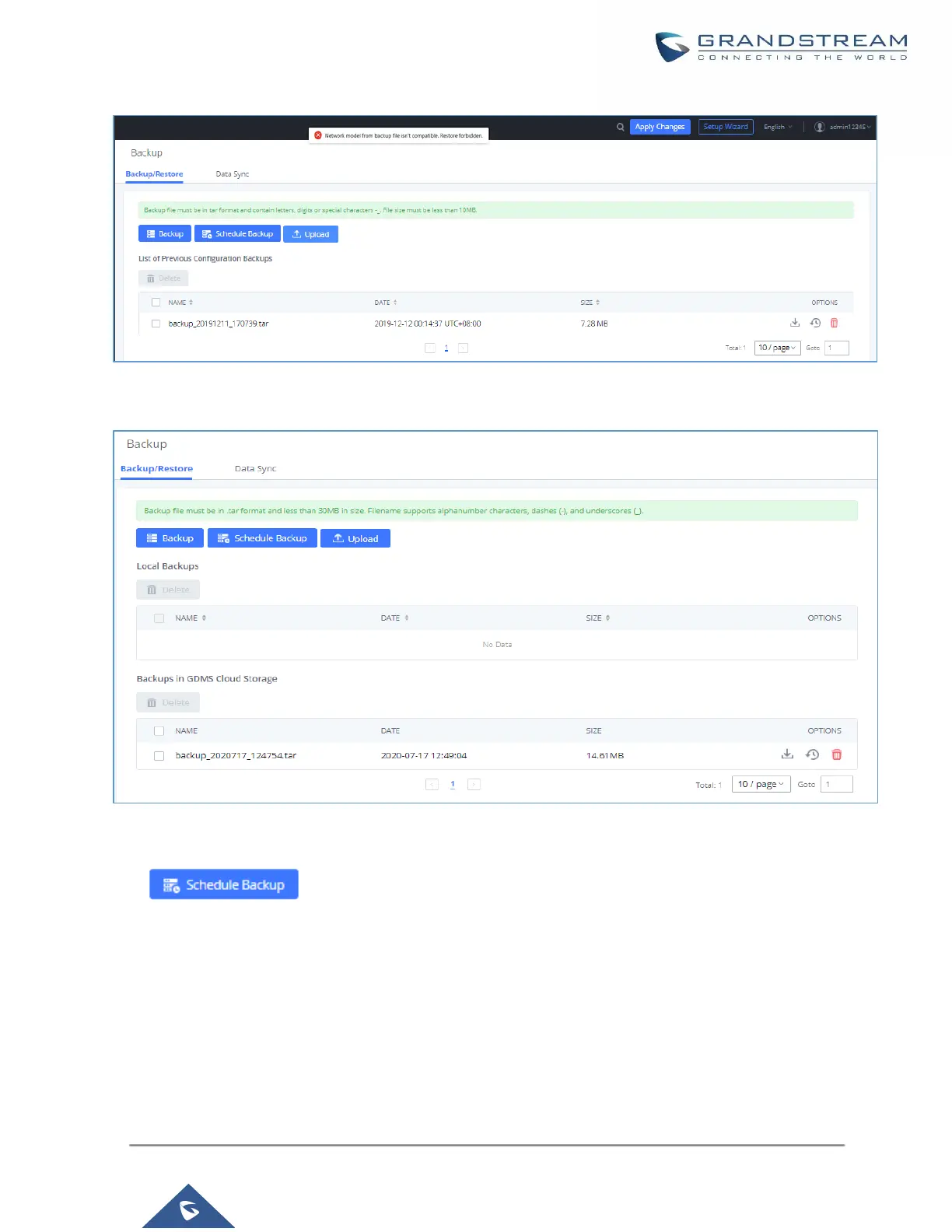

Figure 353: Restore Warning

Figure 354: Backup / Restore

The option allows UCM to perform automatically backup on the user specified time.

Regular backup file can only be stored in USB / SD card / SFTP server. User is allowed to set backup time from

0-23 and how frequent the backup will be performed.
