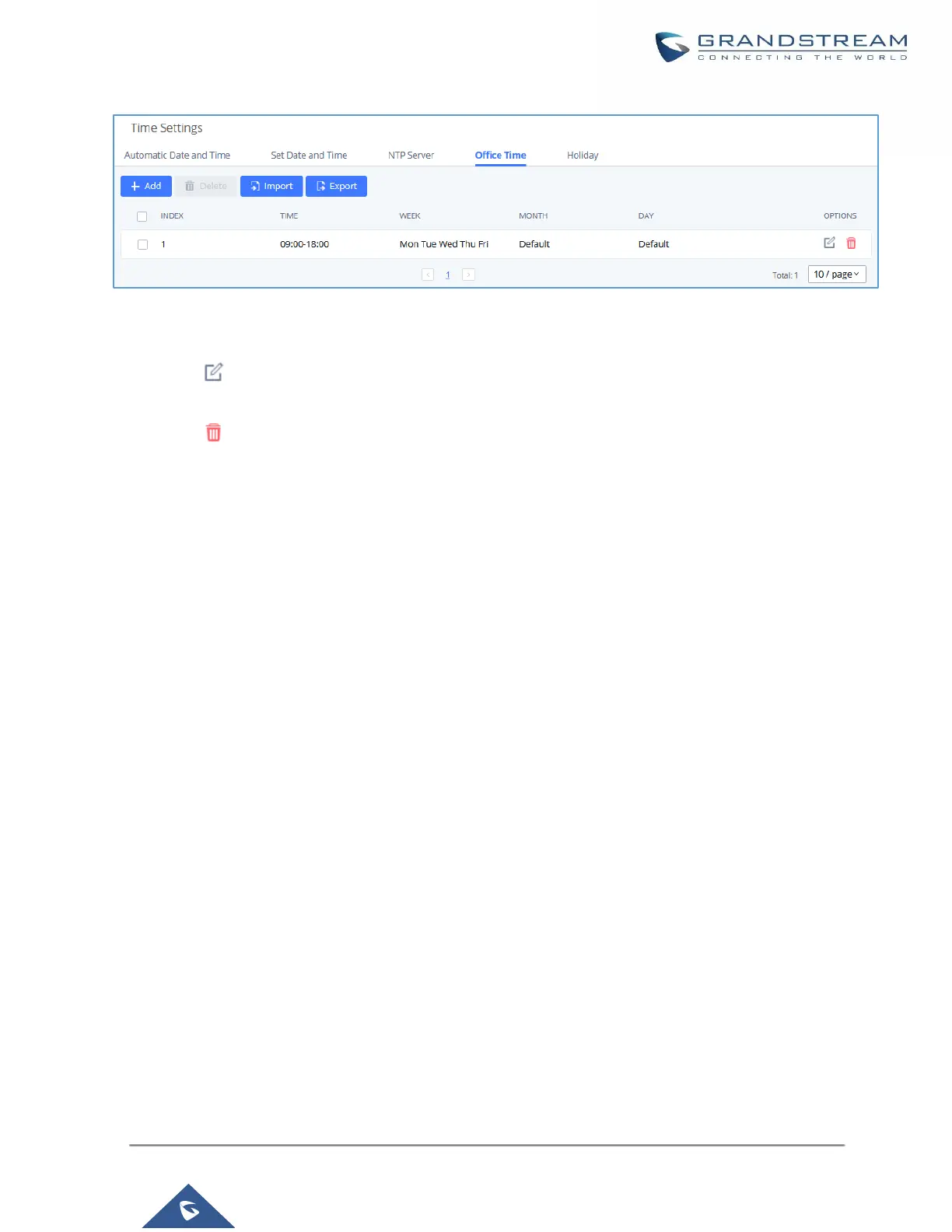

Figure 51: Settings→Time Settings→Office Time

• Click on to edit the office time.

• Click on to delete the office time.

• Click on "Delete" to delete multiple selected office times at once.

Holiday

On UCM, the system administrator can define "holidays" which can be used to configure time condition for

extension call forwarding and inbound rules. To configure office time, log in to the Web GUI, enter the System

Settings→Time Settings→Holiday, and click the "Add" button to see the following configuration page.
